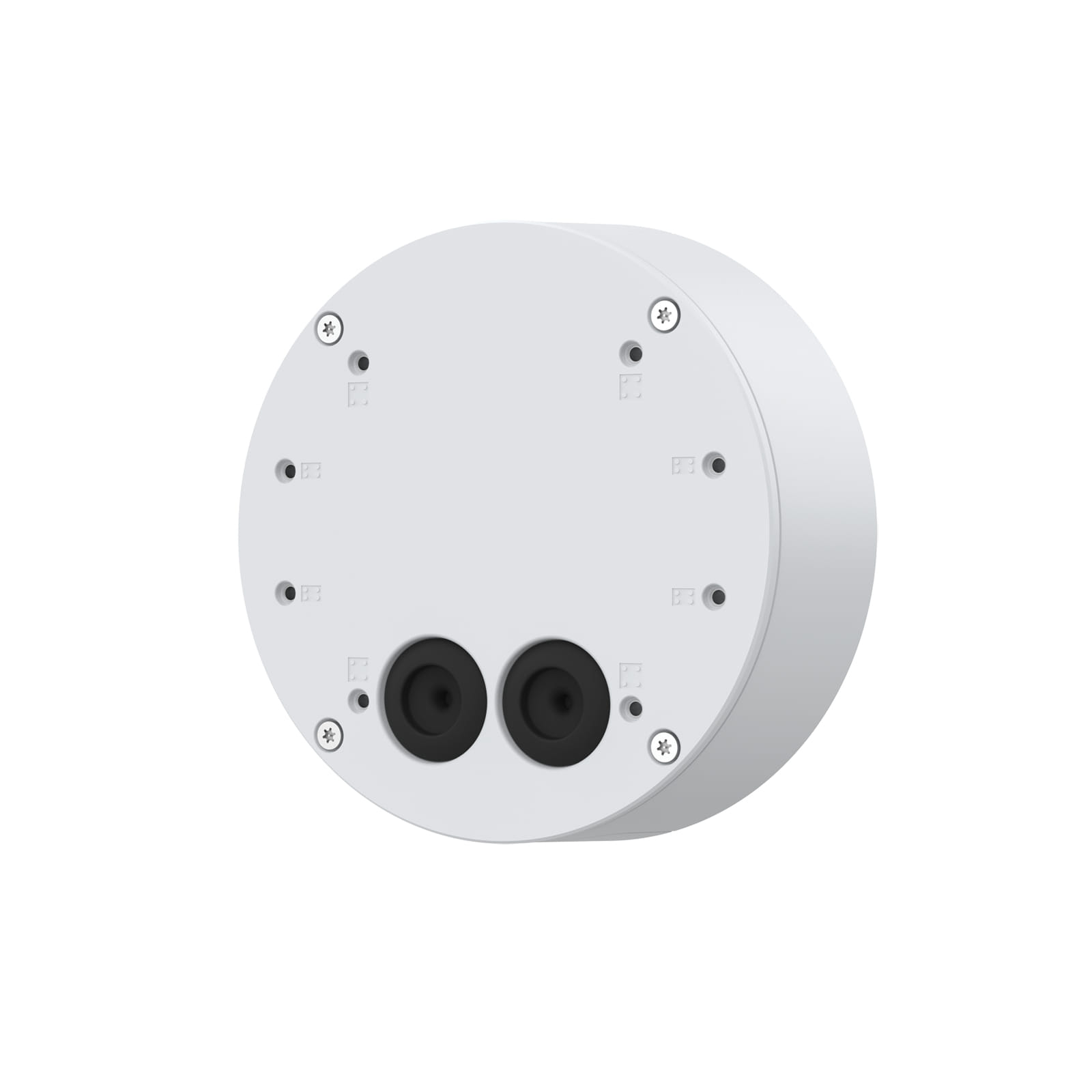

Axis TQ1602-E, Universal, White, Axis, P14 Q17 Q19, Aluminium, IP66
IP66/IP67 rated outdoor back box with conduit entrance
Specifically designed for a several Axis bullet cameras, AXIS TQ1602-E Conduit Back Box is outdoor-ready and impact resistant (IK10+) with an ingress-protected compartment for secure storage of connectivity devices.
AXIS TQ1602-E enables both camera and connectivity device to be safely mounted at the same point, without need for extra cabinet installation (even directly onto junction boxes). The finished installation is specifically designed to be both aesthetically pleasing mounted together with bullet cameras within AXIS Q17/Q19/P14 Camera Series and able to withstand challenging outdoor conditions. It's carefully designed to store for example an IP-over-COAX adapter to re-use legacy cabling or a network cable coupler to bridge between rigid and flexible network cables.
Specifically designed for a several Axis bullet cameras, AXIS TQ1602-E Conduit Back Box is outdoor-ready and impact resistant (IK10+) with an ingress-protected compartment for secure storage of connectivity devices.
AXIS TQ1602-E enables both camera and connectivity device to be safely mounted at the same point, without need for extra cabinet installation (even directly onto junction boxes). The finished installation is specifically designed to be both aesthetically pleasing mounted together with bullet cameras within AXIS Q17/Q19/P14 Camera Series and able to withstand challenging outdoor conditions. It's carefully designed to store for example an IP-over-COAX adapter to re-use legacy cabling or a network cable coupler to bridge between rigid and flexible network cables.
| Features | |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Universal |
| Brand compatibility What other brands this brand can be used with. | Axis |
| Compatibility The other products, software and hardware this product can be used with. | P14 Q17 Q19 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Dust resistant, Water resistant |
| Certification | IEC 60068–2–6, IEC 60068–2–27, IEC/EN 60529 IP66/IP67, NEMA 250 4X IEC/EN 62262 IK10+ |
| Ergonomics | |
| Connecting thread | 3/4" |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 15.7 cm |
| Height The measurement of the product from head to foot or from base to top. | 53.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Doesn't contain | PVC |
| Harmonized System (HS) code | 85299020 |
| SKU | 695189 |
| MPN | 02421-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
