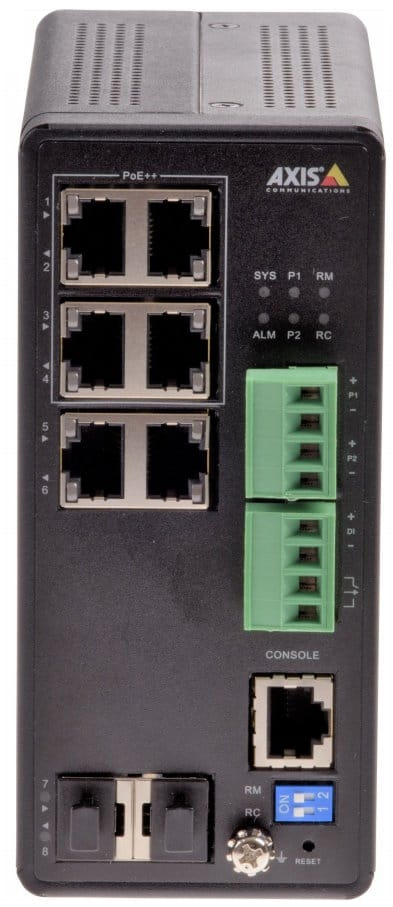

AXIS T8504-R Industrial POE Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	4
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.	SFP
Console port	RJ-45
Power connector	DC-in jack

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1x
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Data transmission
Switching capacity The data transfer capacity of the switch per second.	16 Gbit/s
Throughput	11.9 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	8000 entries
Jumbo frames support
Jumbo frames	9216

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS, SNMP, SNMPv3
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Authentication type Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.	RADIUS

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Housing material What the casing of the product is made of.	Aluminium

Power
DC input voltage	54 - 57 V
Surge protection

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	240 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 75 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	62 mm
Depth The distance from the front to the back of something.	130 mm
Height The measurement of the product from head to foot or from base to top.	135 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	600 g

Packaging content
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Packaging data
Mounting brackets included

Certificates
Certification	EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003

Logistics data
Harmonized System (HS) code	85176990
