Axis 5506-231, 10,100 Mbit/s, 10/100-BaseT(X), Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n), 44 channels, 5 GHz, 2.4 GHz

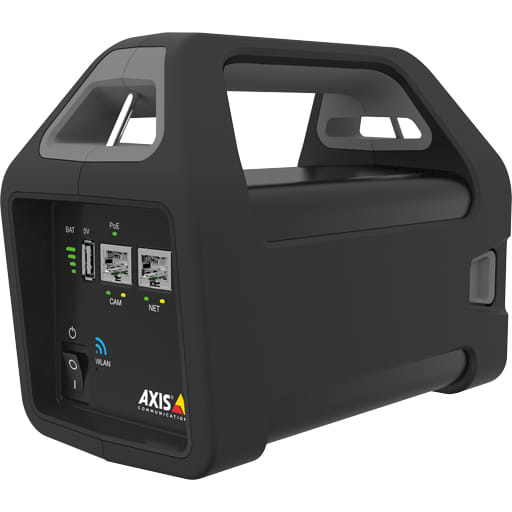

AXIS T8415 Wireless Installation Tool is a battery-powered handheld device that connects directly to a camera and displays live video. With its powerful battery, the tool can power up an Axis PoE camera up to 30 W for hours. The built-in Wi-Fi function in AXIS T8415 connects within seconds to an installer
| Display | |
| Display The description of display that can includes display type, resolution, size etc. |
 |
| Ethernet LAN features | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100-BaseT(X) |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 44 channels |
| Bandwidth (first) | 5 GHz |
| Bandwidth (second) | 2.4 GHz |
| Network | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WPA2-PSK |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | WS - Discovery |
| Ports & interfaces | |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey, Black |
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS) |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android 4.1, Android 4.2, Android 4.3, Android 4.4, Android 5.0, Android 5.1, iOS 7.0, iOS 8.0, iOS 8.2, iOS 9.0 |
| Power | |
| Power source type What the power source is. | Battery, PoE, USB |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 3400 mAh |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 205 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.2 kg |
| Packaging content | |
| AC adapter included |
|
| Carrying straps |
|
| SKU | 809109 |
| MPN | 5506-231 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
