Axis 5901-006, 1000 Mbit/s, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, PoE, Power, White, SFP

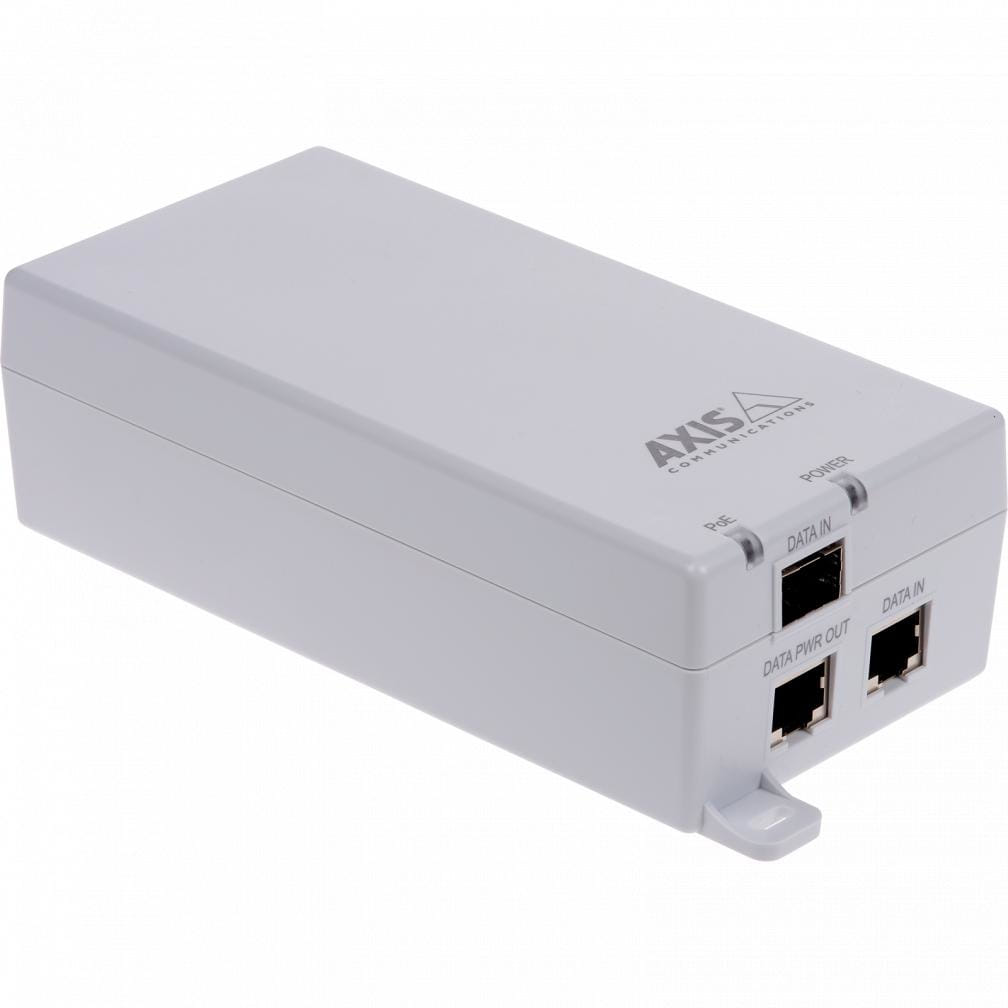

AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Features | |
| Internal The product is built in. |
 |
| LED indicators | PoE, Power |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| DIN rail mounting |
 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 55 V |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Total Power over Ethernet (PoE) budget | 60 W |
| Sustainability | |
| Doesn't contain | PVC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 184 mm |
| Height The measurement of the product from head to foot or from base to top. | 50 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 517 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Quick installation guide |
|
| Other features | |
| Operating temperature (T-T) | 14 - 131 °F |
| SKU | 746891 |
| MPN | 5901-006 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
