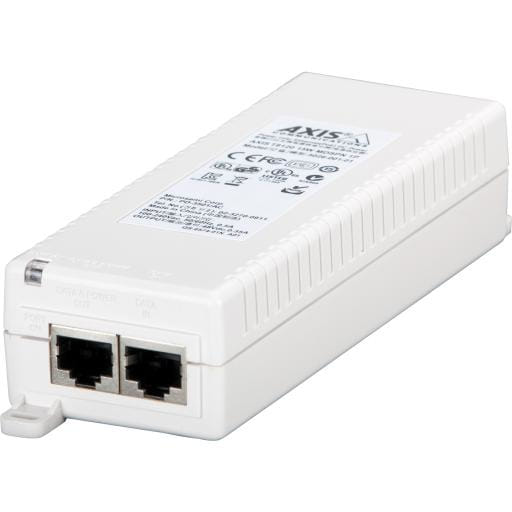

Axis T8120 Midspan, Gigabit Ethernet, Fast Ethernet, 10,1000,100 Mbit/s, IEEE 802.3, IEEE 802.3af, White, 48 V, 100 - 240 V
AXIS T8120 Midspan 15 W 1-port is a compact and flexible solution for your PoE-based network devices. It is compliant with IEEE 802.3af (15W).
The midspan can be installed on a wall, shelf, or DIN rail with an accessory DIN clip.
The midspan can be installed on a wall, shelf, or DIN rail with an accessory DIN clip.
| Network | |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,1000,100 Mbit/s |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3af |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| LED indicators |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 48 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 47 - 63 Hz |
| Input current | 0.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18.9 W |
| Power over Ethernet (PoE) power per port | 15 W |
| Operational conditions | |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 53 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 33 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 450 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 752330 |
| MPN | 5026-206 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
| Stock Availability | Available for Shipping |
