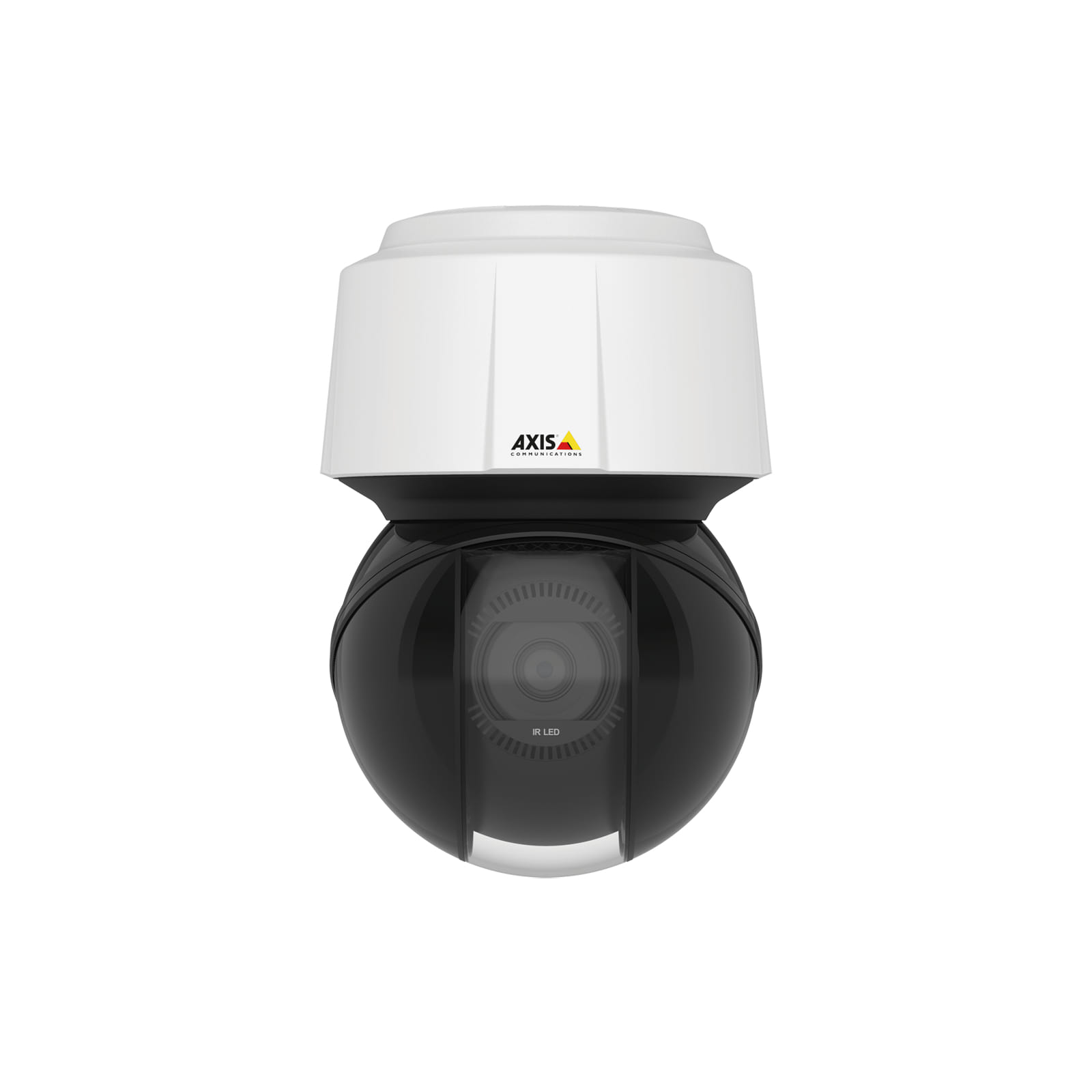

Axis Q6135-LE, IP security camera, Outdoor, Wired, Ceiling/wall, White, IP66
AXIS Q6135-LE is a high-speed PTZ camera that offers OptimizedIR up to 250 m (820 ft) as well as Lightfinder 2.0 for clear, sharp overviews and excellent details in demanding light conditions. It s ideal for city surveillance in any unlit or low-light area " such as parks and alleys " eliminating the need for additional lighting.
See it all " anytime, anywhere
AXIS Q6135-LE is equipped with OptimizedIR with automatically adaptable IR LED illumination enabling surveillance in total darkness up to 250 m (820 ft) or more depending on the scene. Thanks to the sharpdome design it allows you to see 20 Deg above the horizon with the same sharp image quality as below. It offers 32x optical zoom, superior video and excellent details in HDTV 1080p resolution. Featuring Lightfinder 2.0 this camera captures low-light images with more saturated colors and sharper images of moving objects. Furthermore, speed dry ensures clarity in rainy weather and supports efficient cleaning.
See it all " anytime, anywhere
AXIS Q6135-LE is equipped with OptimizedIR with automatically adaptable IR LED illumination enabling surveillance in total darkness up to 250 m (820 ft) or more depending on the scene. Thanks to the sharpdome design it allows you to see 20 Deg above the horizon with the same sharp image quality as below. It offers 32x optical zoom, superior video and excellent details in HDTV 1080p resolution. Featuring Lightfinder 2.0 this camera captures low-light images with more saturated colors and sharper images of moving objects. Furthermore, speed dry ensures clarity in rainy weather and supports efficient cleaning.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Preset points |
|
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Design | |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| IK code | IK08, IK10 |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 58.3° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 34.9° |
| Tilt angle range | -90 - 20° |
| Tilt speed | 500 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 700 °/sec |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/66500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 32x |
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 12x |
| Number of lenses The number of lenses installed in the device. | 1 |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Maximum aperture number | 1.4 |
| Minimum aperture number The minimum size of the hole through which light enters a camera. | 4 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.3 - 137.6 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Video compression formats | AVC,H.264,H.265,HEVC,M-JPEG,MPEG4 |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Audio | |
| Audio system System used to play music or speech. | 2-way |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x,IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Syslog |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Power | |
| Power source type What the power source is. | AC, PoE |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 13.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 25 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 241 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 16.5 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 497225 |
| MPN | 01958-006 |
| Brand | Axis |
