Axis Q6100-E, IP security camera, Indoor & outdoor, Wired, EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN..., Wall, Black, White

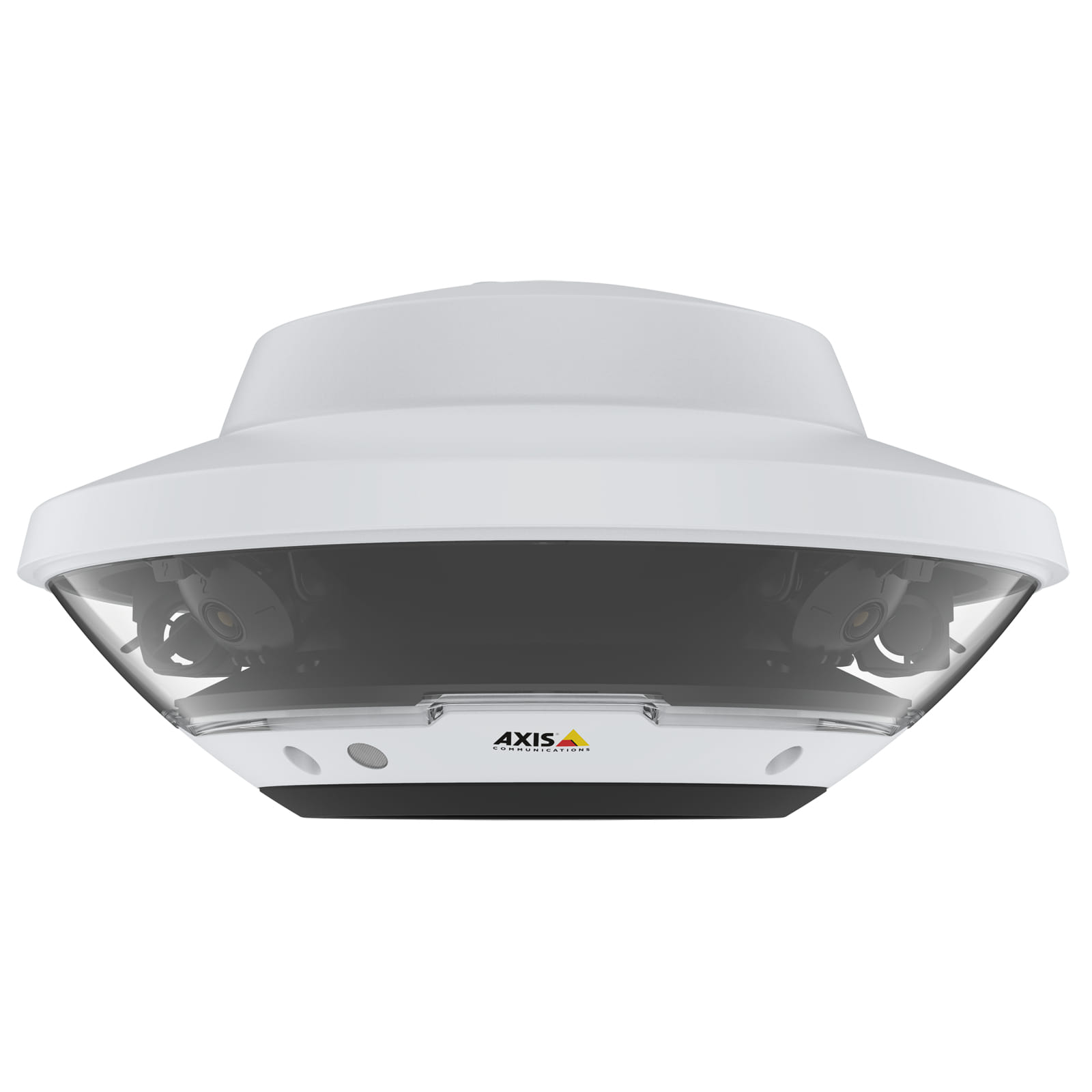

AXIS Q6100-E Network Camera
AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360 Deg overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares.
Total situational awareness- 24/7
Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.
Great images to cover your areas of interest
AXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Easy, cost-efficient installation
Using the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.
AXIS Q6100-E Network Camera is a multidirectional camera offering 20 MP resolution and 360 Deg overview for total situational awareness. Designed for operation with any AXIS Q61 PTZ Network Camera, it captures high resolution overviews and details in one complete camera solution. It's ideal for city surveillance applications, for instance at street crossings or squares.
Total situational awareness- 24/7
Do you want to monitor one cohesive video stream with the possibility to zoom in for detailed views in just one click? AXIS Q6100-E is specially designed for operation with any AXIS Q61 Series camera. It offers one-click PTZ control allowing you to move from great overviews to zoomed-in detailed views in just one mouse click. It includes directional audio detection which redirects the PTZ camera to the audio source whenever an audio incident is detected. Furthermore, it offers autopilot for automatic PTZ tracking. When motion is detected in one of the four 5 MP sensors, the connected AXIS Q61 PTZ Network Camera will automatically track the object within the viewing area.
Great images to cover your areas of interest
AXIS Q6100-E features four 5 MP sensors with a total of 20 MP resolution both day and night. This multidirectional camera also offers exchangeable lenses on each of the four sensors so you can easily change lens to ensure you capture the images you need. And, thanks to corridor format it delivers vertically oriented video streams that maximize coverage of areas such as along alleys and long streets. Furthermore, Axis Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Easy, cost-efficient installation
Using the same bracket, power supply and network cable as the connected AXIS Q61 PTZ Network Camera, there's no extra equipment required for AXIS Q6100-E. Additionally, with autofocus and positioning calibration you get maximum flexibility and accurate configuration which saves time during setup. Just add the PTZ camera and you're ready to capture great overviews and details in one complete camera solution.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Preset points |
|
| Wide Dynamic Range (WDR) |
|
| Infrared (IR) cut-off filter |
|
| Certification | EAC, EN 55032 Class A, EN 55035, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 60950-22, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267 |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| IK code | IK10 |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.003 lx |
| Field of view (FOV) angle | 360° |
| Lens viewing angle, vertical | 84° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/32500 - 1/20 s |
| Image sensor | |
| Number of sensors | 4 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2592 x 1944 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 20 MP |
| Video compression formats | AVC, H.264, H.265, HEVC, MPEG4 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 320 x 240, 2592 x 1944 |
| Frame rate | 20 fps |
| Video streaming |
|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
|
| Text caption overlay |
|
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio detection |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1, Syslog |
| Streaming method | Multicast |
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Video motion detection |
|
| Active tampering alarm |
|
| Alert notification type |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (max) The maximum amount of power used by the device. | 23 W |
| Power consumption (Power over Ethernet (PoE)) | 9 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -50 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 361 mm |
| Depth The distance from the front to the back of something. | 361 mm |
| Height The measurement of the product from head to foot or from base to top. | 192 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4 kg |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 702227 |
| MPN | 01710-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.axis.com/ |
