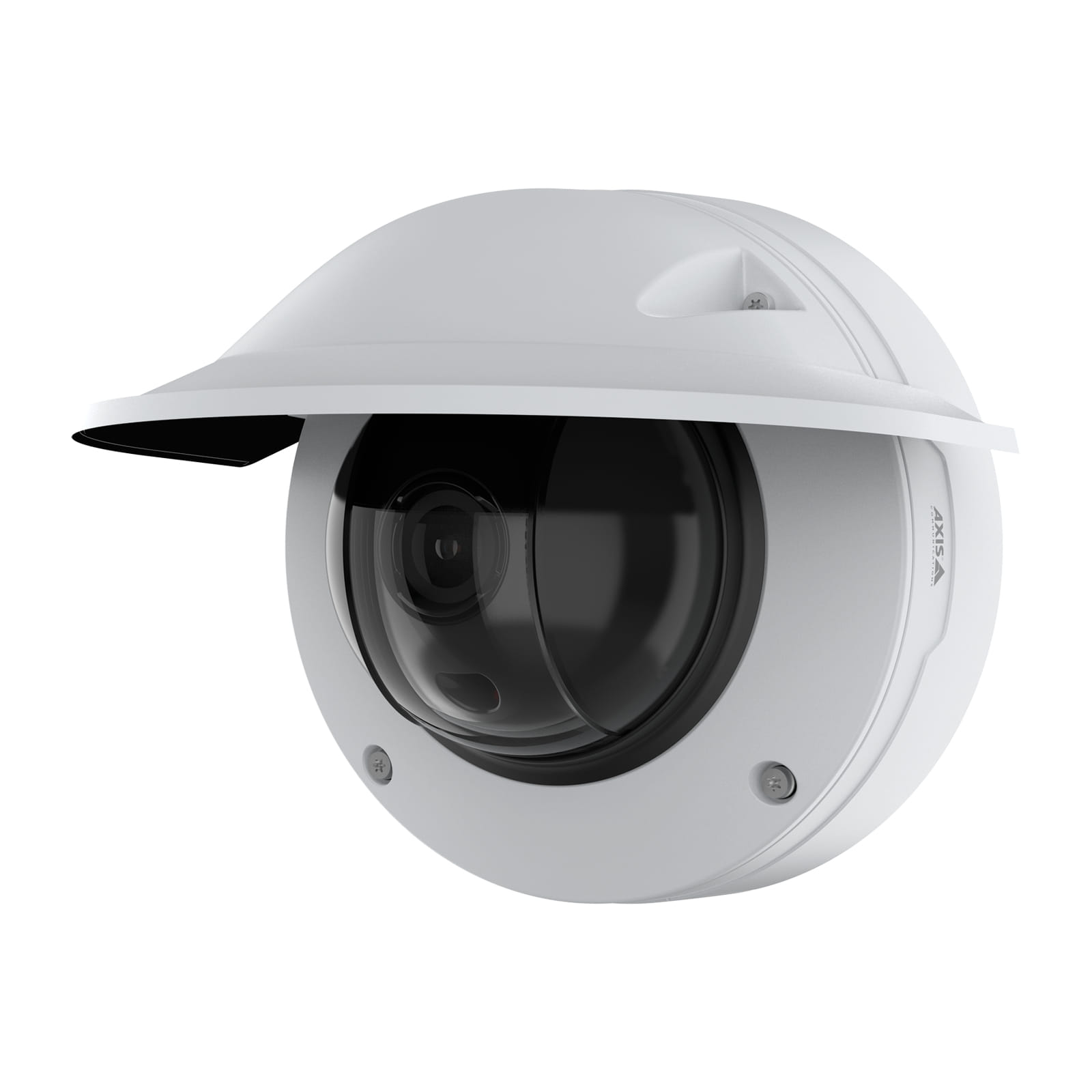

AXIS Q3538-LVE IP Security Dome Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Number of languages	12
Languages support The product has support (help) for languages.	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Certification	CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Ceiling/wall
Product colour The colour e.g. red, blue, green, black, white.	White
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66
IK code	IK10+
Weatherproof

Camera
Camera pan control
Camera tilt control
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.07 lx
Tilt angle range	-43 - 80°
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/66500 - 2 s

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 1.2 mm (1 / 1.2")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Number of lenses The number of lenses installed in the device.	1
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	6.2 - 12.9 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
LED type	IR

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	3840 x 2160 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	8 MP
Video formats supported The type of video formats that can be used by this device.	H.264, H.265
Video recording Recording moving visual images.
Frame rate	60 fps
Video streaming
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking

Audio
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC-LC, G.711, G.726, OPUS
Built-in microphone Microphone that is found inside the product.
Audio detection

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3at
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Quality of Service (QoS) support

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8194 MB
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	2048 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Security
Active tampering alarm
IP address filtering
HTTPS encryption
Alert notification type	E-mail
Pixel counter
Human and vehicle targets classification

Power
Power source type What the power source is.	PoE
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	9 W
Power consumption (max) The maximum amount of power used by the device.	23 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-50 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Height The measurement of the product from head to foot or from base to top.	124 mm
Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.	18.3 cm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	2.1 kg

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Mounting kit
Mounting brackets included
Drilling template included
Manual
