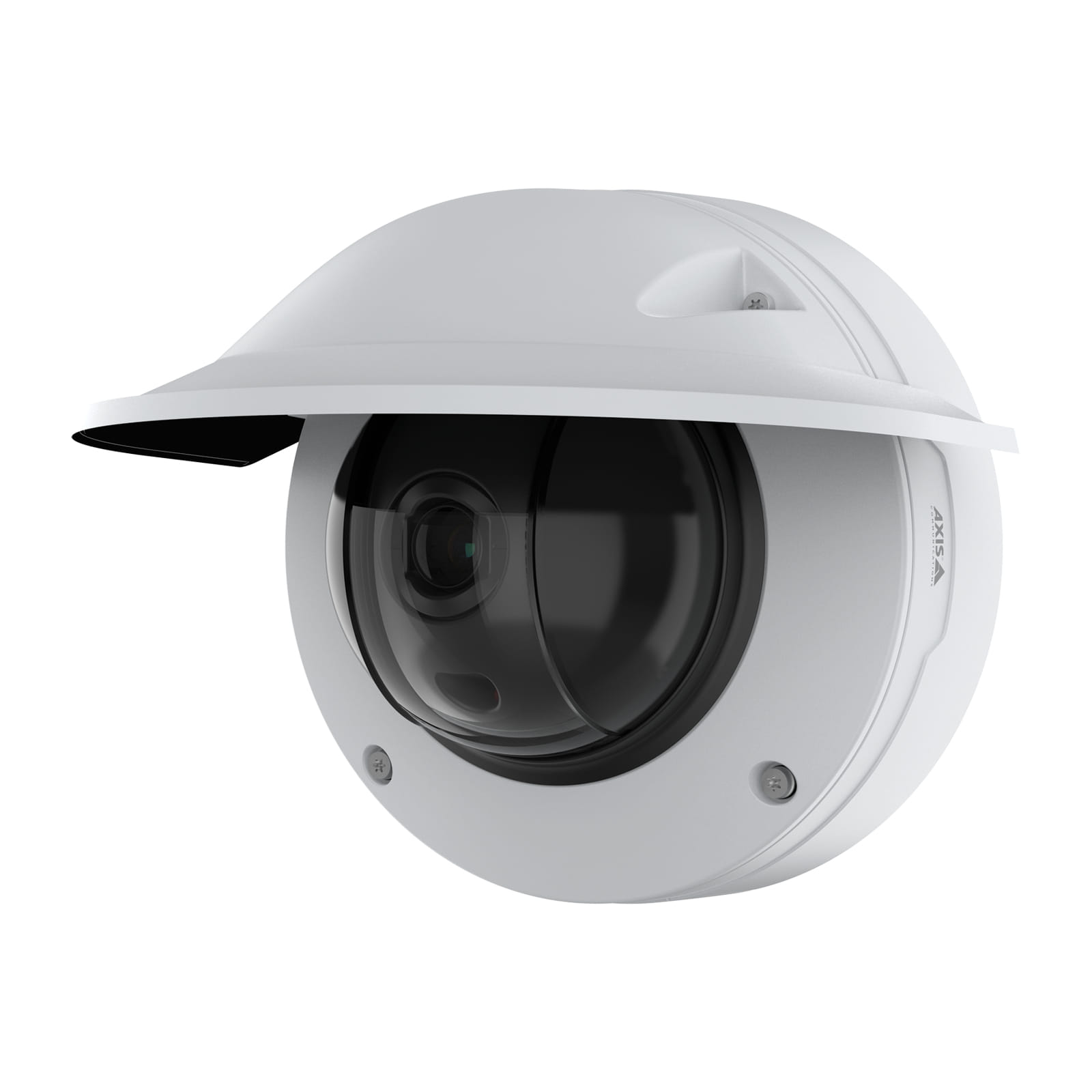

Axis Q3536 LVE 29 mm, IP security camera, Indoor & outdoor, Wired, Digital PTZ, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,..., CISPR 35, EN 50121 4, EN 55032 Class A, EN 55035, EN 61000 3 2, EN 61000 3 3, EN 61000 6 1, EN...
Built on ARTPEC 8, AXIS Q3536 LVE offers advanced features and powerful applications based on deep learning. This robust camera can withstand the harshest weather conditions and the most powerful impacts.
Outstanding image quality
AXIS Q3536 LVE offers outstanding image quality and forensic details in 4 MP resolution "even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations.
Powerful analytics capabilities
Built on ARTPEC 8, this high performance camera offers advanced analytics based on deep learning on the edge. Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before " on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles "all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor made applications based on deep learning on the edge available from Axis and our partners.
Robust and secure "inside and out
Enclosed in a metal casing, this robust, IK10 rated outdoor ready camera is protected against redirection, defocusing, and impacts. It can withstand temperatures as low as 50 DegC and as high as 60 DegC ( 58 F to 140 F). Including sensors for intrusion and shock detection it s also packed with built in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system. This top of the line camera offers easy installation, maintenance, and operation as well as flexible cable management. It includes a built in gyro sensor enabling leveling assistant and auto rotation. Furthermore, if there s a power outage, redundant power helps ensure a reliable power supply to safeguard the system.
Outstanding image quality
AXIS Q3536 LVE offers outstanding image quality and forensic details in 4 MP resolution "even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations.
Powerful analytics capabilities
Built on ARTPEC 8, this high performance camera offers advanced analytics based on deep learning on the edge. Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before " on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles "all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor made applications based on deep learning on the edge available from Axis and our partners.
Robust and secure "inside and out
Enclosed in a metal casing, this robust, IK10 rated outdoor ready camera is protected against redirection, defocusing, and impacts. It can withstand temperatures as low as 50 DegC and as high as 60 DegC ( 58 F to 140 F). Including sensors for intrusion and shock detection it s also packed with built in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system. This top of the line camera offers easy installation, maintenance, and operation as well as flexible cable management. It includes a built in gyro sensor enabling leveling assistant and auto rotation. Furthermore, if there s a power outage, redundant power helps ensure a reliable power supply to safeguard the system.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Number of languages | 12 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| IK code | IK10+ |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.08 lx |
| Angle of rotation | 175° |
| Tilt angle range | -43 - 80° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/91000 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 2.6x |
| Number of lenses The number of lenses installed in the device. | 1 |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2688 x 1512 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video compression formats | H.264, H.265 |
| Video recording Recording moving visual images. |
|
| Frame rate | 60 fps |
| Video streaming |
|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
|
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Built-in microphone Microphone that is found inside the product. |
|
| Audio detection |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3at |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8194 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Active tampering alarm |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS |
| HTTPS encryption |
|
| Alert notification type | |
| Pixel counter |
|
| Digest authentication |
|
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 9 W |
| Power consumption (max) The maximum amount of power used by the device. | 23 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -50 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 18.4 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.1 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting kit |
|
| Mounting brackets included |
|
| Drilling template included |
|
| Manual |
|
| SKU | 713243 |
| MPN | 02224-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.axis.com/ |
