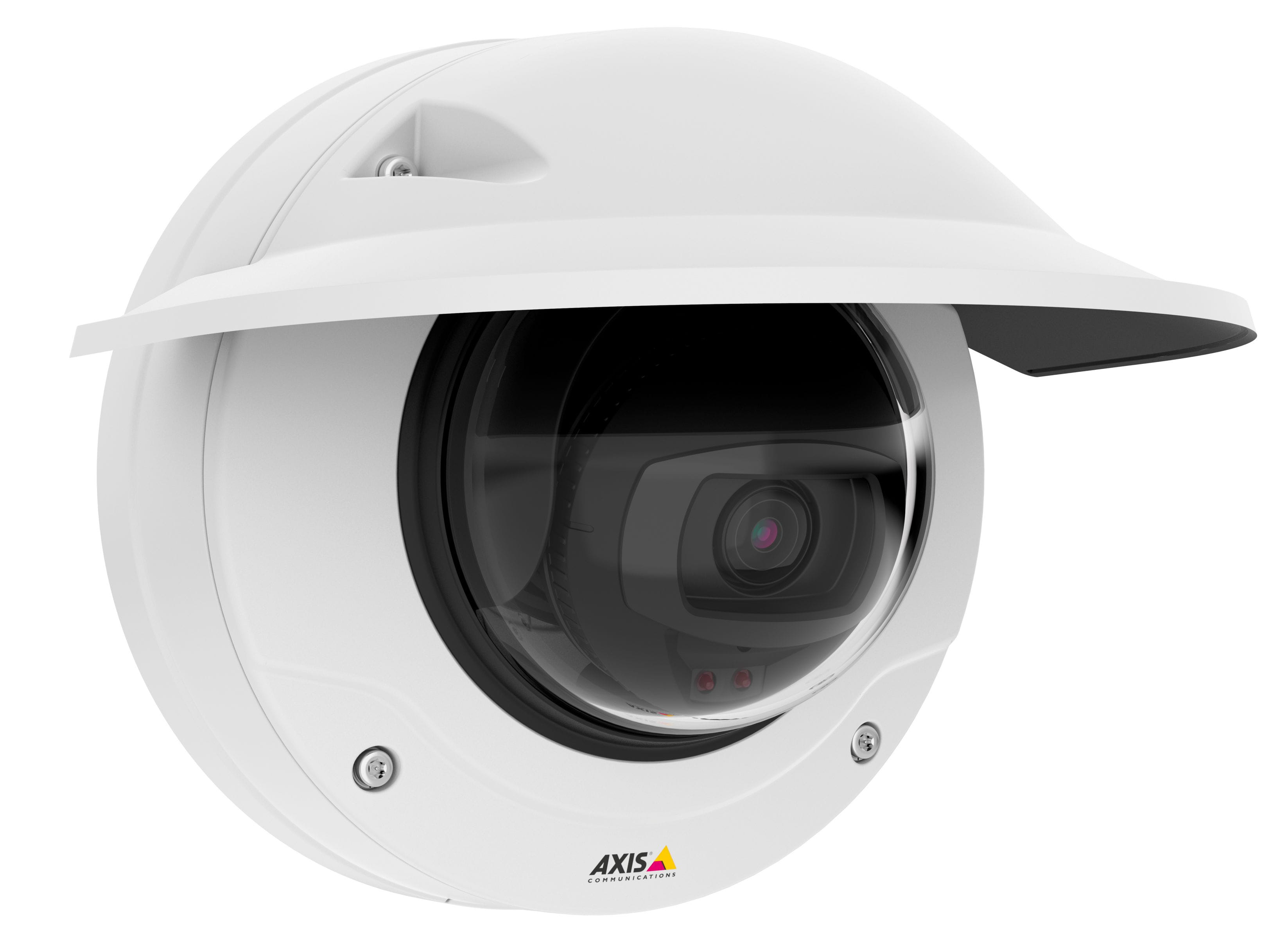

Axis Q3515-LVE 2.1MP 9mm Network Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
Wide Dynamic Range (WDR)
Day/night mode
Number of languages	11
Languages support The product has support (help) for languages.	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Certification	CEM EN 55032 A, EN 50121-4, IEC 62236-4, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15, B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN32 A, KN35, IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC/EN 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NEMA 250 Type 4X, IEC/E N 62262 IK10+ (50J), ISO 20653 IP6K9K, IEC/EN 60529 IP66/67

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Ceiling
Product colour The colour e.g. red, blue, green, black, white.	White
Protection features Physical effects from which the product is protected e.g. water resistant, crash proof.	Shock resistant
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP67
IK code	IK10

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.02 lx
Angle of rotation	175°
Lens viewing angle, horizontal	105°
Lens viewing angle, vertical	57°
Tilt angle range	-45 - 45°
Pan range	-180 - 180°
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/66500 - 2 s

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.8 mm (1 / 2.8")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.	3x
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	2x
Maximum aperture number	1.3
Fixed focal length	9 mm

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1080 pixels
Video compression formats	AVC, H.264, M-JPEG
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	160 x 90, 1920 x 1080 (HD 1080)
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking

Audio
Voice codecs	G.711, G.726

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af, IEEE 802.3at
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Quality of Service (QoS) support

Storage
Built-in HDD The product has a hard drive built into it.
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	512 MB
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB

Ports & interfaces
Microphone in The socket where a microphone is connected to the device.

Security
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
IP address filtering

Management features
Web-based management Using a website/web application to manage something.

Power
Power source type What the power source is.	PoE
Power consumption (max) The maximum amount of power used by the device.	14.5 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-50 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%

Weight & dimensions
Height The measurement of the product from head to foot or from base to top.	182 mm
Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body.	18.3 cm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	2 kg

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Mounting kit

Logistics data
Harmonized System (HS) code	85258900
