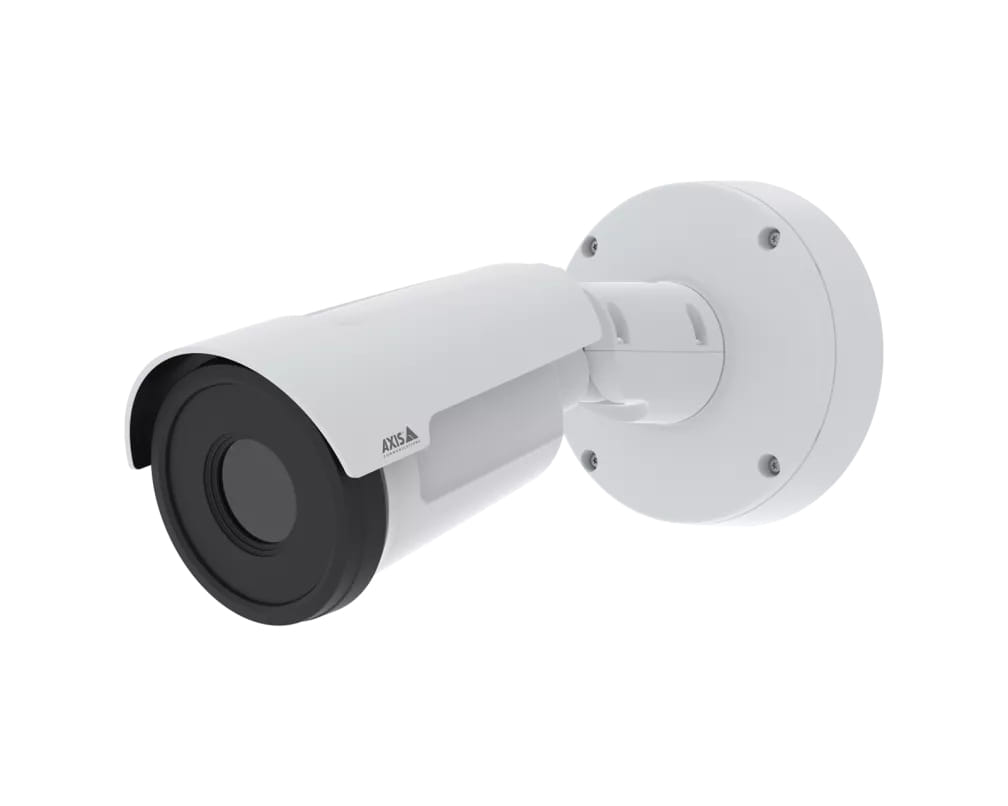

AXIS Q1971-E 19 mm 30 FPS Thermal Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
Thermal module

Design
Form factor The shape or design of the product.	Bullet
Mounting type Type of mounting e.g. wall mounting.	Wall
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Housing material What the casing of the product is made of.	Aluminium, Polycarbonate (PC)
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66, IP67
IK code	IK10

Camera
Lens viewing angle, horizontal	19°
Lens viewing angle, vertical	15°
Camera pixel size	17 µm

Image sensor
Number of sensors	1
Effective sensor resolution (thermal module)	384 x 288 pixels
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	Microbolometer

Lens system
Number of lenses The number of lenses installed in the device.	1
Lens diameter The size of the lens, measured by drawing a straight line from one side to the other, going through the centre of the lens.	1.9 cm
Maximum aperture number	1.24
Closest focusing distance	8.3 m

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	768 x 576 pixels
Video formats supported The type of video formats that can be used by this device.	AVC, H.264, H.265, HEVC, M-JPEG
Frame rate	30 fps
Video streaming
Gain control type	Auto
Image quality adjustment	Brightness, Contrast, Sharpness
Flip & mirror
Text caption overlay
Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions.
Bit rate control	Variable Bit Rate (VBR)

Audio
Audio system System used to play music or speech.	2-way
Audio system full duplex
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio detection

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Streaming method	Multicast

Storage
Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
RAM capacity	2048 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Microphone in The socket where a microphone is connected to the device.
Terminal block port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Security
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Video motion detection
Active tampering alarm
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	EAP-TLS, HTTPS, MSCHAPv2
Alert notification type	E-mail
Privacy protection
Pixel counter
Digest authentication

Management features
Cloud-managed

Power
Power source type What the power source is.	DC, PoE
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	3.6 W
Power consumption (max) The maximum amount of power used by the device.	12.95 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-40 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	132 mm
Depth The distance from the front to the back of something.	272 mm
Height The measurement of the product from head to foot or from base to top.	132 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.4 kg

Packaging content
Number of cameras The quantity of cameras that product can support.	1

Other features
Doesn't contain	CFR, Halogen, PVC/BFR
