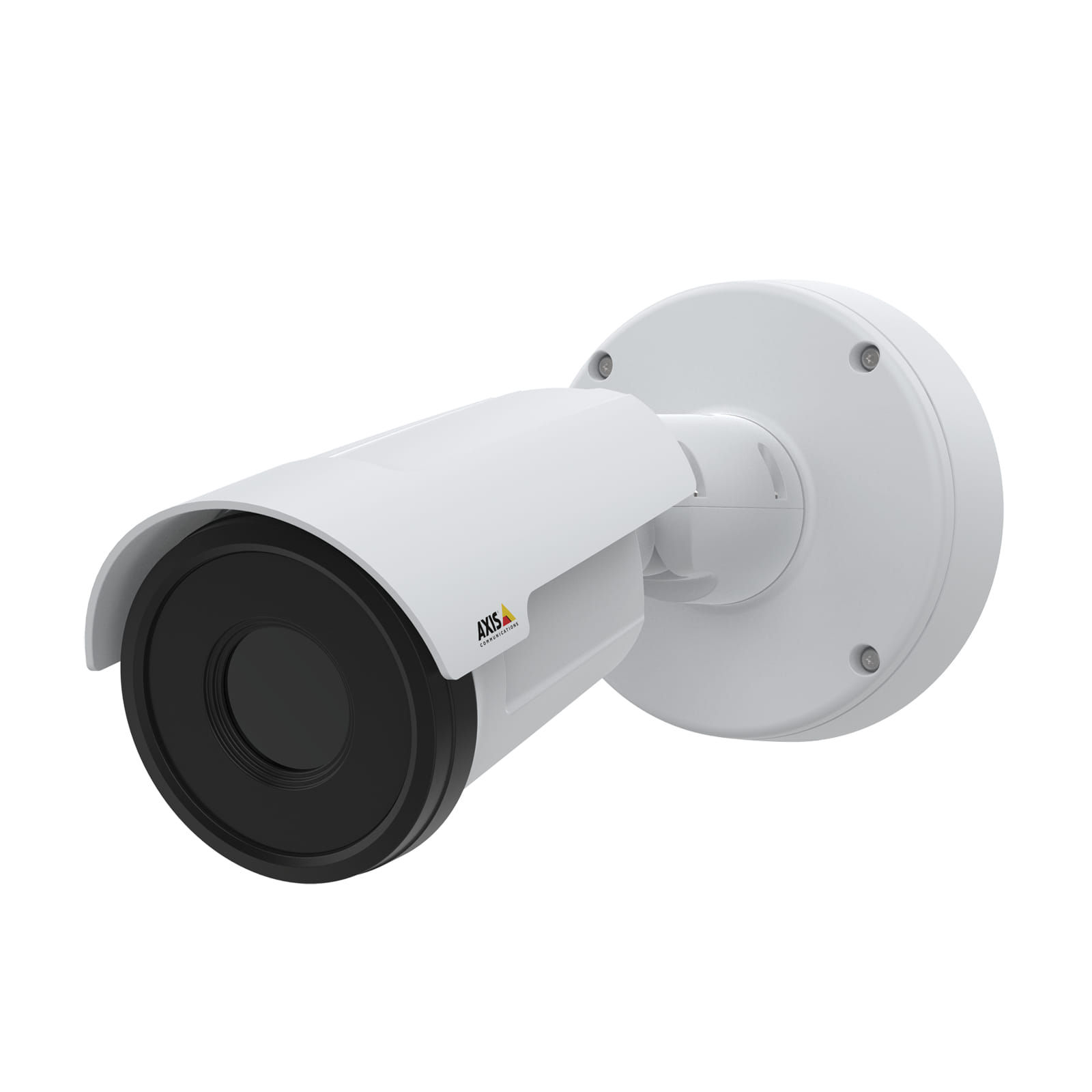

AXIS Q1951-E 35mm 30 fps Outdoor Thermal Camera
Item No:
720005
MPN:
02156-001
$6,954.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Axis Q1951 E, IP security camera, Indoor & outdoor, Wired, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,..., CISPR 24, CISPR 35, EN 50121 4, EN 55024, EN 55032 Class A, EN 55035, EN 61000 6 1, EN 61000 6 2,..., Ceiling/wall
OVERVIEW
Using thermal technology, AXIS Q1951 E offers reliable detection and verification. This compact, robust, halogen free camera is built on a powerful analytics platform so it s easy to add custom made third party analytics. Plus, you can buy AXIS Perimeter Defender with AI based functionality for object classification that allows you to detect and classify humans and vehicles.
Reliable detection always
AXIS Q1951 E delivers a high quality thermal video stream 24/7, in all weather, and any light conditions. Ideal for perimeter security and long range detection, it captures events taking place at great distances. With four lens alternatives (7 mm, 13mm, 19 mm and 35 mm), the network camera can optimize detection performance to meet most application requirements. Thanks to electronic image stabilization (EIS), it ensures stable, reliable video in all environments. And, thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Furthermore, thermal cameras are often in compliance with privacy regulations making them ideal in situations where visual cameras can t be installed.
Powerful analytics capabilities
With a low false alarm rate, AXIS Q1951 E Thermal Camera offers reliable detection and verification. It comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI based functionality for object classification so you can detect and classify humans and vehicles around the perimeter of your property. AXIS Q1951 E includes a microphone connector, so you can add audio capabilities. Built on a powerful analytics platform, it s possible to add custom made third party analytics as well as audio analytics to trigger events for instance when detecting aggressive behavior or gunshots.
Lightweight, secure, and robust
AXIS Q1951 E is packed with built in cybersecurity features to prevent unauthorized access and safeguard your system. Axis Edge Vault ensures secure storage of all cryptographic keys and certificates and protects your Axis device ID. It also simplifies authorization of Axis products on your network. With signed firmware and secure boot, it guarantees that the firmware hasn t been compromised and ensures only authorized firmware is installed. AXIS Q1951 E also includes a Trusted Platform Module (TPM) that is FIPS 140 2 level 2 certified. And, with IK10, IP66/67, and NEMA TS2 ratings, this compact, lightweight camera is robust and vandal resistant.
Using thermal technology, AXIS Q1951 E offers reliable detection and verification. This compact, robust, halogen free camera is built on a powerful analytics platform so it s easy to add custom made third party analytics. Plus, you can buy AXIS Perimeter Defender with AI based functionality for object classification that allows you to detect and classify humans and vehicles.
Reliable detection always
AXIS Q1951 E delivers a high quality thermal video stream 24/7, in all weather, and any light conditions. Ideal for perimeter security and long range detection, it captures events taking place at great distances. With four lens alternatives (7 mm, 13mm, 19 mm and 35 mm), the network camera can optimize detection performance to meet most application requirements. Thanks to electronic image stabilization (EIS), it ensures stable, reliable video in all environments. And, thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Furthermore, thermal cameras are often in compliance with privacy regulations making them ideal in situations where visual cameras can t be installed.
Powerful analytics capabilities
With a low false alarm rate, AXIS Q1951 E Thermal Camera offers reliable detection and verification. It comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI based functionality for object classification so you can detect and classify humans and vehicles around the perimeter of your property. AXIS Q1951 E includes a microphone connector, so you can add audio capabilities. Built on a powerful analytics platform, it s possible to add custom made third party analytics as well as audio analytics to trigger events for instance when detecting aggressive behavior or gunshots.
Lightweight, secure, and robust
AXIS Q1951 E is packed with built in cybersecurity features to prevent unauthorized access and safeguard your system. Axis Edge Vault ensures secure storage of all cryptographic keys and certificates and protects your Axis device ID. It also simplifies authorization of Axis products on your network. With signed firmware and secure boot, it guarantees that the firmware hasn t been compromised and ensures only authorized firmware is installed. AXIS Q1951 E also includes a Trusted Platform Module (TPM) that is FIPS 140 2 level 2 certified. And, with IK10, IP66/67, and NEMA TS2 ratings, this compact, lightweight camera is robust and vandal resistant.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Number of languages | 12 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368–1, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7–2.2.9), NIST SP500-267 |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Aluminium, Polycarbonate (PC) |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Lens viewing angle, horizontal | 10.5° |
| Camera pixel size | 17 µm |
| Image sensor | |
| Number of sensors | 1 |
| Effective sensor resolution (thermal module) | 384 x 288 pixels |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Microbolometer |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Maximum aperture number | 1.14 |
| Fixed focal length | 3.5 cm |
| Identify distance (tele) | 33 m |
| Closest focusing distance | 33 m |
| Infrared spectral band | 8 - 14 µm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 768 x 576 pixels |
| Video formats supported The type of video formats that can be used by this device. | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 30 fps |
| Video streaming |
 |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Flip & mirror |
|
| Privacy masking |
|
| Text caption overlay |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, ADPCM, G.711, G.726, LPCM, PCM |
| Sample rate | 8 kHz |
| Audio detection |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Quality of Service (QoS) support |
|
| Streaming method | Multicast, Unicast |
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| ROM capacity | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Terminal block port |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-TLS |
| HTTPS encryption |
|
| Alert notification type | |
| Pixel counter |
|
| Digest authentication |
|
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 4.96 W |
| Power consumption (max) The maximum amount of power used by the device. | 12.95 W |
| DC output voltage | 12, 28 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 132 mm |
| Depth The distance from the front to the back of something. | 272 mm |
| Height The measurement of the product from head to foot or from base to top. | 132 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.4 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting brackets included |
|
| Manual |
|
| Technical details | |
| Doesn't contain | BFR, Halogen, PVC |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 720005 |
| MPN | 02156-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.axis.com/ |
