Axis Q1786-LE, IP security camera, Indoor & outdoor, Wired, Digital PTZ, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,..., EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15...

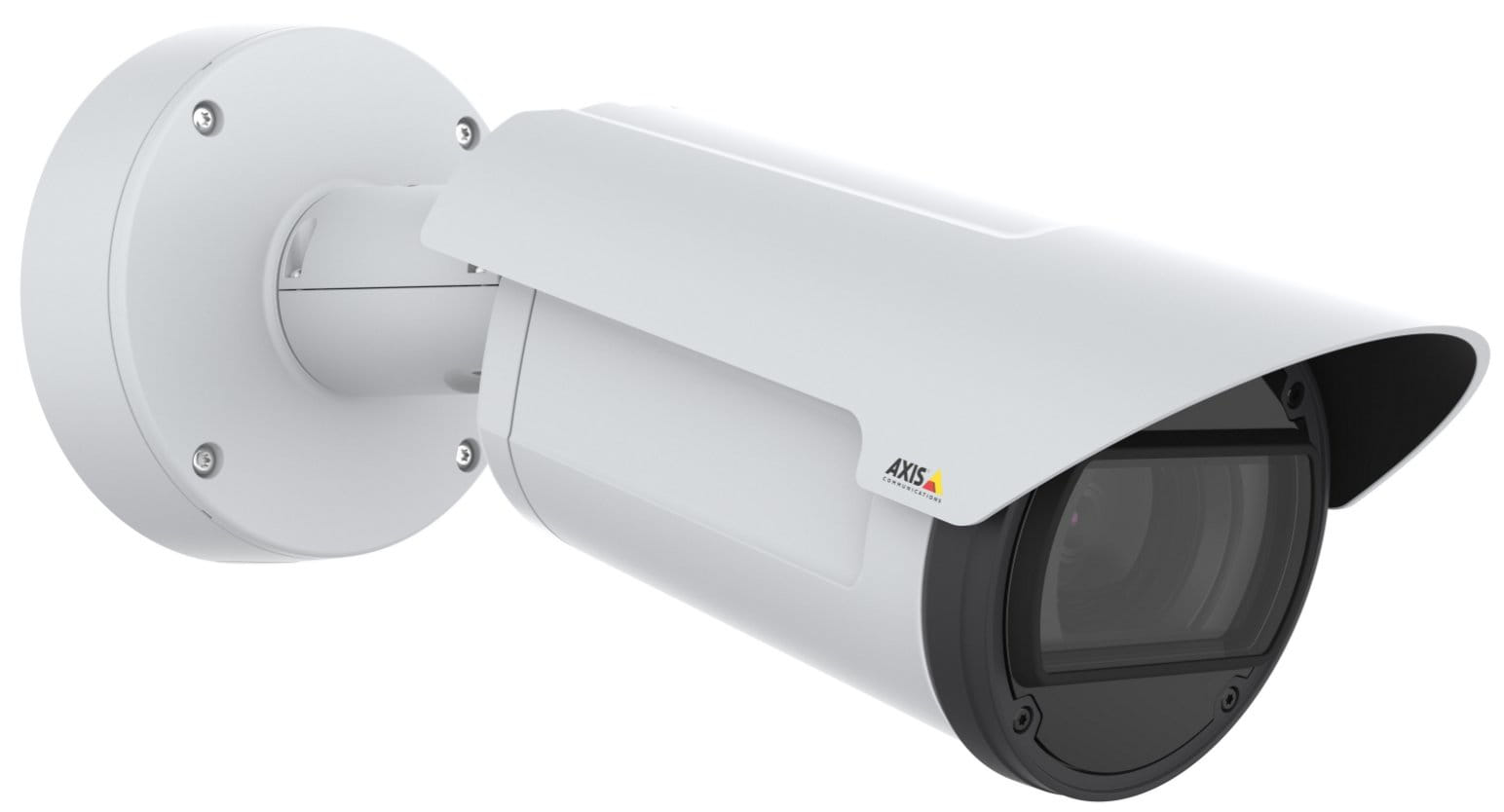

AXIS Q1786-LE Network Camera
AXIS Q1786-LE Network Camera is a tough, top-of-the-line camera with outstanding 32x optical zoom. It's an all-integrated camera that's all set to take on just about any challenge, indoors or out. Go ahead and place AXIS Q1785-LE almost anywhere to capture your targeted surveillance area. You'll be able to count on superior, high-resolution footage still or motion-packed in bright light, backlight or absolutely no light at all. That's because AXIS Q1786-LE features 32x optical zoom, Axis OptimizedIR at up to 80 m and high resolution video in 4 MP or Quad HD 1440p at up to 60 fps. It's got Axis Forensic WDR for clarity even when there are both dark and light areas in the scene and Axis Lightfinder for high-quality color images even recorded in near darkness. And Axis Zipstream preserves the forensic detail you need, while lowering bandwidth and storage requirements by 50% or more.
Mother Nature watch out
Engineered to be just as effective outdoors as it is indoors, AXIS Q1786-LE can withstand temperatures between -40 DegC to 60 DegC (-40 DegF to 140 DegF). It has electronic image stabilization and IK10-rated casing for impact resistance. It's IP66-, IP67-, and NEMA 4X-rated for protection against ice, water, corrosion and dust. And its defog functionality ensures clear images despite fog or smog. In other words, AXIS Q1786-LE can take whatever nature or human beings throw at it. And still come out on top.
But that's not all
Want more? AXIS Q1786-LE keeps right on delivering. It comes with AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard pre-installed for proactive surveillance. It has extra capacity for other advanced analytics as well. It supports video with sound and features scene profiles, shock detection, corridor format with auto-rotation and barrel distortion correction for always-great image quality and cost-effective installation. You can even add additional functionality thanks to I/O ports.
AXIS Q1786-LE Network Camera is a tough, top-of-the-line camera with outstanding 32x optical zoom. It's an all-integrated camera that's all set to take on just about any challenge, indoors or out. Go ahead and place AXIS Q1785-LE almost anywhere to capture your targeted surveillance area. You'll be able to count on superior, high-resolution footage still or motion-packed in bright light, backlight or absolutely no light at all. That's because AXIS Q1786-LE features 32x optical zoom, Axis OptimizedIR at up to 80 m and high resolution video in 4 MP or Quad HD 1440p at up to 60 fps. It's got Axis Forensic WDR for clarity even when there are both dark and light areas in the scene and Axis Lightfinder for high-quality color images even recorded in near darkness. And Axis Zipstream preserves the forensic detail you need, while lowering bandwidth and storage requirements by 50% or more.
Mother Nature watch out
Engineered to be just as effective outdoors as it is indoors, AXIS Q1786-LE can withstand temperatures between -40 DegC to 60 DegC (-40 DegF to 140 DegF). It has electronic image stabilization and IK10-rated casing for impact resistance. It's IP66-, IP67-, and NEMA 4X-rated for protection against ice, water, corrosion and dust. And its defog functionality ensures clear images despite fog or smog. In other words, AXIS Q1786-LE can take whatever nature or human beings throw at it. And still come out on top.
But that's not all
Want more? AXIS Q1786-LE keeps right on delivering. It comes with AXIS Motion Guard, AXIS Fence Guard and AXIS Loitering Guard pre-installed for proactive surveillance. It has extra capacity for other advanced analytics as well. It supports video with sound and features scene profiles, shock detection, corridor format with auto-rotation and barrel distortion correction for always-great image quality and cost-effective installation. You can even add additional functionality thanks to I/O ports.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Number of languages | 11 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EAC, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IP67, IEC/EN 62262 IK10 body, IK08 glass, NEMA 250 Type 4X, EN/IEC 62471 |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Aluminium |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK10 |
| Fog proof |
|
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.04 lx |
| Lens viewing angle, horizontal | 60° |
| Lens viewing angle, vertical | 39° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/100000 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 32x |
| Auto focus Device focusing a camera or other piece of equipment automatically. |
|
| Maximum aperture number | 4 |
| Minimum aperture number The minimum size of the hole through which light enters a camera. | 1.4 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.3 - 137 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 80 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video compression formats | AVC, H.264, M-JPEG, MPEG4 |
| Frame rate | 60 fps |
| Video streaming |
|
| Image quality adjustment | Brightness, Mirror, Saturation, Sharpness |
| Privacy masking |
|
| Text caption overlay |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | ADPCM, G.711, LC-AAC, OPUS, PCM |
| Sample rate | 48 kHz |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Quality of Service (QoS) support |
|
| Streaming method | Multicast |
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Terminal block port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Alert notification type |
| Power | |
| Power source type What the power source is. | AC, DC, PoE |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 20 - 24 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8.6 W |
| Power consumption (max) The maximum amount of power used by the device. | 13.8 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 14.7 cm |
| Length The measurement or extent of something from end to end. | 386 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.4 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Cables included | LAN (RJ-45) |
| Quick installation guide |
|
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 695072 |
| MPN | 01162-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
