- Designed for third-party software
- Sharp license plate images day and night
- Handle speeds of up to 130 km/h (81 mph)
- Capture range of up to 100 m (328 ft)
- Robust design for rough weather

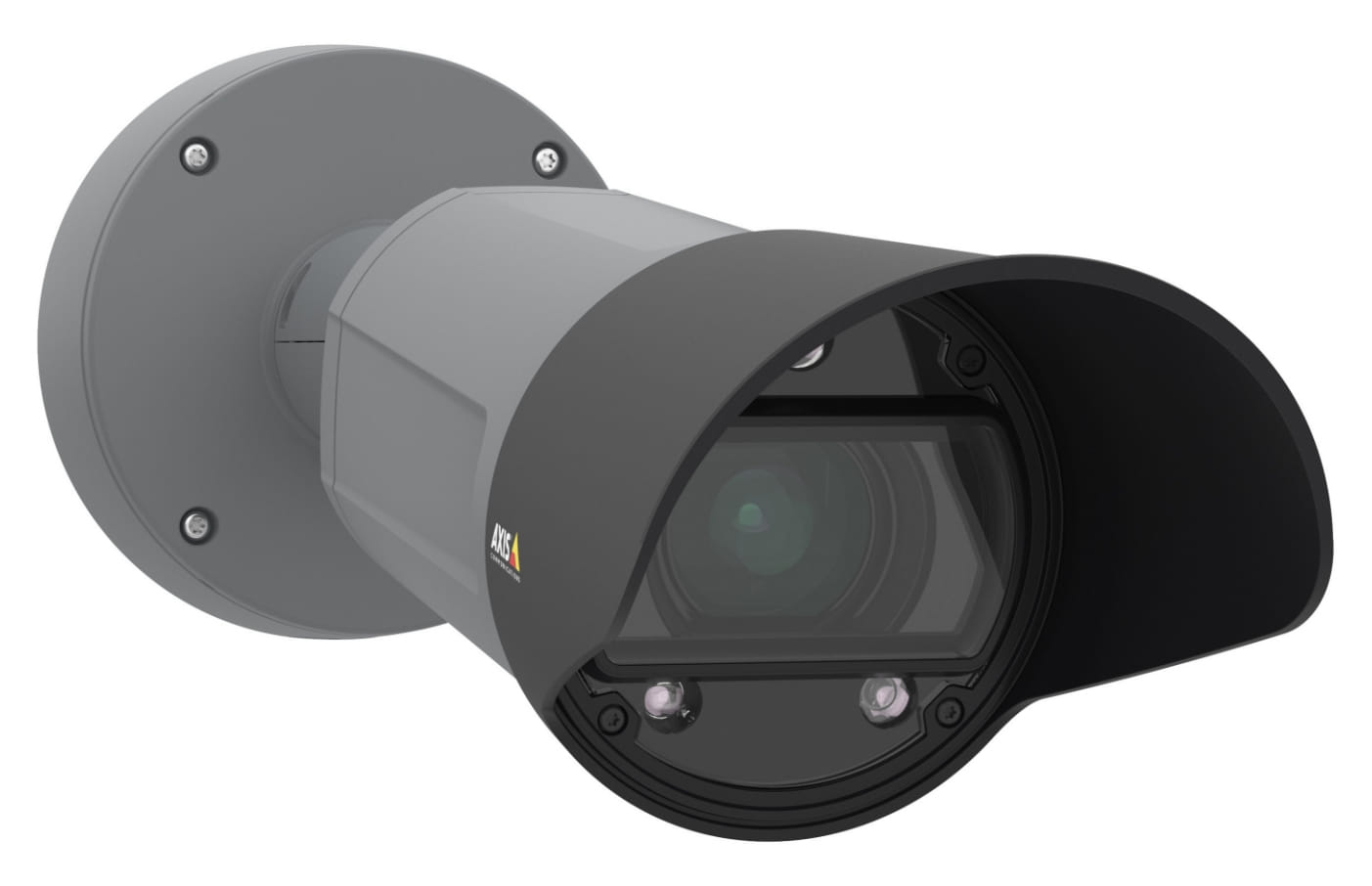

AXIS Q1700-LE License Plate Camera is the first dedicated license plate camera from Axis enabling you to capture sharp images 24/7. And thanks to its open platform, you get flexible integration with third-party analytics. This makes AXIS Q1700-LE ideal for road and urban security, vehicle loitering such as suspicious movement, tracking cars or goods and law enforcement purposes for instance gathering forensic evidence or searching for stolen vehicles.
Designed to capture
AXIS Q1700-LE is specially designed to capture license plate images with exceptional clarity and sharpness. It delivers excellent HDTV 1080p and ensures the required pixel density for license plate identification as well as plate markings, such as transporting dangerous goods. Each camera captures traffic in one lane at a range of up to 100 m (328 ft) during daytime. For coverage of multiple lanes, more cameras can easily be installed. In pitch darkness the camera captures license plate images at up to 50 m (164 ft) and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator.
AXIS Q1700-LE includes a built-in license plate capture assistant to ensure easy setup for best video performance. Simply enter the installation height, distance to the vehicle and expected speed, and the license plate capture assistant automatically adjusts the image settings to perfectly fit your specific scene.
Tough for the road
AXIS Q1700-LE captures license plate images with high pixel density at vehicle speeds of up to 130 km/h (81 mph). This robust and weatherproof camera includes an extra-long weathershield for protection in any environment. It can withstand hurricane force winds of more than 60 m/s (134 mph) and with IP66, NEMA 4X and IK10 ratings, you can be sure that it’s resistant to both harsh weather conditions and impacts. Plus, the gray color housing and black weathershield blends right in to any traffic environment.
Add any analytics
AXIS Q1700-LE is compatible with AXIS Camera Station and most third-party video management systems (VMS), allowing you to use analytics or other third-party applications to meet your specific needs. You can select edge or server-based software from any third-party vendor to perform further analysis such as license plate recognition or trigger actions.
Designed to capture
AXIS Q1700-LE is specially designed to capture license plate images with exceptional clarity and sharpness. It delivers excellent HDTV 1080p and ensures the required pixel density for license plate identification as well as plate markings, such as transporting dangerous goods. Each camera captures traffic in one lane at a range of up to 100 m (328 ft) during daytime. For coverage of multiple lanes, more cameras can easily be installed. In pitch darkness the camera captures license plate images at up to 50 m (164 ft) and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator.
AXIS Q1700-LE includes a built-in license plate capture assistant to ensure easy setup for best video performance. Simply enter the installation height, distance to the vehicle and expected speed, and the license plate capture assistant automatically adjusts the image settings to perfectly fit your specific scene.
Tough for the road
AXIS Q1700-LE captures license plate images with high pixel density at vehicle speeds of up to 130 km/h (81 mph). This robust and weatherproof camera includes an extra-long weathershield for protection in any environment. It can withstand hurricane force winds of more than 60 m/s (134 mph) and with IP66, NEMA 4X and IK10 ratings, you can be sure that it’s resistant to both harsh weather conditions and impacts. Plus, the gray color housing and black weathershield blends right in to any traffic environment.
Add any analytics
AXIS Q1700-LE is compatible with AXIS Camera Station and most third-party video management systems (VMS), allowing you to use analytics or other third-party applications to meet your specific needs. You can select edge or server-based software from any third-party vendor to perform further analysis such as license plate recognition or trigger actions.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Number of languages | 11 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 55032 A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 32 A, KCC KN32 A, KN35, EAC IEC/EN/UL 62368-1, IEC/EN/UL 60950-22 IS 13252 EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10 body, IK08, NEMA 250 4X, NEMA TS 2 NIST SP500–267 EN/IEC 62471 |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Housing material What the casing of the product is made of. | Plastic |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| IK code | IK08 |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.03 lx |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 16° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 9.6° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/66500 - 1 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 8x |
| Number of lenses The number of lenses installed in the device. | 1 |
| Maximum aperture number | 2.9 |
| Minimum aperture number The minimum size of the hole through which light enters a camera. | 4.1 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 18 - 137 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Video compression formats | AVC,H.264,M-JPEG |
| Frame rate | 60 fps |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC |
| Voice codecs | G.711,G.726,PCM |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Terminal block port |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-TLS |
| HTTPS encryption |
|
| Detection distance | 100 m |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (Power over Ethernet (PoE)) | 12.95 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 14.7 cm |
| Length The measurement or extent of something from end to end. | 439 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.4 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Cables included | LAN (RJ-45) |
| SKU | 504188 |
| MPN | 01782-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
