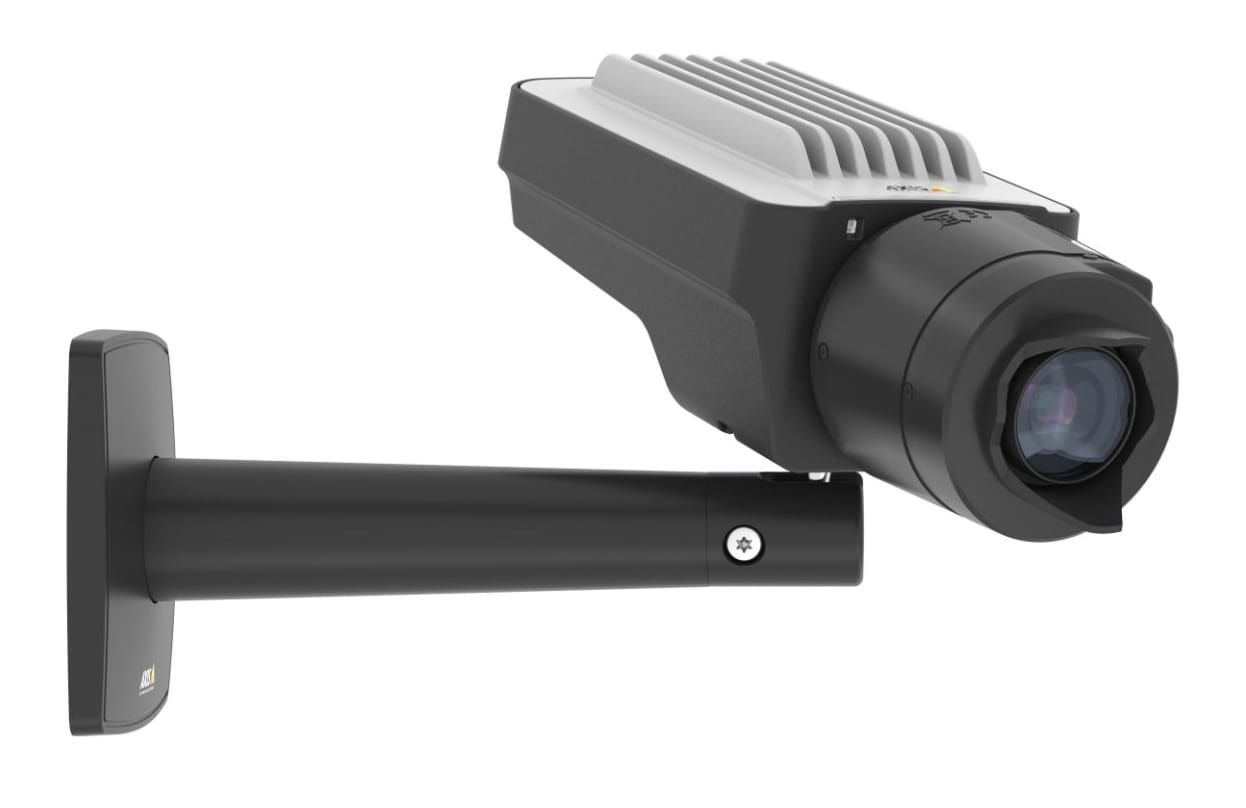

AXIS Q1645 2MP HD Network Camera Mono/Colour

Performance
Type Characteristics of the device.	IP security camera
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Certification	EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78

Design
Form factor The shape or design of the product.	Box
Mounting type Type of mounting e.g. wall mounting.	Wall
Product colour The colour e.g. red, blue, green, black, white.	Black, Silver
LED indicators
Housing material What the casing of the product is made of.	Zinc

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.004 lx
Lens viewing angle, horizontal	109°
Lens viewing angle, vertical	58°
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/100000 - 2 s

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2 mm (1 / 2")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Maximum aperture number	1.5
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	3.9 - 10 mm

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1080 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	2 MP
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	320 x 180, 1920 x 1080 (HD 1080)
Supported video modes The video modes that can be displayed by the device.	1080p
Frame rate	60 fps
Video streaming
Noise reduction
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking
Text caption overlay
Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions.

Audio
Audio system System used to play music or speech.	2-way
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	ADPCM, G.711, G.726, LC-AAC, OPUS, PCM
Sample rate	48 kHz
Built-in microphone Microphone that is found inside the product.

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af, IEEE 802.3at
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Cabling technology Type of cable technology performance.	10/100Base-T(X)
Quality of Service (QoS) support
Streaming method	Multicast

Storage
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	512 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
RS-485 ports	1
Microphone in The socket where a microphone is connected to the device.
Terminal block port

Security
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Video motion detection
Active tampering alarm
IP address filtering
HTTPS encryption
Alert notification type	E-mail

Management features
Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals.

Power
Power source type What the power source is.	PoE
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	4.5 W
Power consumption (max) The maximum amount of power used by the device.	9.5 W
Power consumption (Power over Ethernet (PoE))	9.1 W
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-20 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-30 - 50 °C
Operating relative humidity (H-H)	10 - 85%

Weight & dimensions
Width The measurement or extent of something from side to side.	82 mm
Depth The distance from the front to the back of something.	210 mm
Height The measurement of the product from head to foot or from base to top.	66 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	950 g

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Quick installation guide

Other features
Noise detection

Technical details
Lens mount interface A lens mount is an interface — mechanical and often also electrical — between a photographic camera body and a lens. It is confined to cameras where the body allows interchangeable lenses, most usually the rangefinder camera, single lens reflex type or any movie camera of 16 mm or higher gauge.	CS mount
Lens type Category of lens e.g. tele, close-up, macro.	Varifocal
Removable IR-cut filter

Logistics data
Harmonized System (HS) code	85258900
