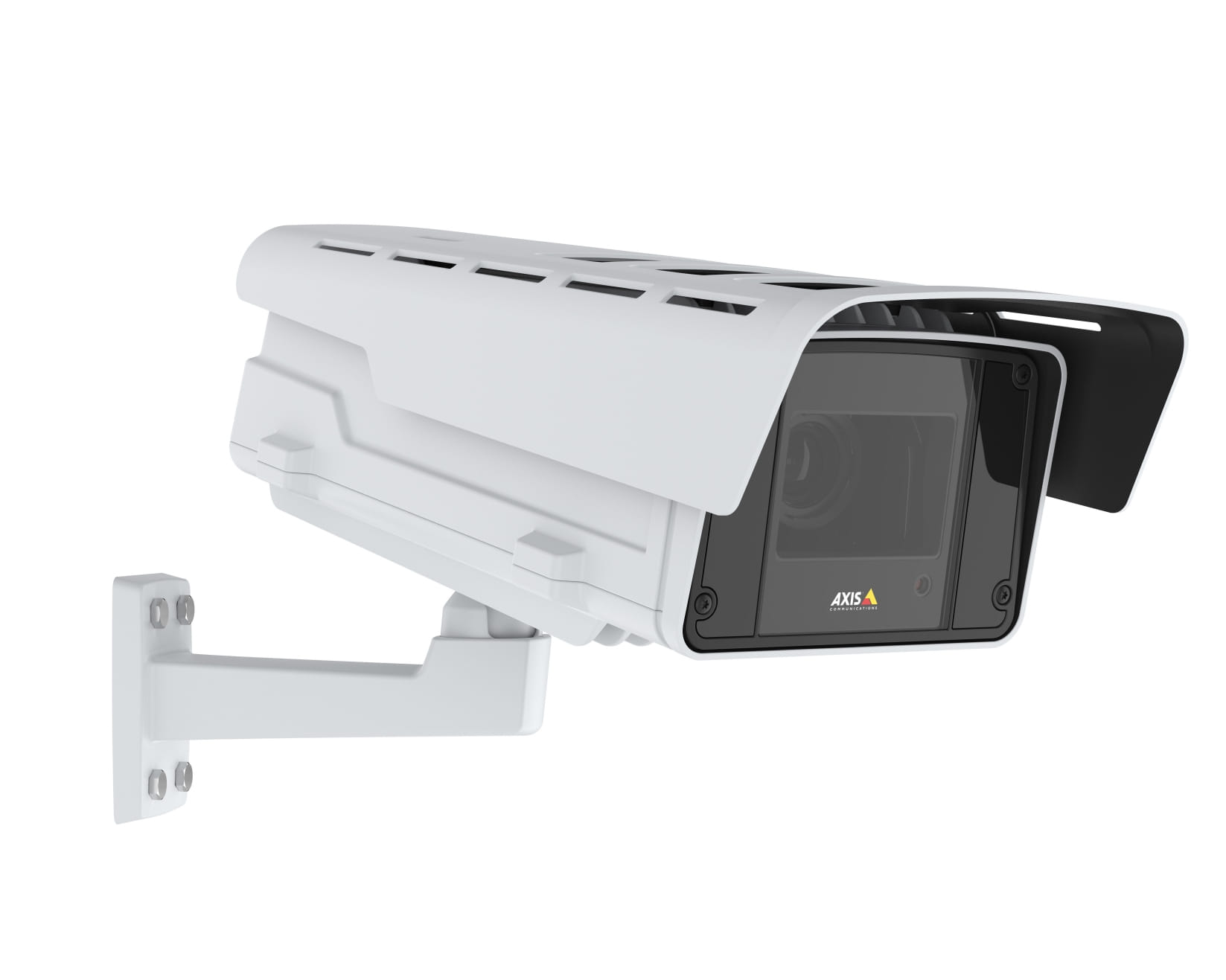

Axis Q1615-LE Mk III, IP security camera, Outdoor, Wired, Digital PTZ, Preset point, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,..., EN 50121-4, IEC 62236-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 55035, EN...
Ideal for city surveillance, transportation, and industrial applications, AXIS Q1615-LE Mk III offers cost-efficient installation and advanced security features. This top-of-the-line, outdoor-ready camera combines exceptional image quality with powerful processing capabilities thanks to a deep learning processing unit (DLPU).
Exceptional video quality
With 120 fps in HDTV 1080p, AXIS Q1615-LE Mk III captures excellent, detailed images of fast-moving objects and people regardless of light conditions. It offers Axis Lightfinder 2.0 and Axis Forensic WDR for high-quality color images even when they're recorded in near darkness. And you get up to 60 fps with Forensic WDR on. Plus, there's no need for extra lighting, thanks to Axis OptimizedIR for surveillance in pitch darkness up to 60 m (196 ft) or more. Enclosed in an IK10, IP66-, IP67-rated casing, this outdoor impact-resistant camera is protected against water, corrosion, and dust. It features remote zoom and remote focus capabilities, so there's no need for hands-on fine tuning. Additionally, with an exchangeable lens and support for motorized i-CS lenses, you can easily change lens and ensure you capture the exact images you need.
Protecting your system
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, there's a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
More opportunities with deep learning
AXIS Q1615-LE Mk III is a perfect platform for tailor-made third-party applications based on deep learning on the edge. With the proprietary Axis ARTPEC chip and a new deep-learning processing unit (DLPU), this dual chipset allows analytics to run directly on AXIS Q1615-LE Mk III (on the edge), resulting in a faster and more scalable system and facilitating complex and powerful analytics. Edge-based automatic incident detection, counting and anomaly detection are just a few of the many option.
Exceptional video quality
With 120 fps in HDTV 1080p, AXIS Q1615-LE Mk III captures excellent, detailed images of fast-moving objects and people regardless of light conditions. It offers Axis Lightfinder 2.0 and Axis Forensic WDR for high-quality color images even when they're recorded in near darkness. And you get up to 60 fps with Forensic WDR on. Plus, there's no need for extra lighting, thanks to Axis OptimizedIR for surveillance in pitch darkness up to 60 m (196 ft) or more. Enclosed in an IK10, IP66-, IP67-rated casing, this outdoor impact-resistant camera is protected against water, corrosion, and dust. It features remote zoom and remote focus capabilities, so there's no need for hands-on fine tuning. Additionally, with an exchangeable lens and support for motorized i-CS lenses, you can easily change lens and ensure you capture the exact images you need.
Protecting your system
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, there's a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach.
More opportunities with deep learning
AXIS Q1615-LE Mk III is a perfect platform for tailor-made third-party applications based on deep learning on the edge. With the proprietary Axis ARTPEC chip and a new deep-learning processing unit (DLPU), this dual chipset allows analytics to run directly on AXIS Q1615-LE Mk III (on the edge), resulting in a faster and more scalable system and facilitating complex and powerful analytics. Edge-based automatic incident detection, counting and anomaly detection are just a few of the many option.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| PTZ modes | Digital PTZ, Preset point |
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Number of languages | 11 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 50121-4, IEC 62236-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, CAN/CSA C22.2 No. 62368-1, IEC 62471 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9) NIST SP500-267 |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 58° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/125000 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Maximum aperture number | 1.2 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 2.8 - 8.5 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 60 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 2 MP |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Frame rate | 120 fps |
| Video streaming |
|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Bit rate control | Variable Bit Rate (VBR) |
| Audio | |
| Audio system System used to play music or speech. | 2-way |
| Audio system full duplex |
|
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, ADPCM, PCM |
| Voice codecs | G.711, G.726, OPUS |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 1024 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Terminal block port |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-TLS, FIPS 140-2, HTTPS |
| HTTPS encryption |
|
| Mirror |
|
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (Power over Ethernet (PoE)) | 25.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 201 mm |
| Depth The distance from the front to the back of something. | 179 mm |
| Length The measurement or extent of something from end to end. | 494 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.96 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 695117 |
| MPN | 02064-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
