Axis P8221, RJ45 10BASE T/100BASE TX PoE Terminal blocks: power (8 "34 V DC/ 20 "24 V AC), I/O, Balanced..., 8 "34 V DC, max 8.2 W 20 "24 V AC, max 13.7 VA Power over Ethernet (PoE) IEEE 802.3af/802.3at..., 0 50 DegC, 20 80%, 335 g, 99 x 118 x 31.4 mm

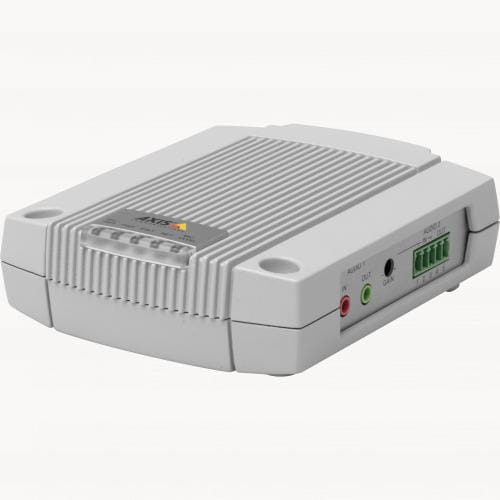

AXIS P8221 Network I/O Audio Module provides eight configurable input/output (I/O) ports and audio capabilities to a network video system that either does not have such support or require additional support. AXIS P8221 complements Axis network video products and integrates easily into existing network video installations using VAPIX .
Sensors such as a door switch, smoke detector, IR detector or glass break detector "used for triggering an alarm event "can be connected as inputs. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm.
AXIS P8221 supports two way audio in half or full duplex. It has a built in low power amplifier for small speakers so there is no need for an external preamplifier. It also has phantom power for a balanced microphone.
AXIS P8221 has support for Power over Ethernet allowing easy, cost efficient and reliable installation.
Sensors such as a door switch, smoke detector, IR detector or glass break detector "used for triggering an alarm event "can be connected as inputs. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm.
AXIS P8221 supports two way audio in half or full duplex. It has a built in low power amplifier for small speakers so there is no need for an external preamplifier. It also has phantom power for a balanced microphone.
AXIS P8221 has support for Power over Ethernet allowing easy, cost efficient and reliable installation.
| Features | |
| Connection type The way in which the product is connected to another product or a cable. | RJ45 10BASE-T/100BASE-TX PoE Terminal blocks: power (8–34 V DC/ 20–24 V AC), I/O, Balanced microphone, Speaker out, RS232/RS485/RS422 serial port 3.5 mm mic/line in, 3.5 mm line out |
| Technical details | |
| Warranty period | 5 year(s) |
| Power | |
| Power supply type The type of power supply which this product uses. | 8–34 V DC, max 8.2 W 20–24 V AC, max 13.7 VA Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 335 g |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 99 x 118 x 31.4 mm |
| Sound emission | |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 0.5 W |
| SKU | 710216 |
| MPN | 0321-006 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
