Axis P7304, 1920 x 1080 pixels, 30 fps, AVC,H.264,H.265,HEVC,MPEG4, 720x480 pixels, 720x576 pixels, 4 channels

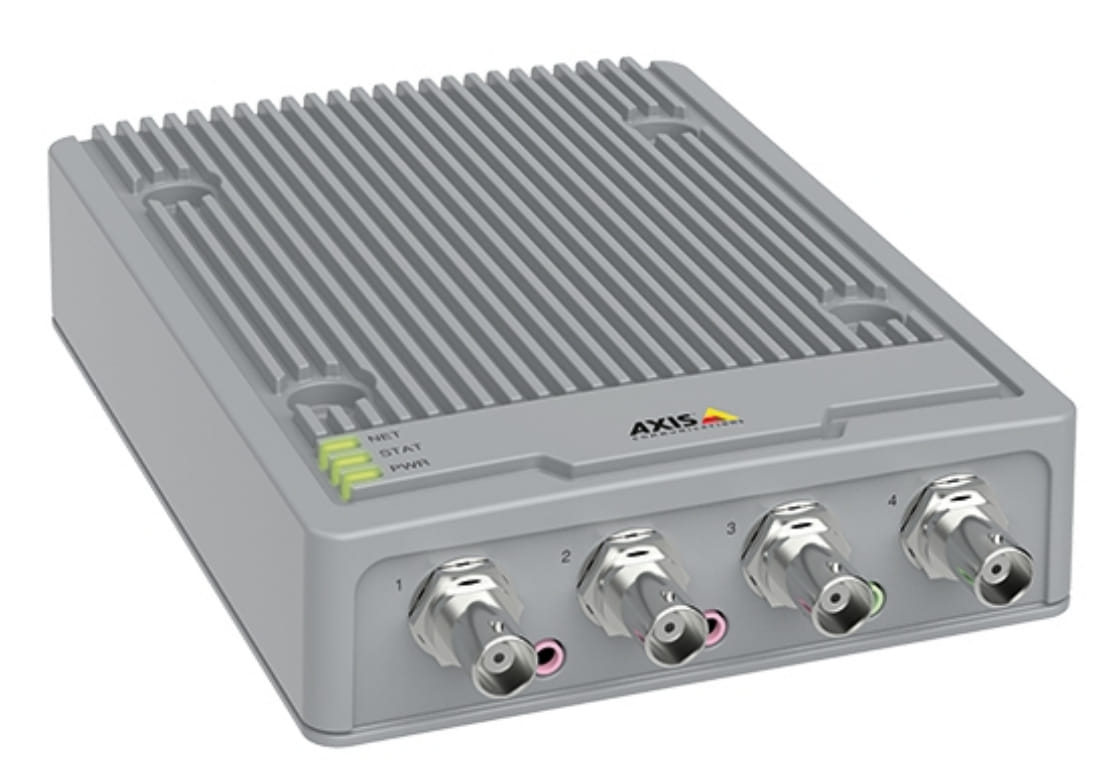

AXIS P7304 Video Encoder
With AXIS P7304 Video Encoder you can migrate to IP surveillance at your own pace. Including the latest generation of Axis chip, it supports HD analog cameras and provides a high level of defense to protect your system. Plus, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.
Everything you need and more
AXIS P7304 is a full-featured four-channel video encoder with great video performance. This encoder supports HD analog (high definition TVI, high definition CVI and analog HD) and standard resolution analog cameras. It offers support for two-way audio and intelligent analytics such as motion detection, as well as audio detection with analog and digital AXIS T83 microphones. It features RS-485/422 for controlling analog PTZ (pan/tilt/zoom) cameras. It provides edge storage through a microSDHC memory card slot. And, thanks to configurable input/outputs you can connect external devices such as sensors, relays and speakers to activate lights, open/close doors and trigger audio clips.
Seamless migration to IP surveillance
Axis video encoders allows you to migrate to the world of IP surveillance while protecting your investment in analog equipment, so you get to keep all your existing cameras and cabling. And, thanks to support for Power over Ethernet (PoE) you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, this flexible solution lets you choose between saving the recordings on a server, on the edge or in the cloud.
First-class Axis Quality
Like all Axis products, AXIS P7304 is built on an open platform so you're free to use open-standard hardware or software from the supplier of your choice. Signed firmware and secure boot guarantees that the firmware hasn't been altered and only authorized firmware is installed. And with on-going firmware upgrades, you can depend on Axis first-class quality and support all the way. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
With AXIS P7304 Video Encoder you can migrate to IP surveillance at your own pace. Including the latest generation of Axis chip, it supports HD analog cameras and provides a high level of defense to protect your system. Plus, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.
Everything you need and more
AXIS P7304 is a full-featured four-channel video encoder with great video performance. This encoder supports HD analog (high definition TVI, high definition CVI and analog HD) and standard resolution analog cameras. It offers support for two-way audio and intelligent analytics such as motion detection, as well as audio detection with analog and digital AXIS T83 microphones. It features RS-485/422 for controlling analog PTZ (pan/tilt/zoom) cameras. It provides edge storage through a microSDHC memory card slot. And, thanks to configurable input/outputs you can connect external devices such as sensors, relays and speakers to activate lights, open/close doors and trigger audio clips.
Seamless migration to IP surveillance
Axis video encoders allows you to migrate to the world of IP surveillance while protecting your investment in analog equipment, so you get to keep all your existing cameras and cabling. And, thanks to support for Power over Ethernet (PoE) you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, this flexible solution lets you choose between saving the recordings on a server, on the edge or in the cloud.
First-class Axis Quality
Like all Axis products, AXIS P7304 is built on an open platform so you're free to use open-standard hardware or software from the supplier of your choice. Signed firmware and secure boot guarantees that the firmware hasn't been altered and only authorized firmware is installed. And with on-going firmware upgrades, you can depend on Axis first-class quality and support all the way. Plus, Zipstream with support for H.264/H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
| Video | |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Video compression formats | AVC,H.264,H.265,HEVC,MPEG4 |
| NTSC resolutions | 720x480 pixels |
| PAL resolutions | 720x576 pixels |
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 4 channels |
| Technical details | |
| Wall mountable The product can be mounted on (attached to ) a wall. |
 |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Flash memory | 512 MB |
| PTZ control |
|
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask, Rotation, Sharpness |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS |
| Video motion detection |
|
| IP address filtering |
|
| Audio detection |
|
| Active tampering alarm |
|
| Network | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Quality of Service (QoS) support |
|
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af,IEEE 802.3at |
| Ports & interfaces | |
| Line-in |
|
| BNC input ports Ports (sockets) to connect BNC inputs. The BNC connector (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. | 4 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Line-out |
|
| RS-485 ports | 2 |
| I/O terminal ports Input/Output (I/O) ports (sockets) which interface between the CPU and peripheral devices in a computer. | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 187 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 650 g |
| Certificates | |
| Certification | EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Indication | |
| LED indicators | Status |
| Features | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Packaging content | |
| Manual |
|
| SKU | 504185 |
| MPN | 01680-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.axis.com/ |
