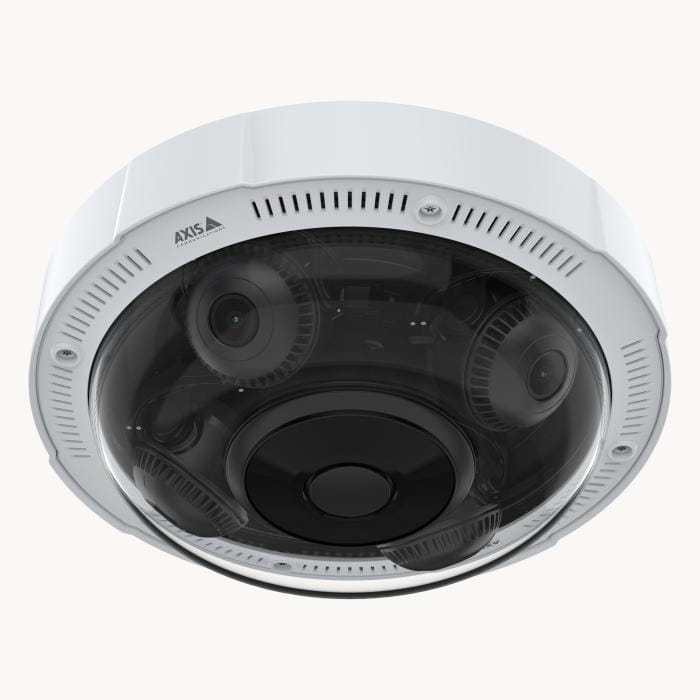

Axis P3735-PLE, IP security camera, Indoor & outdoor, Wired, Ceiling, White, Dome
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview-24/7
AXIS P3735-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360Deg IR illumination with individually controllable LEDs and a removable IR cut filter. So, you
Wide area surveillance with high-quality overview-24/7
AXIS P3735-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360Deg IR illumination with individually controllable LEDs and a removable IR cut filter. So, you
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Remote viewing |
|
| Infrared (IR) cut-off filter |
|
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK09 |
| Camera | |
| Camera pan control |
|
| Angle of rotation | 190° |
| Lens viewing angle, horizontal | 108 -40° |
| Lens viewing angle, vertical | 55 -23° |
| Lens viewing angle, diagonal | 131 -46° |
| Tilt angle range | 25 - 95° |
| Pan range | -90 - 90° |
| Camera pixel size | 2.9 µm |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/28000 - 5 s |
| Image sensor | |
| Number of sensors | 4 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Panoramic camera | |
| Sensor type (panoramic camera) | CMOS |
| Number of sensors (panoramic camera) | 4 |
| Optical sensor size (panoramic camera) | 25.4 / 2.8 mm (1 / 2.8") |
| Maximum resolution (panoramic camera) | 1920 x 1080 pixels |
| Camera shutter speed (panoramic camera) | 1/31500 s |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Focal length range (panoramic camera) | 3.18 - 8.12 mm |
| Viewing angle, vertical (panoramic camera) | 55.3° |
| Viewing angle, horizontal (panoramic camera) | 360° |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Number of lenses The number of lenses installed in the device. | 4 |
| Focus | Motorized/Manual |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 2 MP |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265, M-JPEG |
| Video compression formats | H.264, H.265, M-JPEG |
| Frame rate | 30 fps |
| Video streaming |
|
| Audio | |
| Audio detection |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Storage | |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2048 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power source type What the power source is. | PoE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Technical details | |
| Sustainability compliance |
|
| Sustainability certificates | CE, EAC, KC, UKCA, UL ECOLOGO, VCCI, cUL |
| SKU | 781352 |
| MPN | 02633-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.axis.com/ |
