Axis P3719-PLE, IP security camera, Wired, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN..., Ceiling/wall, Black, White, Dome

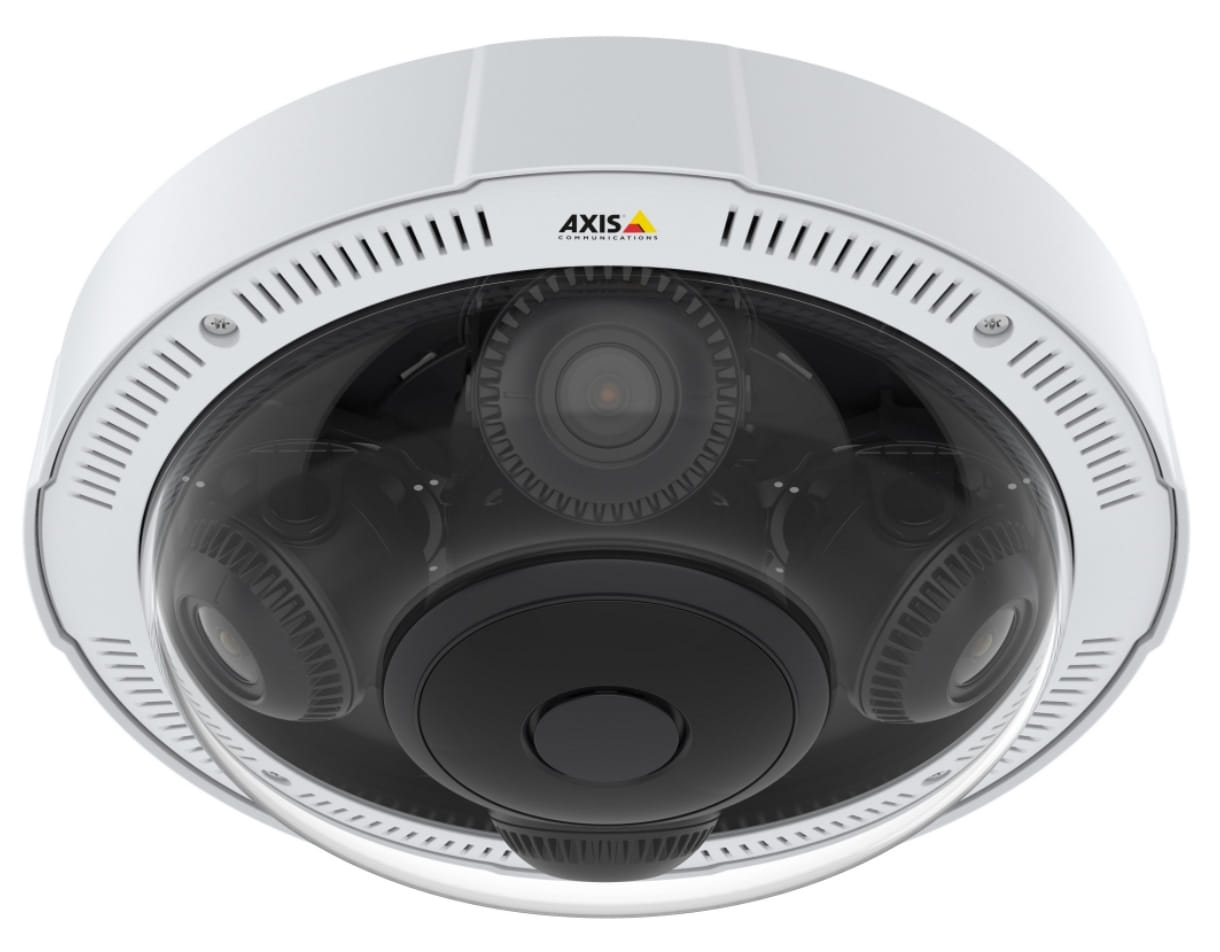

AXIS P3719-PLE Network Camera
AXIS P3719-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You'll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. It's ideal for unobstructed and far-reaching surveillance of expansive outdoor areas, road intersections and at outer corners of buildings.
Four cameras for the price of one
With AXIS P3719-PLE, you get the benefits of four cameras, while paying for just one. That means there's one camera to install, one cable to draw, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install. AXIS P3719-PLE also offers remote zoom and focus for fast, accurate installation. It can be powered by PoE allowing you to use existing cabling, further reducing costs. Plus, Axis Zipstream technology for savings of up to 50% on bandwidth and storage. The bottom line? AXIS P3719-PLE will save you money on both initial installation and long-term operations.
Wide areas and great images day and night
AXIS P3719-PLE offers four channels with Quad HD resolution per channel, at a frame rate of 30 fps. It features WDR for clarity when there are both dark and light areas in the scene. AXIS P3719-PLE has 360 Deg IR illumination with individually controllable LEDs and an automatic IR cut filter. So you'll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day. Plus, it's weather resistant thanks to an integrated weathershield with an IP66/IP67 rating.
One camera for the coverage of four
The beauty of AXIS P3719-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3719-PLE delivers a 360 Deg overview or a combination of overviews and close-ups depending on your needs. In addition, the camera's 5 MP sensors can be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target. The camera can be mounted on corners of buildings or on poles and parapets using AXIS T94N01D Pendant Kit. When corner-mounted, AXIS P3719-PLE provides 270 Deg coverage using 3 camera heads, while the fourth camera captures the scene right below the camera avoiding blind spots.
AXIS P3719-PLE lets you easily cover four different areas with a single camera, around the clock and even in challenging lighting. You'll be able to count on both excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution. It's ideal for unobstructed and far-reaching surveillance of expansive outdoor areas, road intersections and at outer corners of buildings.
Four cameras for the price of one
With AXIS P3719-PLE, you get the benefits of four cameras, while paying for just one. That means there's one camera to install, one cable to draw, and one IP address, one video management software (VMS) license and just one license for any analytics you choose to install. AXIS P3719-PLE also offers remote zoom and focus for fast, accurate installation. It can be powered by PoE allowing you to use existing cabling, further reducing costs. Plus, Axis Zipstream technology for savings of up to 50% on bandwidth and storage. The bottom line? AXIS P3719-PLE will save you money on both initial installation and long-term operations.
Wide areas and great images day and night
AXIS P3719-PLE offers four channels with Quad HD resolution per channel, at a frame rate of 30 fps. It features WDR for clarity when there are both dark and light areas in the scene. AXIS P3719-PLE has 360 Deg IR illumination with individually controllable LEDs and an automatic IR cut filter. So you'll enjoy clear, reflection-free footage in low light or complete darkness and undistorted color during the day. Plus, it's weather resistant thanks to an integrated weathershield with an IP66/IP67 rating.
One camera for the coverage of four
The beauty of AXIS P3719-PLE lies in its design, with four varifocal camera heads that can be moved and rotated to capture scenes in various directions in wide or zoomed-in views. AXIS P3719-PLE delivers a 360 Deg overview or a combination of overviews and close-ups depending on your needs. In addition, the camera's 5 MP sensors can be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target. The camera can be mounted on corners of buildings or on poles and parapets using AXIS T94N01D Pendant Kit. When corner-mounted, AXIS P3719-PLE provides 270 Deg coverage using 3 camera heads, while the fourth camera captures the scene right below the camera avoiding blind spots.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Wide Dynamic Range (WDR) |
|
| Infrared (IR) cut-off filter |
|
| Certification | EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/67, IEC/EN 62262 IK09, NEMA 250 Type 4X, NIST SP500-267 |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Aluminium, Plastic, Polycarbonate |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shock resistant |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK09 |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.04 lx |
| Angle of rotation | 100° |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 101° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 54° |
| Viewing angle, diagonal | 116° |
| Tilt angle range | 25 - 95° |
| Pan range | -90 - 90° |
| Camera shutter type Indicates if the camera shutter is mechanical or electronic. | Electronic |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/5 - 1/66500 s |
| Image sensor | |
| Number of sensors | 4 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.5 mm (1 / 2.5") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Number of lenses The number of lenses installed in the device. | 4 |
| Focus | Motorized |
| Maximum aperture number | 2.6 |
| Minimum aperture number The minimum size of the hole through which light enters a camera. | 1.8 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 3 - 6 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 15 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1440 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 15 MP |
| Video formats supported The type of video formats that can be used by this device. | AVC,H.264,H.265,MPEG4 |
| Supported video modes The video modes that can be displayed by the device. | 1440p |
| Frame rate | 30 fps |
| Video streaming |
|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay |
|
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Streaming method | Multicast, Unicast |
| Storage | |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| ROM capacity | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS,EAP-TLS |
| HTTPS encryption |
|
| Management features | |
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10.7 W |
| Power consumption (max) The maximum amount of power used by the device. | 25.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 255 mm |
| Depth The distance from the front to the back of something. | 255 mm |
| Height The measurement of the product from head to foot or from base to top. | 91.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Screws included |
|
| Manual |
|
| SKU | 695075 |
| MPN | 01500-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
