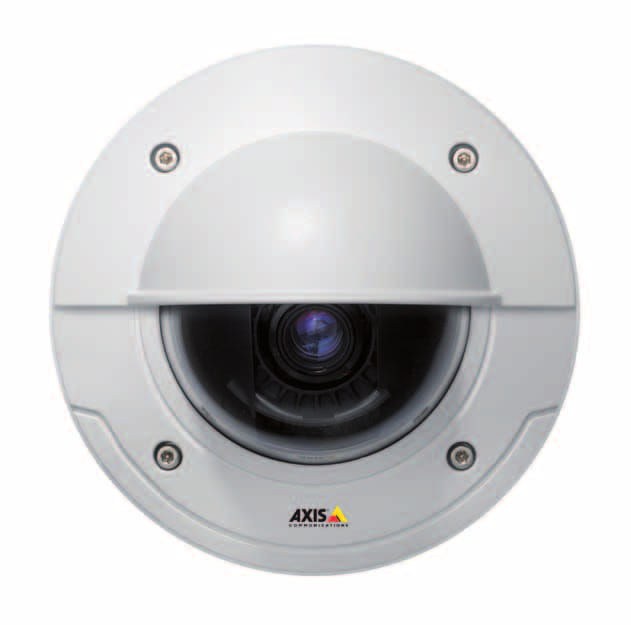

Axis P3346 VE, IP security camera, Outdoor, Wired, Ceiling, White, Dome
High performance video
The AXIS P3346 VE is a 3 megapixel day and night fixed dome network camera that offers superb video performance. It delivers full frame rate HDTV 1080p (1920x1080) in compliance with the SMPTE 274M standard in resolution, color representation, 16:9 aspect ratio and frame rate. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously. The camera also supports digital pan/tilt/zoom and multi view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom adjusts the angle of view over the network and the remote focus eliminates the need for manual focusing.
Advanced iris control
HDTV/Megapixel solutions
AXIS P3346 VE also features P Iris, a new and revolutionary precise iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field-where objects at different distances from the camera are in focus simultaneously-is important in the video monitoring of, for example, a long corridor or parking lot. It also features wide dynamic range and day/night functionality enable clear images both in daylight and in dark lighting conditions.
Vandal resistant and weather proof installations
Outdoor video surveillance
AXIS P3346 VE with its weather proof and vandal resistant casing is a fixed dome perfectly adapted for harsh environments. The camera operates in 40 DegC ( 40 DegF) to 55 DegC ( 131 DegF), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as university campuses and railway stations.
The Lady Eleanor Holles School
AXIS P3365 VE 2 megapixel day/night dome cameras with Lightfinder deployed externally to secure gates and doorways around the clock
The AXIS P3346 VE is a 3 megapixel day and night fixed dome network camera that offers superb video performance. It delivers full frame rate HDTV 1080p (1920x1080) in compliance with the SMPTE 274M standard in resolution, color representation, 16:9 aspect ratio and frame rate. Multiple H.264 streams, as well as Motion JPEG streams, can be provided simultaneously. The camera also supports digital pan/tilt/zoom and multi view streaming, where the full view and several areas cropped from the full view can be streamed simultaneously. The remote zoom adjusts the angle of view over the network and the remote focus eliminates the need for manual focusing.
Advanced iris control
HDTV/Megapixel solutions
AXIS P3346 VE also features P Iris, a new and revolutionary precise iris control system that provides optimal image quality in all lighting conditions. It provides images with better contrast, clarity, resolution and depth of field. Having good depth of field-where objects at different distances from the camera are in focus simultaneously-is important in the video monitoring of, for example, a long corridor or parking lot. It also features wide dynamic range and day/night functionality enable clear images both in daylight and in dark lighting conditions.
Vandal resistant and weather proof installations
Outdoor video surveillance
AXIS P3346 VE with its weather proof and vandal resistant casing is a fixed dome perfectly adapted for harsh environments. The camera operates in 40 DegC ( 40 DegF) to 55 DegC ( 131 DegF), powered by standard Power over Ethernet (IEEE 802.3af) only. It is the perfect solution for video surveillance systems in areas with tough quality and efficiency requirements such as university campuses and railway stations.
The Lady Eleanor Holles School
AXIS P3365 VE 2 megapixel day/night dome cameras with Lightfinder deployed externally to secure gates and doorways around the clock
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Day/night mode |
|
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Water resistant |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Weatherproof |
|
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.08 lx |
| Lens viewing angle, horizontal | 46° |
| Tilt angle range | 0 - 160° |
| Pan range | 0 - 360° |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 3 mm (1 / 3") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 3 MP |
| Video formats supported The type of video formats that can be used by this device. | H.264 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1080 (HD 1080) |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC, G.711, G.726 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
 |
| Flash memory | 128 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Ports & interfaces | |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | RJ-45 |
| Power | |
| Power source type What the power source is. | PoE |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 148 mm |
| Depth The distance from the front to the back of something. | 148 mm |
| Height The measurement of the product from head to foot or from base to top. | 123 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.7 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 746798 |
| MPN | 01061-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
