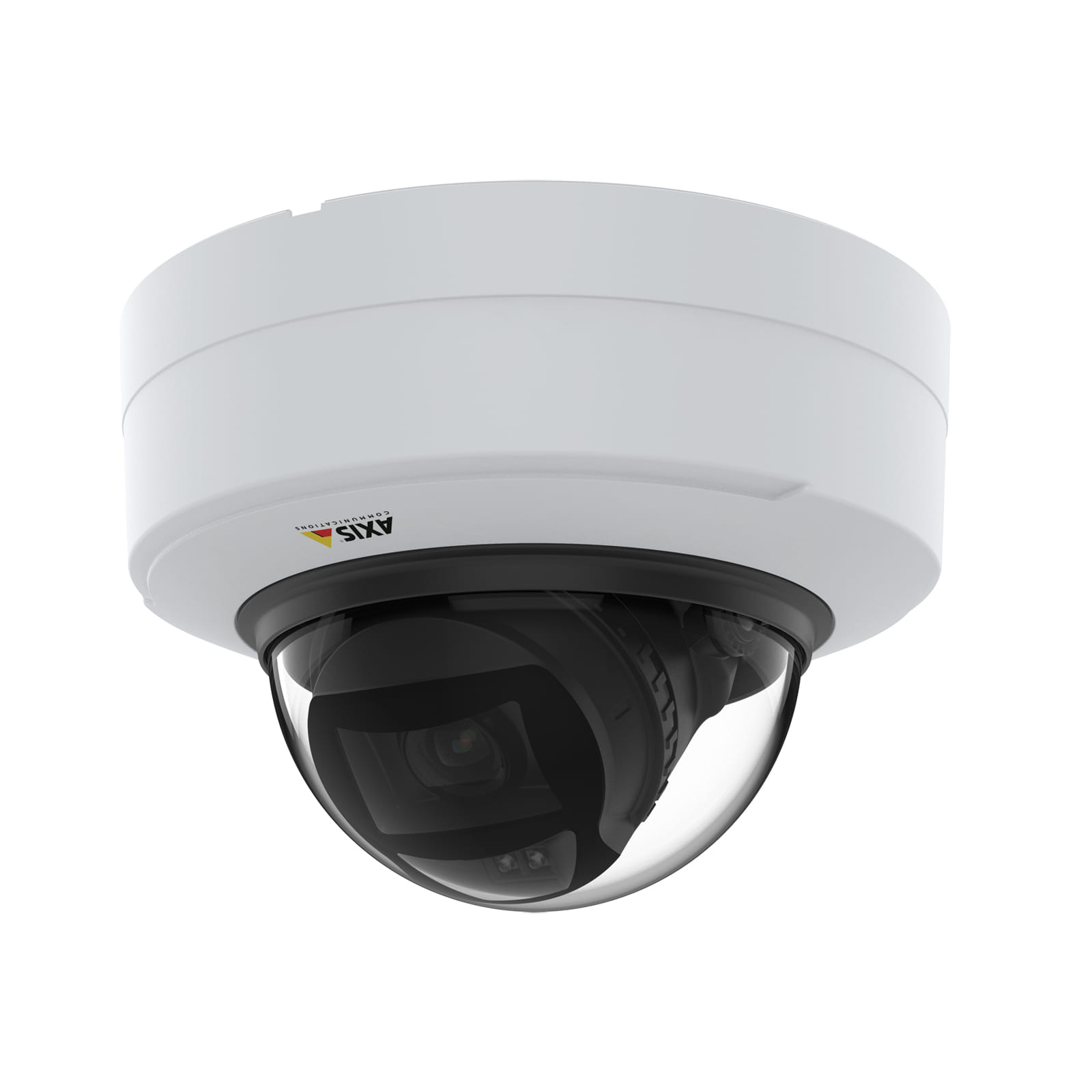

Axis P3245-LV, IP security camera, Indoor, Wired, Digital PTZ, Simplified Chinese, Traditional Chinese, German, English, French, Italian, Korean, Portuguese,..., EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15...
Never miss a beat
Based on the newest generation of Axis chip, AXIS P3245-LV has powerful capacity for analytics. It features Lightfinder 2.0 providing increased light sensitivity to capture video with more life-like colors and sharp video of moving objects. Even the darkest areas of the scene will be lighter, more colorful and disclose more details. Thanks to Forensic WDR it provides clarity when there's both dark and light areas in the scene. And, with OptimizedIR with extended range of reach, you'll enjoy sharp and clear footage in complete darkness without need for extra lighting.
It also features two-way audio, so you can listen in on what's happening in the scene, benefit from audio detection and add third-party audio analytics for example, for detecting aggressive behavior. Additionally, you can make your surveillance system even smarter by integrating other equipment via the camera's digital input or output to trigger alarms or actions.
Keeping you secure
Thanks to the newest generation of Axis chip, AXIS P3245-LV is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
Saving you time and money
Featuring a varifocal lens with remote zoom and focus capabilities, AXIS P3245-LV can be adapted for close-ups and overviews without the need for hands-on fine tuning. This versatile and discreet network camera is easy to install and operate. It benefits from no visible screws, and the casing simply snaps on. And, the casing can be re-painted in any color helping it blend in with specific surroundings. This IK10-rated camera is resistant to dust and impacts so it can be installed in easy-to-reach areas and you can be confident it's safe and secure. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
Based on the newest generation of Axis chip, AXIS P3245-LV has powerful capacity for analytics. It features Lightfinder 2.0 providing increased light sensitivity to capture video with more life-like colors and sharp video of moving objects. Even the darkest areas of the scene will be lighter, more colorful and disclose more details. Thanks to Forensic WDR it provides clarity when there's both dark and light areas in the scene. And, with OptimizedIR with extended range of reach, you'll enjoy sharp and clear footage in complete darkness without need for extra lighting.
It also features two-way audio, so you can listen in on what's happening in the scene, benefit from audio detection and add third-party audio analytics for example, for detecting aggressive behavior. Additionally, you can make your surveillance system even smarter by integrating other equipment via the camera's digital input or output to trigger alarms or actions.
Keeping you secure
Thanks to the newest generation of Axis chip, AXIS P3245-LV is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
Saving you time and money
Featuring a varifocal lens with remote zoom and focus capabilities, AXIS P3245-LV can be adapted for close-ups and overviews without the need for hands-on fine tuning. This versatile and discreet network camera is easy to install and operate. It benefits from no visible screws, and the casing simply snaps on. And, the casing can be re-painted in any color helping it blend in with specific surroundings. This IK10-rated camera is resistant to dust and impacts so it can be installed in easy-to-reach areas and you can be confident it's safe and secure. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Number of languages | 11 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, French, Italian, Korean, Portuguese, Russian |
| Certification | EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35 |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| LED indicators |
|
| Housing material What the casing of the product is made of. | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP52 |
| IK code | IK10 |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Angle of rotation | 175° |
| Tilt angle range | 0 - 75° |
| Pan range | -180 - 180° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/66500 - 2 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Number of lenses The number of lenses installed in the device. | 1 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 3.4 - 8.9 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1080 (HD 1080) |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Video recording Recording moving visual images. |
|
| Frame rate | 30 fps |
| Video streaming |
|
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking |
|
| Time stamp overlay |
|
| Text caption overlay |
|
| Smart IR |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Terminal block port |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, HTTPS |
| HTTPS encryption |
|
| Alert notification type | E-mail, Text alert message |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 6.4 W |
| Power consumption (max) The maximum amount of power used by the device. | 10.7 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 103 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 14.9 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 650 g |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting brackets included |
|
| Screws included |
|
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 695162 |
| MPN | 02327-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
