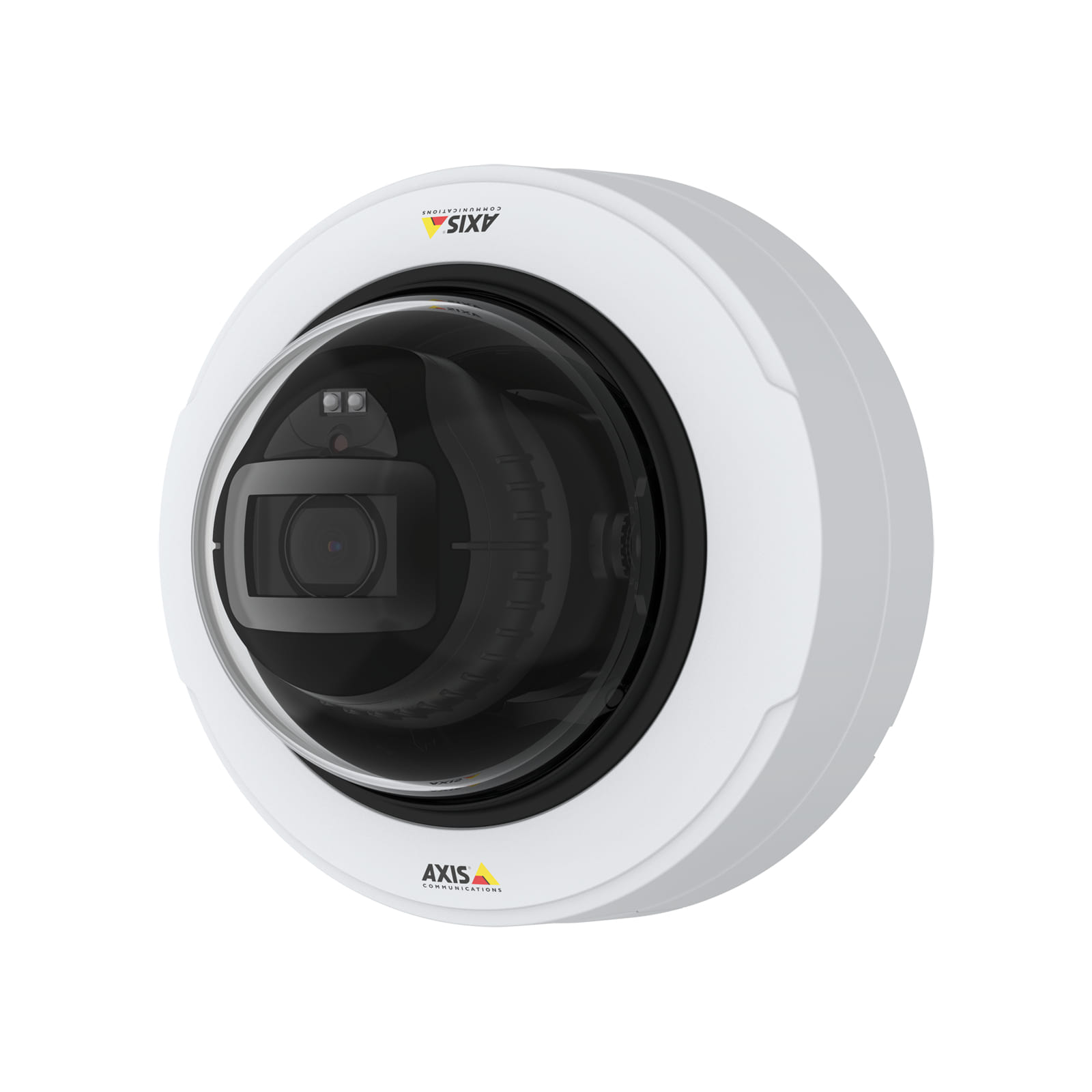

Axis P3248-LV, IP security camera, Outdoor, Wired, Ceiling/wall, Black, White, Dome
AXIS P3248-LV is a robust fixed dome camera that delivers brilliant 4K resolution in any light. This streamlined camera offers cost-efficient installation making it ideal for various surveillance situations, such as in data centers, logistic centers and high-end retail stores.
Excellent image quality- in any light
AXIS P3248-LV offers excellent image quality with brilliant 4K resolution at up to 30 fps. It features Axis Lightfinder 2.0 and Axis Forensic WDR to deliver true colors and great detail in challenging light or near darkness. And, with OptimizedIR you'll enjoy clear, reflection-free footage in complete darkness without the need for extra lighting. Featuring motion-adaptive exposure, it ensures sharp video by significantly reducing the motion blur from approaching or nearby objects. And, with a varifocal lens and remote zoom and focus capabilities, there's no need for hands-on fine tuning. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
Stay on top of it all
AXIS P3248-LV includes AXIS Object Analytics so you can detect and classify humans and vehicles entering a user-defined area or crossing a user-defined virtual line. It's easy to add audio capabilities by connecting a microphone and speaker allowing you to listen in on transactions or incidents and trigger audio warnings. Additionally, you can make your surveillance system even smarter by integrating other equipment via the camera's digital input or output to trigger alarms or actions. Plus, since the input is supervised, an alarm can also be sent if the connection is cut.
We've got you covered- inside and out
Enclosed in a dust and vandal-resistant IK10-rated casing, AXIS P3248-LV camera is protected against redirection, defocusing, and impacts. It's packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default.
Excellent image quality- in any light
AXIS P3248-LV offers excellent image quality with brilliant 4K resolution at up to 30 fps. It features Axis Lightfinder 2.0 and Axis Forensic WDR to deliver true colors and great detail in challenging light or near darkness. And, with OptimizedIR you'll enjoy clear, reflection-free footage in complete darkness without the need for extra lighting. Featuring motion-adaptive exposure, it ensures sharp video by significantly reducing the motion blur from approaching or nearby objects. And, with a varifocal lens and remote zoom and focus capabilities, there's no need for hands-on fine tuning. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
Stay on top of it all
AXIS P3248-LV includes AXIS Object Analytics so you can detect and classify humans and vehicles entering a user-defined area or crossing a user-defined virtual line. It's easy to add audio capabilities by connecting a microphone and speaker allowing you to listen in on transactions or incidents and trigger audio warnings. Additionally, you can make your surveillance system even smarter by integrating other equipment via the camera's digital input or output to trigger alarms or actions. Plus, since the input is supervised, an alarm can also be sent if the connection is cut.
We've got you covered- inside and out
Enclosed in a dust and vandal-resistant IK10-rated casing, AXIS P3248-LV camera is protected against redirection, defocusing, and impacts. It's packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP56 |
| IK code | IK10 |
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.14 lx |
| Angle of rotation | 350° |
| Tilt angle range | -75 - 75° |
| Pan range | -180 - 180° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/8500 - 1/5 s |
| Adjustment shutter speed | Auto |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 1.8 mm (1 / 1.8") |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.3 - 8.6 mm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 8.3 MP |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265, M-JPEG |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 2160p |
| Frame rate | 30 fps |
| Audio | |
| Audio system full duplex |
|
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | ADPCM, LPCM, PCM |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1x |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT v3.1.1, Syslog |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2048 MB |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (max) The maximum amount of power used by the device. | 11.4 W |
| Power consumption (Power over Ethernet (PoE)) | 8.2 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 103 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 14.9 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 720 g |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Manual |
|
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 695087 |
| MPN | 01597-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
