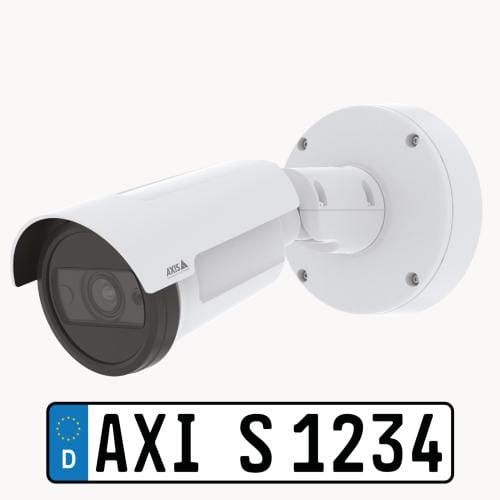

Axis 02811-001, IP security camera, Outdoor, Wired, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French,..., 120 dB, Wall
This all-in-one, outdoor camera kit includes an HDTV 1080p bullet camera and comes with AXIS License Plate Verifier preinstalled. It offers an easy, cost-effective kit and includes freeflow mode at up to 105 km/h (65 mph).
All-in-one license plate reading
AXIS P1465-LE-3 License Plate Verifier kit is ideal for freeflow traffic, such as in city centers, access roads, gated communities, and campuses. It consists of an Axis bullet camera and preinstalled AXIS License Plate Verifier analytics. Featuring a 29 mm telephoto lens, it delivers a high pixel density to allow for sharp license plates reading from 7 to 20 meters (20-65 feet). This cost-effective solution delivers HDTV 1080p resolution and features automatic focus setting to ensure the desired field of view in perfect focus.
Any weather, any time
This robust and compact IK10-rated camera can be installed in all environments. It includes a weathershield and can handle temperatures ranging from -40 DegC to 60 DegC (-40 DegF to 140 DegF). Featuring shock detection, the camera will send an alarm when it has been hit. And, electronic image stabilization (EIS) ensures stable video despite vibration. This all-in-one, purposed-tuned outdoor camera kit includes Axis image enhancement technologies as well as OptimizedIR to ensure sharp images for license plate reading around the clock.
Easy and efficient
This flexible, all-in-one camera kit allows for easy installation and tight integration with AXIS Camera Station Pro. With an intuitive user interface, AXIS Camera Station Pro provides all the necessary features for effective surveillance. It features efficient search capabilities, so it
All-in-one license plate reading
AXIS P1465-LE-3 License Plate Verifier kit is ideal for freeflow traffic, such as in city centers, access roads, gated communities, and campuses. It consists of an Axis bullet camera and preinstalled AXIS License Plate Verifier analytics. Featuring a 29 mm telephoto lens, it delivers a high pixel density to allow for sharp license plates reading from 7 to 20 meters (20-65 feet). This cost-effective solution delivers HDTV 1080p resolution and features automatic focus setting to ensure the desired field of view in perfect focus.
Any weather, any time
This robust and compact IK10-rated camera can be installed in all environments. It includes a weathershield and can handle temperatures ranging from -40 DegC to 60 DegC (-40 DegF to 140 DegF). Featuring shock detection, the camera will send an alarm when it has been hit. And, electronic image stabilization (EIS) ensures stable video despite vibration. This all-in-one, purposed-tuned outdoor camera kit includes Axis image enhancement technologies as well as OptimizedIR to ensure sharp images for license plate reading around the clock.
Easy and efficient
This flexible, all-in-one camera kit allows for easy installation and tight integration with AXIS Camera Station Pro. With an intuitive user interface, AXIS Camera Station Pro provides all the necessary features for effective surveillance. It features efficient search capabilities, so it
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Wide Dynamic Range (WDR) |
 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Dynamic range | 120 dB |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0 lx |
| Lens viewing angle, horizontal | 29 - 11° |
| Lens viewing angle, vertical | 16 - 6° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/71500 - 2 s |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 10.9 - 29 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 160 x 120, 160 x 90, 1280 x 800 (WXGA), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Noise reduction |
|
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Audio | |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, G.711, G.726, LPCM, OPUS, PCM |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 55 dB |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated A card reader is a device that enables reading and, in some cases, writing data to and from a memory card. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD |
| Flash memory | 8192 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-TLS, MSCHAPv2, PEAP, TLS |
| Detection distance | 20 m |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7.2 W |
| Power consumption (max) The maximum amount of power used by the device. | 13 W |
| DC output voltage | 10, 28 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 13.2 cm |
| Length The measurement or extent of something from end to end. | 280 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.2 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| SKU | 806942 |
| MPN | 02811-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
