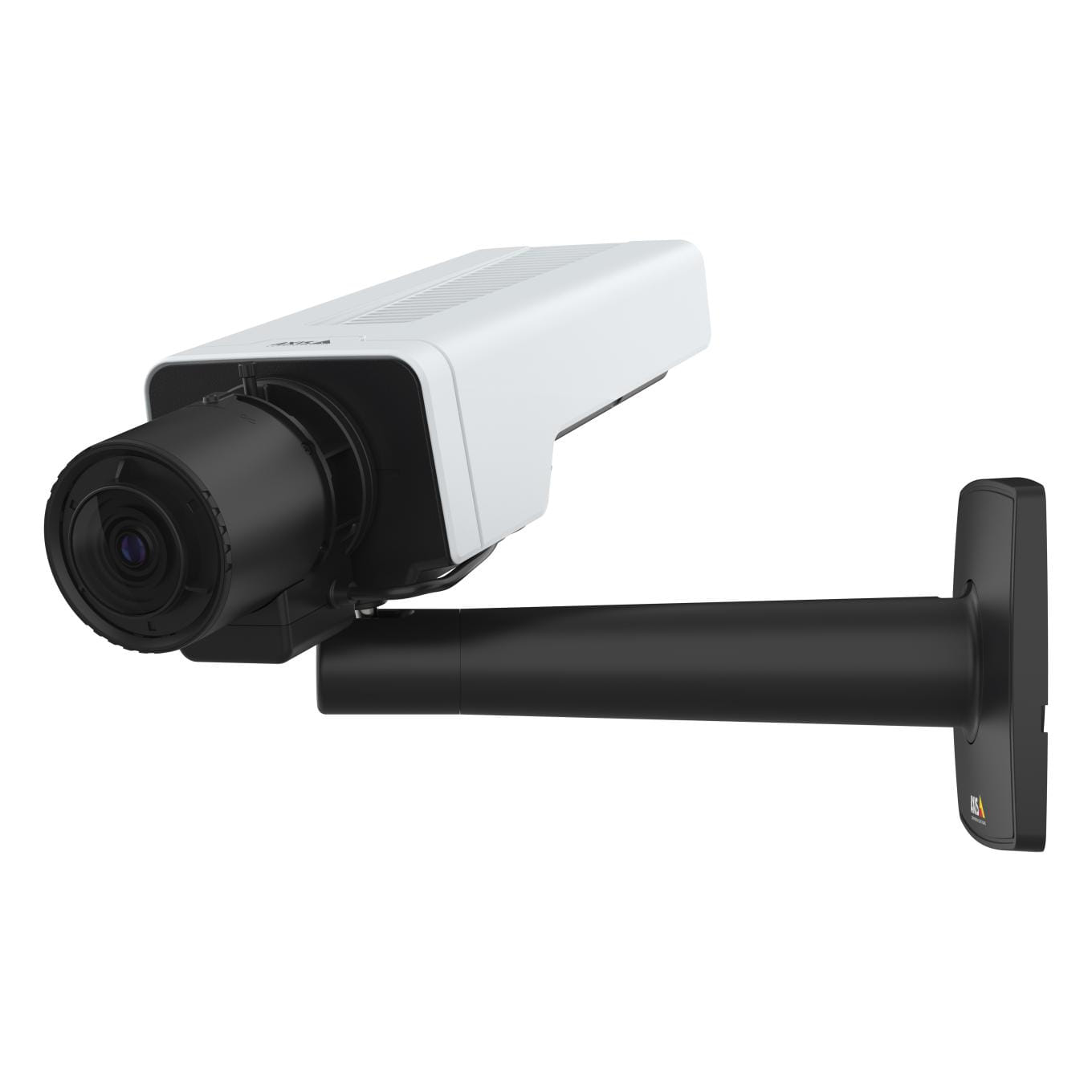

Axis P1385 1080p Box IP Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
PTZ modes	Digital PTZ, Preset point
Wide Dynamic Range (WDR)
Day/night mode
Certification	UL/cUL, UKCA, CE, KC, EAC, VCCI, RCM CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 NIST SP500-267, IPv6 USGv6 ETSI EN 303 645, FIPS 140

Design
Form factor The shape or design of the product.	Box
Mounting type Type of mounting e.g. wall mounting.	Ceiling/wall
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Housing material What the casing of the product is made of.	Aluminium
Fog proof

Camera
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.005 lx
Lens viewing angle, horizontal	121 - 26°
Lens viewing angle, vertical	64 - 15°
Camera pixel size	2.9 µm
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/37000 - 2 s

Image sensor
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 2.8 mm (1 / 2.8")
Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television).
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	2.8 - 13 mm
Auto focus Device focusing a camera or other piece of equipment automatically.

Night vision
Night vision Night vision is technology which allows you to see in low light conditions.
LED type	IR

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	1920 x 1080 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	2 MP
Video compression formats	H.264, H.265, M-JPEG, MPEG4
Frame rate	60 fps
Video streaming
Noise reduction
Noise reduction technology	2D noise reduction, 3D noise reduction
Gain control type	Auto
Privacy masking
Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions.

Audio
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	55 dB

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLS b , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP,NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Storage
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	1024 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
RS-485 ports	2

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS

Power
Power source type What the power source is.	DC, PoE
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	3.15 W
Power consumption (max) The maximum amount of power used by the device.	7.76 W
Power consumption (Power over Ethernet (PoE))	2.97 W
DC output voltage	10, 28

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-10 - 55 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	87 mm
Depth The distance from the front to the back of something.	225 mm
Height The measurement of the product from head to foot or from base to top.	235 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	480 g

Packaging content
Number of cameras The quantity of cameras that product can support.	1
