Axis P1378-LE, IP security camera, Outdoor, Wired, Digital PTZ, Pelco-D, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,...

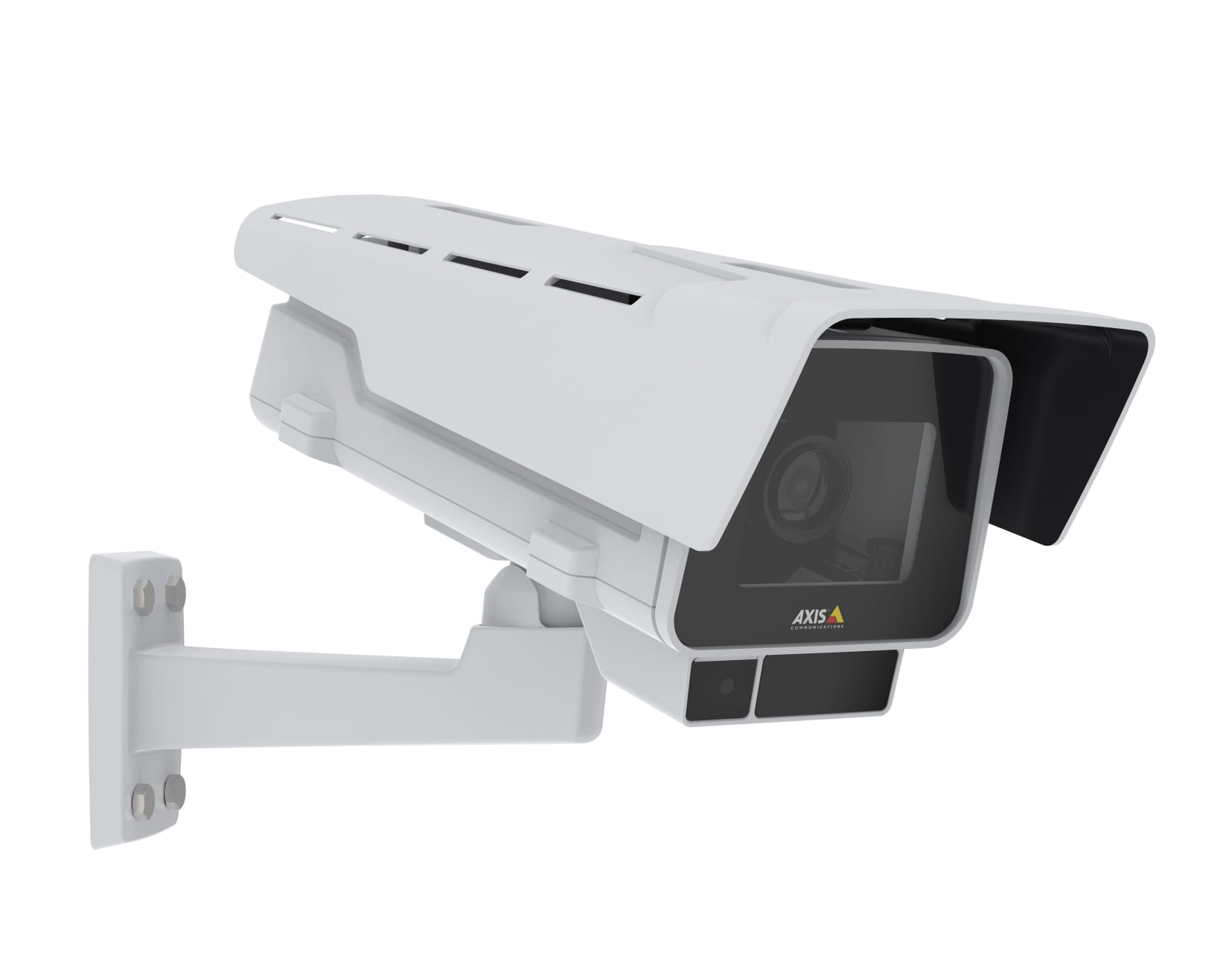

AxIS P1378-LE Network Camera offers clear, sharp images in any day or night scene. This robust, fixed box camera acts as a deterrent and is ideal for surveillance in wide, outdoor areas where a high level of detail is needed, such as at airports, cargo areas and public transportation systems.
No detail too small
With excellent 4K resolution, AxIS P1378-LE captures detailed images of fast-moving objects and people. Thanks to Axis Zipstream with support for H.264/H.265, the camera provides exceptional savings on bandwidth and storage requirements without compromising image quality. It offers scene profiles, corridor format and electronic image stabilization for stable images in situations where the camera is subject to vibrations. The camera is ideal for varous surveillance situations thanks to a CS mount and support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Light up the night
AxIS P1378-LE delivers excellent image quality regardless of the light conditions. It s designed to be reliable under rough conditions and can withstand extreme temperatures ranging from -40 degC to 60 degC (-40 degF to 140 degF). The IP66-, IP67-, IK10- and NEMA 4x-rated casing protects against water, corrosion and dust. And, AxIS P13 Weathershield Extension A is available for extra protection against snow or rain and to prevent reflections. It features Axis OptimizedIR for surveillance in pitch darkness up to 80m or more as well as barrel distortion correction and defogging functionality. Furthermore, it offers Axis Forensic WDR and Axis Lightfinder for sharp, color images in poor lighting conditions. Plus, there s a video streaming indicator making it easy to check that the video is up and running.
Keeping you secure
AxIS P1378-LE is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it offers shock detection as well as a tampering alarm so you can be informed if there s any attempts to interfere with the camera, such as blocking or spray painting.
No detail too small
With excellent 4K resolution, AxIS P1378-LE captures detailed images of fast-moving objects and people. Thanks to Axis Zipstream with support for H.264/H.265, the camera provides exceptional savings on bandwidth and storage requirements without compromising image quality. It offers scene profiles, corridor format and electronic image stabilization for stable images in situations where the camera is subject to vibrations. The camera is ideal for varous surveillance situations thanks to a CS mount and support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Light up the night
AxIS P1378-LE delivers excellent image quality regardless of the light conditions. It s designed to be reliable under rough conditions and can withstand extreme temperatures ranging from -40 degC to 60 degC (-40 degF to 140 degF). The IP66-, IP67-, IK10- and NEMA 4x-rated casing protects against water, corrosion and dust. And, AxIS P13 Weathershield Extension A is available for extra protection against snow or rain and to prevent reflections. It features Axis OptimizedIR for surveillance in pitch darkness up to 80m or more as well as barrel distortion correction and defogging functionality. Furthermore, it offers Axis Forensic WDR and Axis Lightfinder for sharp, color images in poor lighting conditions. Plus, there s a video streaming indicator making it easy to check that the video is up and running.
Keeping you secure
AxIS P1378-LE is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn t been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it offers shock detection as well as a tampering alarm so you can be informed if there s any attempts to interfere with the camera, such as blocking or spray painting.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| PTZ modes | Digital PTZ |
| PTZ protocols | Pelco-D |
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Alarm input/output |
|
| Remote viewing |
|
| Infrared (IR) cut-off filter |
|
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, CC KN32 Class A, KN35, IEC/EN/UL 62368-1, NIST SP500–267 |
| Design | |
| Form factor The shape or design of the product. | Box |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| LED indicators |
|
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Shatterproof |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK10 |
| Weatherproof |
|
| Fog proof |
|
| Camera | |
| Camera pan control |
|
| Camera tilt control |
|
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 115° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 61° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/8500 - 1/5 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2 mm (1 / 2") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Focus | Motorized/Manual |
| Maximum aperture number | 1.5 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 3.9 - 10 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 5 MP |
| Video compression formats | H.264,H.265,MPEG |
| Frame rate | 30 fps |
| Video streaming |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Audio | |
| Audio system System used to play music or speech. | 2-way |
| Audio system full duplex |
|
| Built-in microphone Microphone that is found inside the product. |
|
| Voice codecs | G.711,G.726 |
| Audio detection |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af,IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 2000 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Terminal block port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems. |
|
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 11.1 W |
| Power consumption (max) The maximum amount of power used by the device. | 19.9 W |
| Power consumption (Power over Ethernet (PoE)) | 11.7 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 404 mm |
| Depth The distance from the front to the back of something. | 159 mm |
| Height The measurement of the product from head to foot or from base to top. | 168 mm |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Manual |
|
| SKU | 455606 |
| MPN | 01811-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
