Axis P1377-LE, IP security camera, Outdoor, Wired, Digital PTZ, Pelco-D, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,...

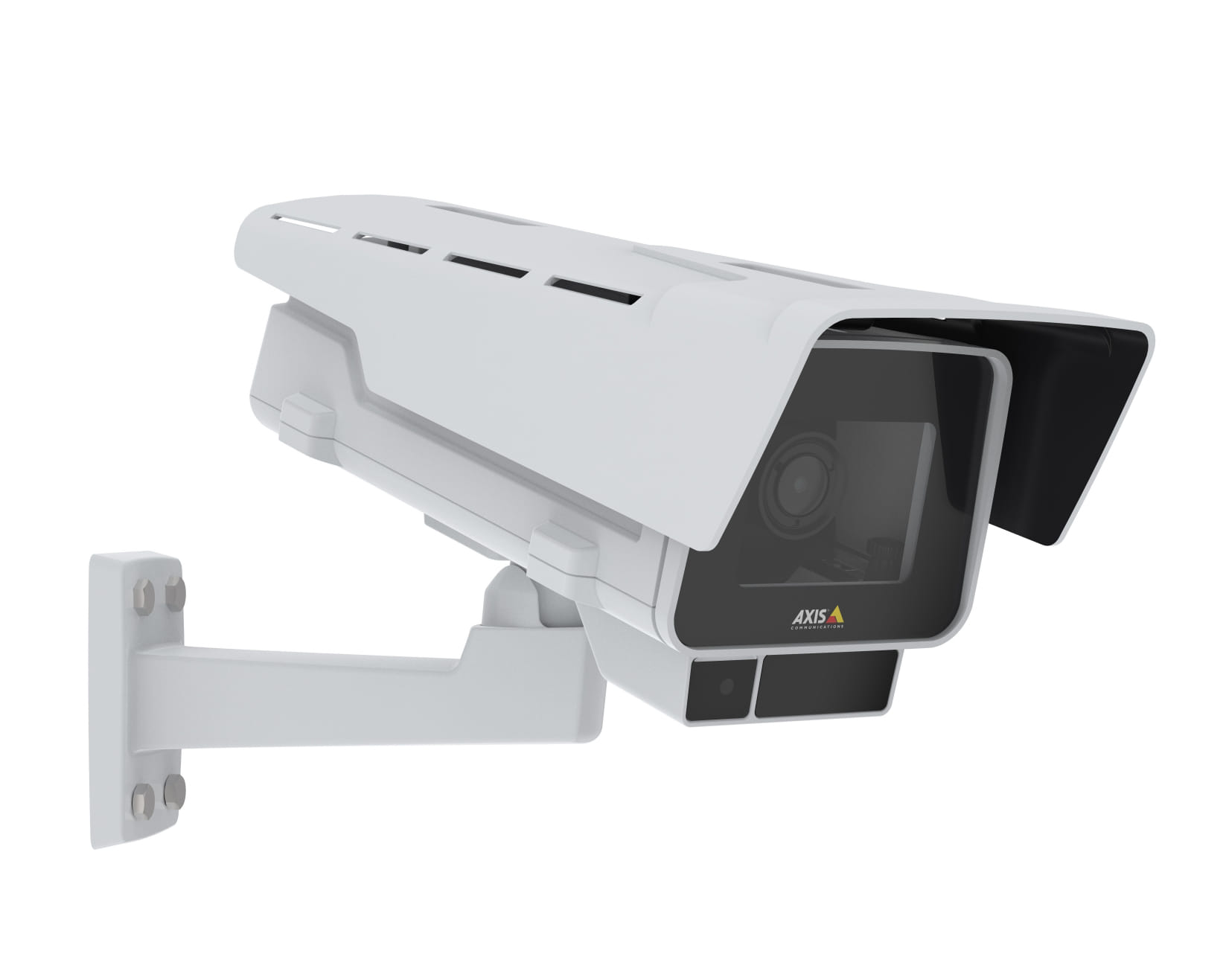

AXIS P1377-LE Network Camera
Fully-equipped 5 MP surveillance for the great outdoors
AXIS P1377-LE Network Camera offers fast performance and sharp images in any day or night scene. This robust, fixed box camera acts as a deterrent and is ideal for surveillance in wide outdoor areas where a high level of detail is needed, such as at airports, cargo areas and public transportation systems.
Ready for the rough stuff every time
AXIS P1377-LE captures detailed images of fast-moving objects and people, and it's designed to be reliable in extreme temperatures ranging from -40 DegC to 60 DegC (-40 DegF to 140 DegF). It offers electronic image stabilization for stable images in situations where the camera is subject to vibrations. The IP66-, IP67-, IK10- and NEMA 4X-rated casing protects against water, corrosion and dust. And, AXIS P13 Weathershield Extension A is available for extra protection against snow or rain and to prevent reflections. AXIS P1377-LE includes scene profiles, barrel distortion correction and defogging functionality to ensure clear, sharp images even in fog or smog as well as Axis Zipstream with support for H.264/H.265.
Light up the night
AXIS P1377-LE delivers excellent image quality regardless of the light conditions. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. It features Axis OptimizedIR for surveillance in pitch darkness up to 80m or more. The camera is ideal for varous surveillance situations thanks to a CS mount and support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Keeping you secure
AXIS P1377-LE is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it offers shock detection as well as a tampering alarm so you can be informed if there's any attempts to interfere with the camera, such as blocking or spray painting. Plus, there's a video streaming indicator making it easy to check that the video is up and running.
Fully-equipped 5 MP surveillance for the great outdoors
AXIS P1377-LE Network Camera offers fast performance and sharp images in any day or night scene. This robust, fixed box camera acts as a deterrent and is ideal for surveillance in wide outdoor areas where a high level of detail is needed, such as at airports, cargo areas and public transportation systems.
Ready for the rough stuff every time
AXIS P1377-LE captures detailed images of fast-moving objects and people, and it's designed to be reliable in extreme temperatures ranging from -40 DegC to 60 DegC (-40 DegF to 140 DegF). It offers electronic image stabilization for stable images in situations where the camera is subject to vibrations. The IP66-, IP67-, IK10- and NEMA 4X-rated casing protects against water, corrosion and dust. And, AXIS P13 Weathershield Extension A is available for extra protection against snow or rain and to prevent reflections. AXIS P1377-LE includes scene profiles, barrel distortion correction and defogging functionality to ensure clear, sharp images even in fog or smog as well as Axis Zipstream with support for H.264/H.265.
Light up the night
AXIS P1377-LE delivers excellent image quality regardless of the light conditions. It offers Axis Forensic WDR for high-quality images even when there's both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. It features Axis OptimizedIR for surveillance in pitch darkness up to 80m or more. The camera is ideal for varous surveillance situations thanks to a CS mount and support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Keeping you secure
AXIS P1377-LE is crammed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantees that the firmware hasn't been compromised and ensures only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added piece of mind, it offers shock detection as well as a tampering alarm so you can be informed if there's any attempts to interfere with the camera, such as blocking or spray painting. Plus, there's a video streaming indicator making it easy to check that the video is up and running.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| PTZ modes | Digital PTZ |
| PTZ protocols | Pelco-D |
| Wide Dynamic Range (WDR) |
|
| Day/night mode |
|
| Alarm input/output |
|
| Infrared (IR) cut-off filter |
|
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Certification | EN 55032 Class A,EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 ClassA, KCC KN32 Class A, KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X, NEMA TS2 2016 (Subsection 2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP67, NIST SP500–267 |
| Design | |
| Form factor The shape or design of the product. | Box |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK10 |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.03 lx |
| Lens viewing angle, horizontal | 90° |
| Lens viewing angle, vertical | 67° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/33500 - 1/5 s |
| Image sensor | |
| Number of sensors | 1 |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Zoom capability The amount that the camera lens can zoom. |
|
| Maximum aperture number | 1.2 |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 2.8 - 8 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
 |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2592 x 1944 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 5 MP |
| Video compression formats | H.264, H.265, MPEG |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720), 2592 x 1944, 2688 x 1512 |
| Supported video modes The video modes that can be displayed by the device. | 720p |
| Frame rate | 30 fps |
| Video streaming |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Audio | |
| Audio system System used to play music or speech. | 2-way |
| Audio system full duplex |
|
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, ADPCM, LPCM, PCM |
| Built-in microphone Microphone that is found inside the product. |
|
| Voice codecs | G.711, G.726 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Gigabit Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Terminal block port |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | EAP-TLS |
| HTTPS encryption |
|
| Alert notification type |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 19.1 W |
| Power consumption (Power over Ethernet (PoE)) | 20.4 W |
| DC output voltage | 28, 12 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 159 mm |
| Depth The distance from the front to the back of something. | 404 mm |
| Height The measurement of the product from head to foot or from base to top. | 168 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.4 kg |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Manual |
|
| Technical details | |
| Iris |
|
| Lens mount interface A lens mount is an interface — mechanical and often also electrical — between a photographic camera body and a lens. It is confined to cameras where the body allows interchangeable lenses, most usually the rangefinder camera, single lens reflex type or any movie camera of 16 mm or higher gauge. | CS mount |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 695096 |
| MPN | 01809-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
