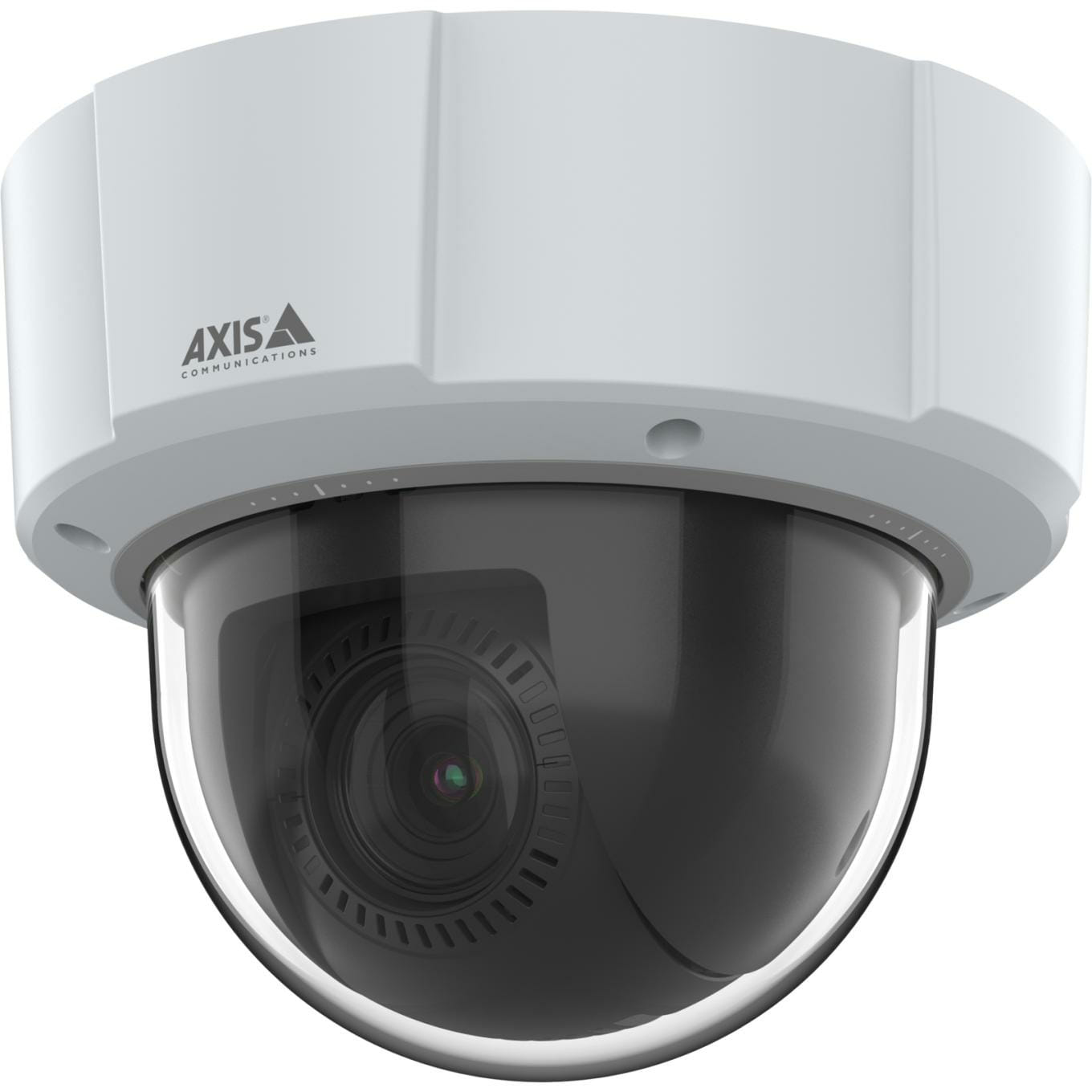

AXIS M5526-E 4MP Indoor/Outdoor HD Network Camera

Performance
Type Characteristics of the device.	IP security camera
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor & outdoor
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
PTZ control
Preset points
Wide Dynamic Range (WDR)
Day/night mode
Infrared (IR) cut-off filter
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Design
Form factor The shape or design of the product.	Dome
Mounting type Type of mounting e.g. wall mounting.	Ceiling
Product colour The colour e.g. red, blue, green, black, white.	Black, White
Housing material What the casing of the product is made of.	Plastic, Polycarbonate (PC)
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP66
IK code	IK09

Camera
Camera pan control
Camera tilt control
Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality.	0.01 lx
Lens viewing angle, horizontal	59.1 - 6.5°
Lens viewing angle, vertical	35 - 3.67°
Tilt angle range	0 - 90°
Tilt speed	150 °/sec
Pan range	0 - 360°
Pan speed	150 °/sec
Camera pixel size	1.998 µm
Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure.	1/27000 - 0.2 s

Image sensor
Number of sensors	1
Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes.	25.4 / 3 mm (1 / 3")
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CMOS

Lens system
Zoom capability The amount that the camera lens can zoom.
Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.	10x
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	12x
Number of lenses The number of lenses installed in the device.	1
Auto focus Device focusing a camera or other piece of equipment automatically.
Maximum aperture number	3
Minimum aperture number The minimum size of the hole through which light enters a camera.	1.6
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	4.7 - 47 mm
Detect distance (wide)	96 m
Detect distance (tele)	938 m
Observe distance (wide)	38 m
Observe distance (tele)	373 m
Recognize distance (wide)	19 m
Recognize distance (tele)	186 m
Identify distance (wide)	10 m
Identify distance (tele)	93 m

Video
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	2688 x 1512 pixels
Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).	4 MP
Video formats supported The type of video formats that can be used by this device.	AVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	160 x 120, 320 x 180, 1600 x 1200 (UXGA)
Frame rate	60 fps
Video streaming
Noise reduction
Noise reduction technology	2D noise reduction, 3D noise reduction
Gain control type	Auto
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking
Text caption overlay

Audio
Audio system System used to play music or speech.	2-way
Audio system full duplex
Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4.	AAC-LC, G.711, LPCM, PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity.	55 dB
Audio detection

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet interface type	Fast Ethernet
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af, IEEE 802.3at
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR
Quality of Service (QoS) support
Streaming method	Multicast

Storage
Compatible memory cards Types of memory cards which can be used with this product.	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory	8192 MB
ROM capacity	1024 MB

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Microphone in The socket where a microphone is connected to the device.
Terminal block port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Security
Video motion detection
Active tampering alarm
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS
Alert notification type	E-mail
Intelligent Video Surveillance (IVS) system features	Face detection, Human detection, Line crossing detection, Moving object, Vehicle detection
Pixel counter
Human and vehicle targets classification

Power
Power source type What the power source is.	PoE
Power consumption	3.8 mA
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	4.2 W
Power consumption (max) The maximum amount of power used by the device.	11.7 W
Power consumption (Power over Ethernet (PoE))	12.95 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-20 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C
Operating relative humidity (H-H)	15 - 100%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	165 mm
Depth The distance from the front to the back of something.	165 mm
Height The measurement of the product from head to foot or from base to top.	150 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1 kg

Features
License plate recognition

Packaging content
Number of cameras The quantity of cameras that product can support.	1
Manual

Technical details
Sustainability certificates	REACH, RoHS
Doesn't contain	PVC/BFR
