Axis M3058-PLVE, IP security camera, Indoor & outdoor, Wired, EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15..., Wall, Black, White

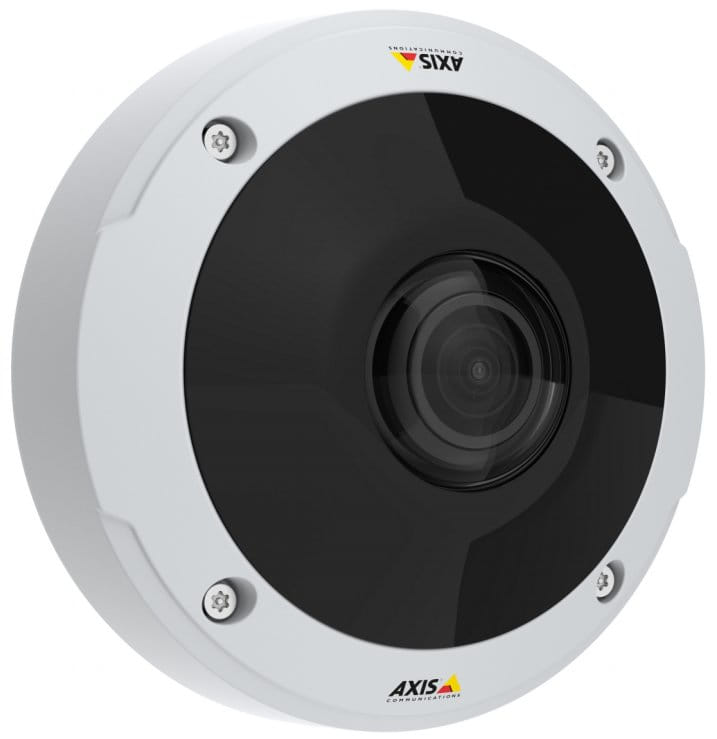

AXIS M3058-PLVE Network Camera
Need great performance in any light " or no light at all? AXIS M3058-PLVE Network Camera delivers a complete 180 Deg or 360 Deg overview, indoors or out, around the clock. Plus it features Axis Zipstream technology for reduced bandwidth and storage without sacrificing the forensic detail you need. AXIS M3058-PLVE is perfect for stores, hotels, offices, banks, schools and hospitals. Or anywhere you need a complete overview 24/7.
Here, there, everywhere " anytime
Use AXIS M3058-PLVE indoors or outdoors for a wide variety of purposes anytime of the day or night. Thanks to OptimizedIR and a long list of features that spell, flexible. With the optional black skin cover you can repaint AXIS M3058-PLVE " easily " and it blends in anywhere. And count on the IK10 rating for protection against vandalism and the IP66 rating to keep the camera safe from dust and powerful blasts of water. Which means exposure to the elements is no problem. You can stream the complete 360 Deg overview. That way you can be sure that you record everything with no blind spots. And the video management software can use that one video stream to produce any dewarped views you d like. Or you can choose to stream dewarped views such as panorama, quad, corner and corridor views directly from the camera. And you can digitally pan, tilt and zoom in on areas of interest in up to four areas simultaneously.
Sharp to the edges " in any light
AXIS M3058-PLVE is made to deliver sharp images, to the edges, in any light " or no light: OptimizedIR means this camera can see in the dark " so there s no need to turn on the lights at night. It s equipped with Forensic WDR for visibility when there are both dark and light areas in the same scene. And AXIS M3058-PLVE has Lightfinder technology for life-like colors when the lighting is low. AXIS M3058-PLVE features a stereographic lens. This lens achieves a higher resolution around the outer portion of the view than in the center, meaning that interesting objects located at a distance in the camera s peripheral view can be captured more clearly. This is particularly useful when the camera is installed facing downwards.
Sharp images. Low bandwidth
AXIS M3058-PLVE includes Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. Important details in these areas are preserved in full video quality, while other areas are more compressed, reducing storage and bandwidth by up to 50%. The result is high-quality video and significant savings.
Installation that s as easy as 1,2,3
Installing and setting up AXIS M3058-PLVE is fast, simple and cost effective. AXIS M3058-PLVE is factory focused and ready to use, right out of the box. AXIS M3058-PLVE also has I/O ports, so you can connect a sensor or detector to the camera s digital input to trigger alarms or actions. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm.
Need great performance in any light " or no light at all? AXIS M3058-PLVE Network Camera delivers a complete 180 Deg or 360 Deg overview, indoors or out, around the clock. Plus it features Axis Zipstream technology for reduced bandwidth and storage without sacrificing the forensic detail you need. AXIS M3058-PLVE is perfect for stores, hotels, offices, banks, schools and hospitals. Or anywhere you need a complete overview 24/7.
Here, there, everywhere " anytime
Use AXIS M3058-PLVE indoors or outdoors for a wide variety of purposes anytime of the day or night. Thanks to OptimizedIR and a long list of features that spell, flexible. With the optional black skin cover you can repaint AXIS M3058-PLVE " easily " and it blends in anywhere. And count on the IK10 rating for protection against vandalism and the IP66 rating to keep the camera safe from dust and powerful blasts of water. Which means exposure to the elements is no problem. You can stream the complete 360 Deg overview. That way you can be sure that you record everything with no blind spots. And the video management software can use that one video stream to produce any dewarped views you d like. Or you can choose to stream dewarped views such as panorama, quad, corner and corridor views directly from the camera. And you can digitally pan, tilt and zoom in on areas of interest in up to four areas simultaneously.
Sharp to the edges " in any light
AXIS M3058-PLVE is made to deliver sharp images, to the edges, in any light " or no light: OptimizedIR means this camera can see in the dark " so there s no need to turn on the lights at night. It s equipped with Forensic WDR for visibility when there are both dark and light areas in the same scene. And AXIS M3058-PLVE has Lightfinder technology for life-like colors when the lighting is low. AXIS M3058-PLVE features a stereographic lens. This lens achieves a higher resolution around the outer portion of the view than in the center, meaning that interesting objects located at a distance in the camera s peripheral view can be captured more clearly. This is particularly useful when the camera is installed facing downwards.
Sharp images. Low bandwidth
AXIS M3058-PLVE includes Axis Zipstream technology, which analyses the video stream in real time to identify areas of interest. Important details in these areas are preserved in full video quality, while other areas are more compressed, reducing storage and bandwidth by up to 50%. The result is high-quality video and significant savings.
Installation that s as easy as 1,2,3
Installing and setting up AXIS M3058-PLVE is fast, simple and cost effective. AXIS M3058-PLVE is factory focused and ready to use, right out of the box. AXIS M3058-PLVE also has I/O ports, so you can connect a sensor or detector to the camera s digital input to trigger alarms or actions. Output ports can be connected to control devices or relays, for instance, to open/close doors or turn on/off lights upon alarm.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor & outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ control |
 |
| Wide Dynamic Range (WDR) |
|
| Alarm input/output |
|
| Infrared (IR) cut-off filter |
|
| Certification | EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X |
| Design | |
| Form factor The shape or design of the product. | Dome |
| Mounting type Type of mounting e.g. wall mounting. | Wall |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Housing material What the casing of the product is made of. | Aluminium |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Vandal proof |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| IK code | IK10 |
| Camera | |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.04 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 181° |
| Lens viewing angle, vertical | 181° |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/22500 - 2 s |
| Image sensor | |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 1.7 mm (1 / 1.7") |
| Progressive scan Also referred to as noninterlaced scanning, this is a way of displaying, storing, or transmitting moving images in which all the lines of each frame are drawn in sequence. This is in contrast to interlaced video used in traditional analog television systems where only the odd lines, then the even lines of each frame (each image called a video field) are drawn alternately.Progressive scan is used for DVDs and HDTV (high defintion television). |
|
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Number of effective pixels (H x V) | 4000 x 3000 pixels |
| Lens system | |
| Fixed focus |
|
| Maximum aperture number | 2.2 |
| Fixed focal length | 1.2 mm |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 15 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3584 x 2688 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 12 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1920 |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Frame rate | 30 fps |
| Video streaming |
|
| Gain control type | Auto |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Privacy masking |
|
| Text caption overlay |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, HDMI 1.4b |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Quality of Service (QoS) support |
|
| Streaming method | Multicast |
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
|
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD, SDHC, SDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Terminal block port |
|
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| HTTPS encryption |
|
| Alert notification type |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (max) The maximum amount of power used by the device. | 12.95 W |
| Power consumption (Power over Ethernet (PoE)) | 7.8 W |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 66 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 14.9 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 770 g |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Mounting brackets included |
|
| Technical details | |
| Iris |
|
| Removable IR-cut filter |
|
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 702224 |
| MPN | 01178-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
