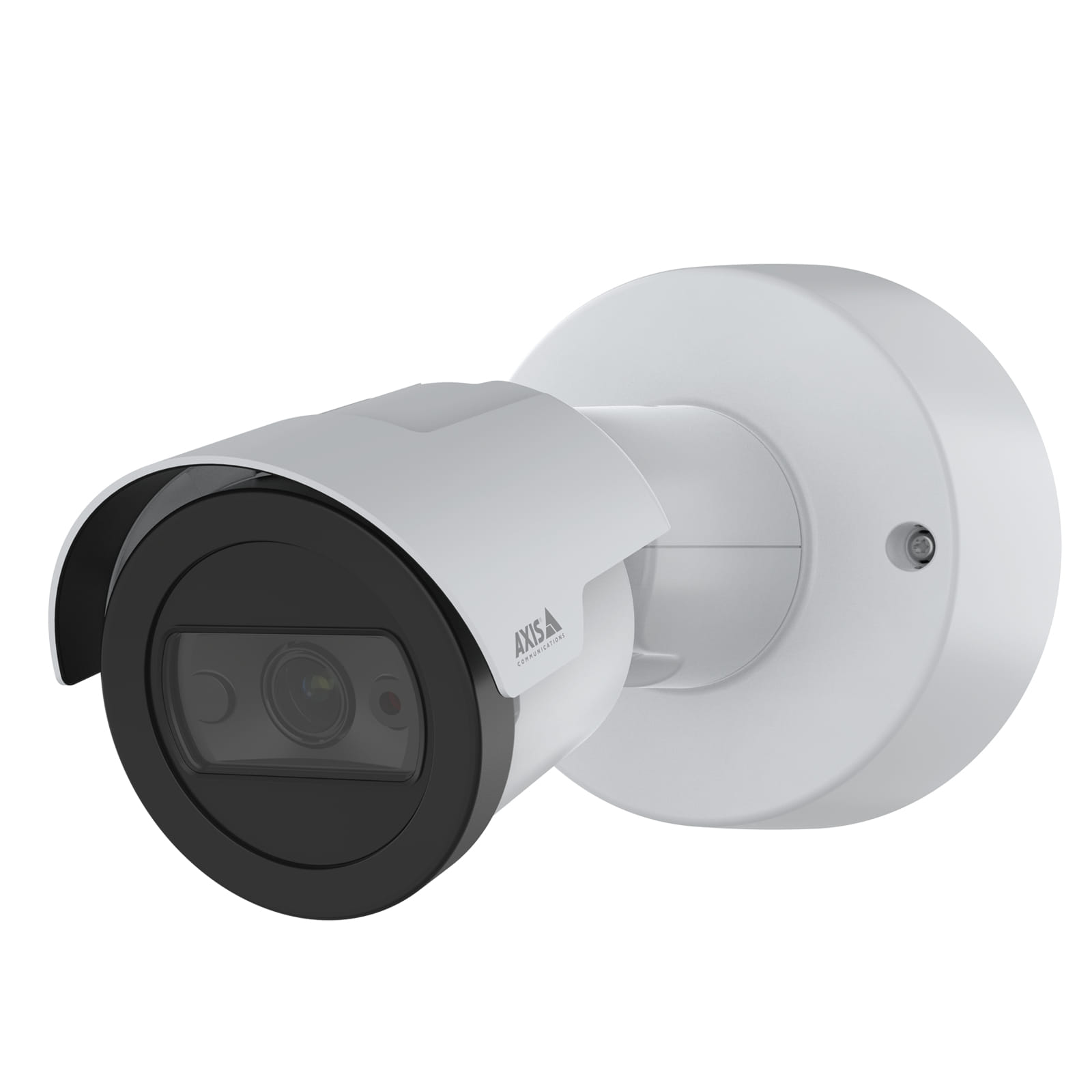

Axis M2036-LE, IP security camera, Outdoor, Wired, Digital PTZ, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,..., CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B...
4 MP affordable camera with deep learning
Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it s easy to install and supports analytics with deep learning.
Affordable Axis excellence
AXIS M2036-LE delivers Quad HD 1440p/4 MP and a horizontal field of view of 129 Deg. With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles "all tailored to your specific needs. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there s both dark and light areas in the scene.
Top performance in tough conditions
Ideal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures as low as -30 DegC and as high as 50 DegC (-22 F to 122 F). It includes an integrated sunshield for protection against sun and rain. Additionally, with IP66, IP67, and NEMA 4X ratings, it s resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker
Installation that s as easy as 1,2,3
This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there s no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, AXIS M2036-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.
Ideal for tough environments, this outdoor-ready bullet-style camera offers affordable Axis excellence. Lightweight and compact in design, it s easy to install and supports analytics with deep learning.
Affordable Axis excellence
AXIS M2036-LE delivers Quad HD 1440p/4 MP and a horizontal field of view of 129 Deg. With a deep learning processing unit (DLPU), you can benefit from applications based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles "all tailored to your specific needs. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This outdoor-ready bullet-style camera features built-in IR illumination, enabling unobtrusive surveillance in total darkness. Wide Dynamic Range (WDR) ensures clarity even when there s both dark and light areas in the scene.
Top performance in tough conditions
Ideal for both hot and cold environments, this IK08-rated bullet camera can withstand temperatures as low as -30 DegC and as high as 50 DegC (-22 F to 122 F). It includes an integrated sunshield for protection against sun and rain. Additionally, with IP66, IP67, and NEMA 4X ratings, it s resistant to rough weather, dust, sand, salt spray, ice formation, and high-water pressure. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis outdoor horn speaker
Installation that s as easy as 1,2,3
This small, lightweight bullet-style camera offers cost-efficient installation both indoors and outdoors. A spacious, sealed back box ensures secure cable management and offers installers greater accessibility, freedom of movement, and future serviceability. Delivered with a factory-focused lens, there s no need for hands-on fine-tuning saving you time and effort. This easy-to-handle camera supports Power over Ethernet (PoE) so you can connect directly to your IP network with just one network cable for connectivity and power. Furthermore, AXIS M2036-LE offers flexible installation; outdoors or indoors, on walls, ceilings, poles, or in corners.
| Performance | |
| Type Characteristics of the device. | IP security camera |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) |
 |
| Day/night mode |
|
| Infrared (IR) cut-off filter |
|
| Number of languages | 12 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Certification | CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A IEC/EN 62368-1, IEC 62471, IS 13252 IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08 NIST SP500-267 |
| Design | |
| Form factor The shape or design of the product. | Bullet |
| Mounting type Type of mounting e.g. wall mounting. | Ceiling/wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | Aluminium, Plastic |
| Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. | Dust resistant, Vandal proof, Water resistant |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66, IP67 |
| IK code | IK08 |
| Camera | |
| Lens viewing angle, horizontal | 130° |
| Lens viewing angle, vertical | 81° |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Auto |
| Camera shutter speed Determines the length of time the shutter lets light pass through the lens to the CCD. Shutter speed and aperture together determine exposure. | 1/38500 - 1/5 s |
| Image sensor | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Lens system | |
| Number of lenses The number of lenses installed in the device. | 1 |
| Maximum aperture number | 2.1 |
| Fixed focal length | 2.4 mm |
| Closest focusing distance | 0.5 m |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Night vision distance | 20 m |
| LED type | IR |
| Infra-red wavelength | 855 nm |
| Video | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2304 x 1728 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 4 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 2668 x 1512, 2304 x 1728 |
| Supported video modes The video modes that can be displayed by the device. | 1440p |
| Video recording Recording moving visual images. |
|
| Video intelligence analytic |
|
| Video streaming |
|
| Privacy masking |
|
| Text caption overlay |
|
| Image stabilizer This camera function compensates for slight shaking movements caused by an unstable position and ensures smooth footage even in suboptimal conditions. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet interface type | Fast Ethernet |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1 |
| Quality of Service (QoS) support |
|
| Storage | |
| Built-in HDD The product has a hard drive built into it. |
 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC |
| Flash memory | 512 MB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Security | |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Video motion detection |
|
| Active tampering alarm |
|
| IP address filtering |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, EAP-TLS, HTTPS, SSH |
| HTTPS encryption |
|
| Alert notification type |
| Power | |
| Power source type What the power source is. | PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| Power consumption (max) The maximum amount of power used by the device. | 12.95 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -30 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Weight & dimensions | |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 10.1 cm |
| Length The measurement or extent of something from end to end. | 170 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 491 g |
| Packaging content | |
| Number of cameras The quantity of cameras that product can support. | 1 |
| Technical details | |
| Doesn't contain | BFR, PVC |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
| SKU | 698708 |
| MPN | 02125-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
