Axis 0878 006, 1920 x 1080 pixels, 4 channels, 480p, 576p, 720p, 1080p, 1024 MB, AAC LC, ADPCM, G.711, G.726, OPUS, PCM, AVC, H.264, M JPEG, MPEG4

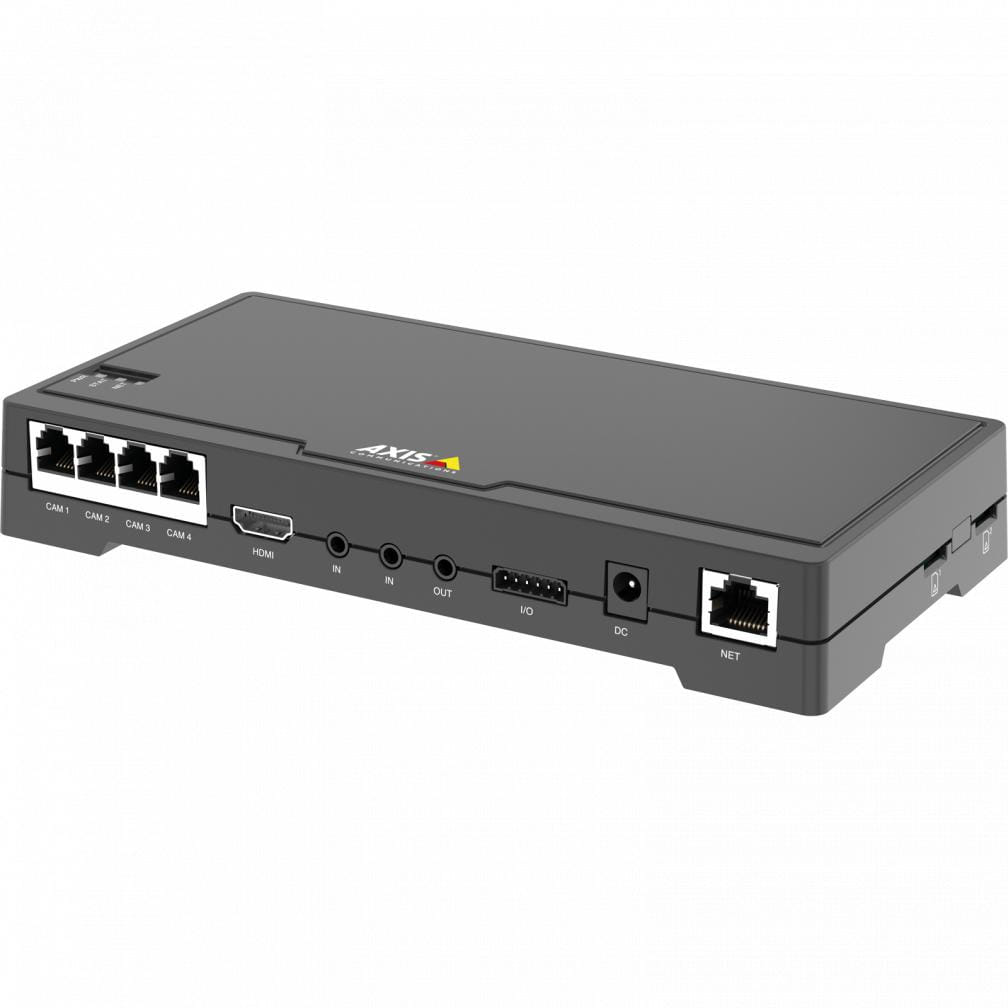

AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address. Ideal for retail applications, AXIS FA54 also supports quad view streaming and has an HDMITM port for connection to a surveillance or public view monitor. The unit uses Forensic WDR (wide dynamic range) that is tuned for motion. Axis Zipstream video compression technology reduces bandwidth and storage requirements.
| Performance | |
| Number of simultaneously playbacked channels | 4 channels |
| Video recording modes | 480p, 576p, 720p, 1080p |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AAC-LC, ADPCM, G.711, G.726, OPUS, PCM |
| Video formats supported The type of video formats that can be used by this device. | AVC, H.264, M-JPEG, MPEG4 |
| Languages support The product has support (help) for languages. | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Recording modes The different ways in which this device can record. | Event |
| Audio system System used to play music or speech. | 2-way |
| Wireless LAN features | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Storage | |
| Total installed storage capacity As is, how much storage capacity does the product have. | 0.512 GB |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| HDMI output The device features an HDMI output. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Line-in |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Features | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power consumption (max) The maximum amount of power used by the device. | 30 W |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 14 W |
| Output voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Doesn't contain | PVC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 202 mm |
| Depth The distance from the front to the back of something. | 102 mm |
| Height The measurement of the product from head to foot or from base to top. | 31 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 442 g |
| Packaging content | |
| AC adapter included |
|
| Quick installation guide |
|
| SKU | 746840 |
| MPN | 0878-006 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
