Axis D8208 R, Managed, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE)

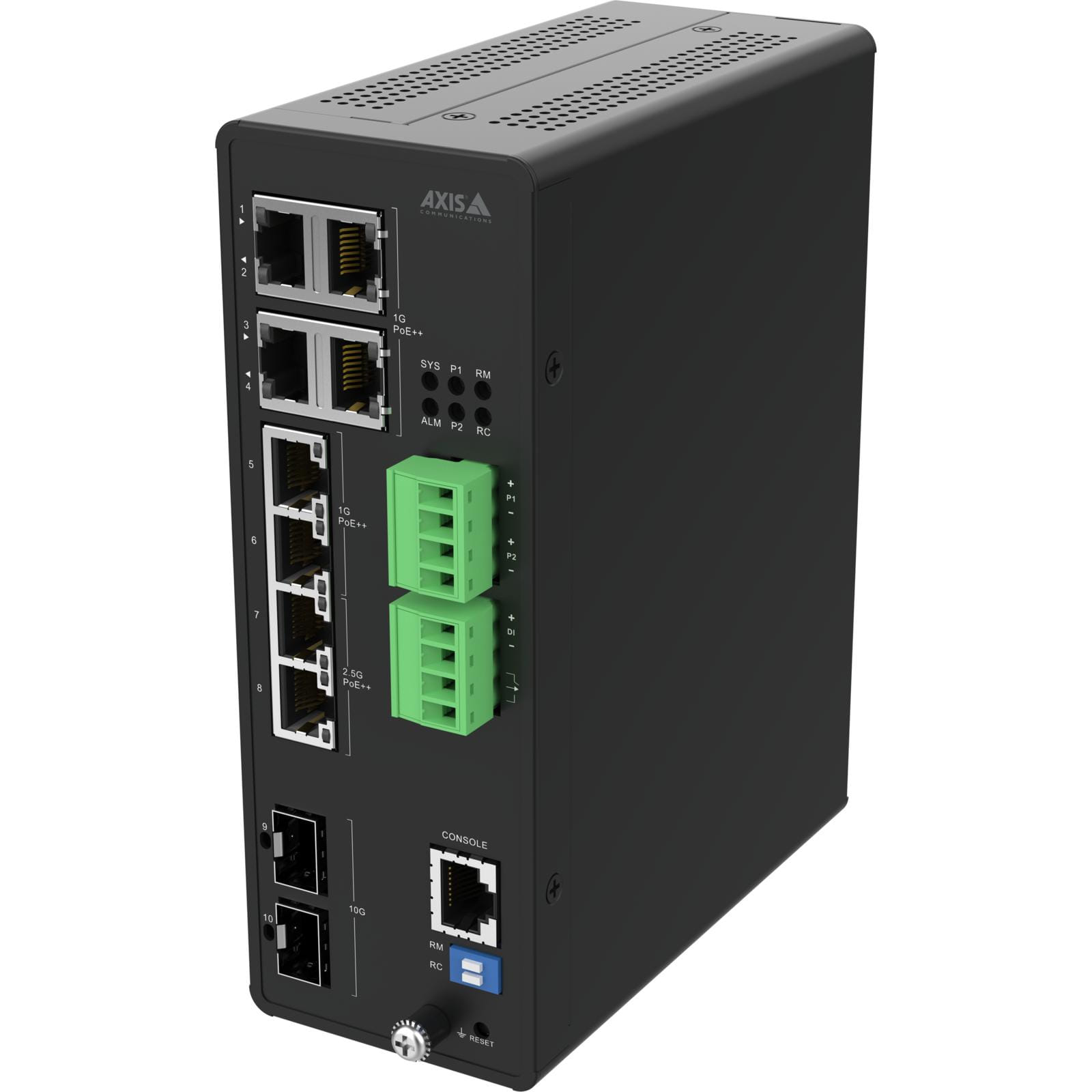

AXIS D8208 R Industrial PoE Switch
Managed, 8 port industrial PoE switch
This 8 port managed industrial PoE Gigabit switch includes two SFP data ports allowing you to connect extra devices depending on your needs.
For demanding installations
This ruggedized industrial switch is developed for challenging environments when mounted inside a surveillance cabinet. Designed to withstand shock and vibrations, it can handle temperatures from 40 DegC to 60 DegC ( 40 DegF to 140 DegF). This makes it ideal for demanding installations such as alongside highways and tunnels, and in industrial and outdoor environments like railways and harbors.
Flexible installations
This rugged 8 port switch can deliver up to 90 W PoE (IEEE 802.3bt) per port, with a total power budget of 480 W. In addition, two SFP ports with 10 Gbit SFP uplink allows for long distance installations.
Easy to install and configure
AXIS D8208 R ensures easy configuration with Axis products. The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. Plus, it provides information, status, and notifications about connected devices. This allows you to manage all connected devices, reboot cameras in the system, monitor network traffic and cable diagnostics, and much more.
Managed, 8 port industrial PoE switch
This 8 port managed industrial PoE Gigabit switch includes two SFP data ports allowing you to connect extra devices depending on your needs.
For demanding installations
This ruggedized industrial switch is developed for challenging environments when mounted inside a surveillance cabinet. Designed to withstand shock and vibrations, it can handle temperatures from 40 DegC to 60 DegC ( 40 DegF to 140 DegF). This makes it ideal for demanding installations such as alongside highways and tunnels, and in industrial and outdoor environments like railways and harbors.
Flexible installations
This rugged 8 port switch can deliver up to 90 W PoE (IEEE 802.3bt) per port, with a total power budget of 480 W. In addition, two SFP ports with 10 Gbit SFP uplink allows for long distance installations.
Easy to install and configure
AXIS D8208 R ensures easy configuration with Axis products. The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. Plus, it provides information, status, and notifications about connected devices. This allows you to manage all connected devices, reboot cameras in the system, monitor network traffic and cable diagnostics, and much more.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| ARP inspection |
 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (copper) ports quantity | 6 |
| 2.5G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 2 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 62 Gbit/s |
| Throughput | 46.12 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Jumbo frames support |
|
| Jumbo frames | 10240 |
| Security | |
| DHCP features | DHCP snooping |
| Access Control List (ACL) |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | HTTPS |
| Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure. |
|
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Aluminium |
| Certification | EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 ed. 3 Environment IEC 60068-2-6, IEC 60068-2-27, NEMA TS 2 (2.2.7-2.2.9), 60068-2-31 (Free fall - Procedure 1), IEC/EN 60529 IP30 |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 480 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 62 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 168 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 892 g |
| SKU | 716999 |
| MPN | 02621-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
