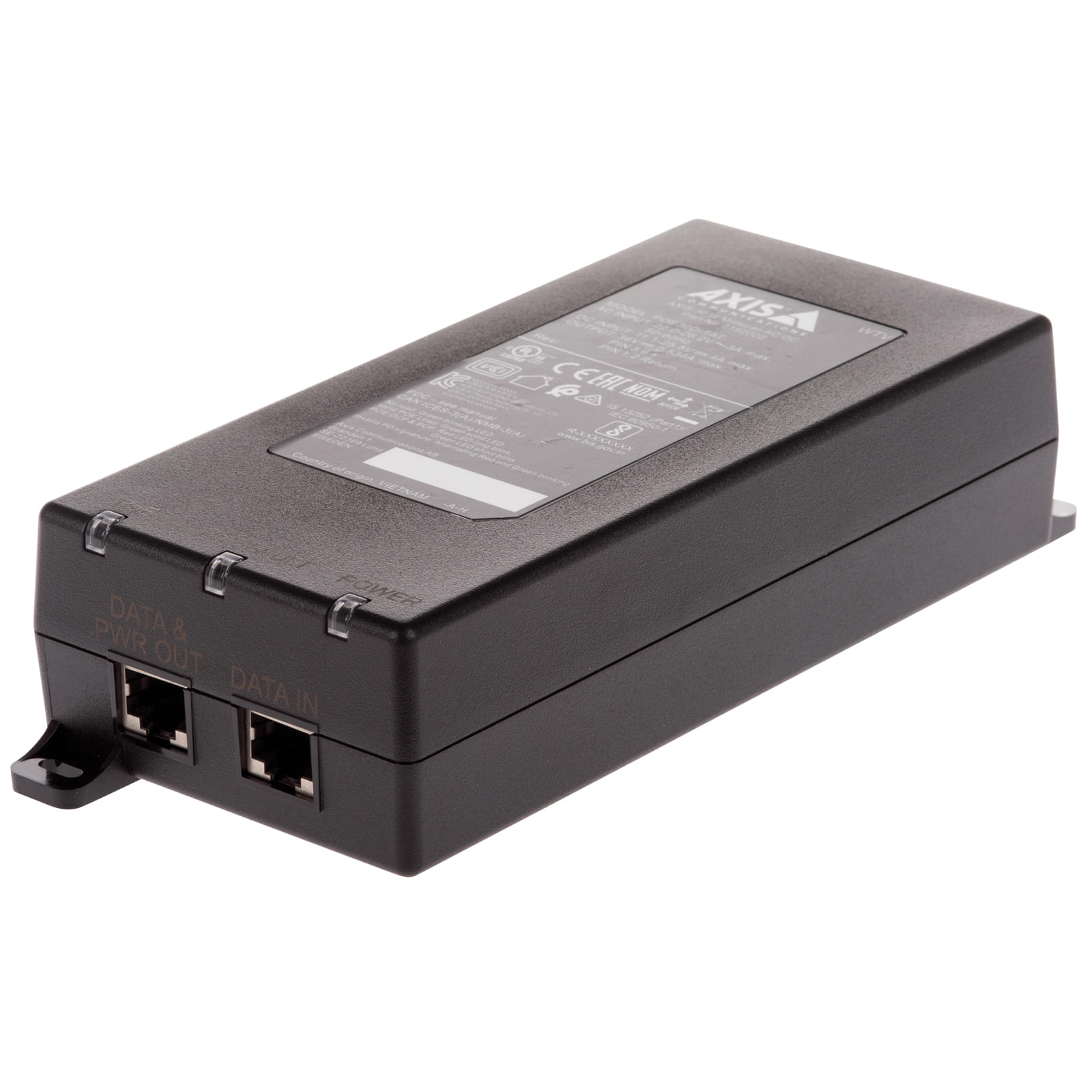

Axis 02209 001, IEEE 802.3bt, Black, 90 W, 20 26.4 V, 1 pc(s)
AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20 26.4 V DC, it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug and play and compatible with all Axis PoE devices which require up to 90 W power.
24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.
20 26.4 V DC can be used where battery back up is needed or for solar powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box, dome or PTZ cameras.
20 26.4 V DC can be used where battery back up is needed or for solar powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
| Network | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3bt |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output power The power that the device can produce. | 90 W |
| Input voltage The voltage (V) which is required to power the product. | 20 - 26.4 V |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
| SKU | 725615 |
| MPN | 02209-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Adapter Type | Power Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
