Axis 01944 001, Midspan, Outdoor, Black, Grey, Axis, Aluminium, IP66

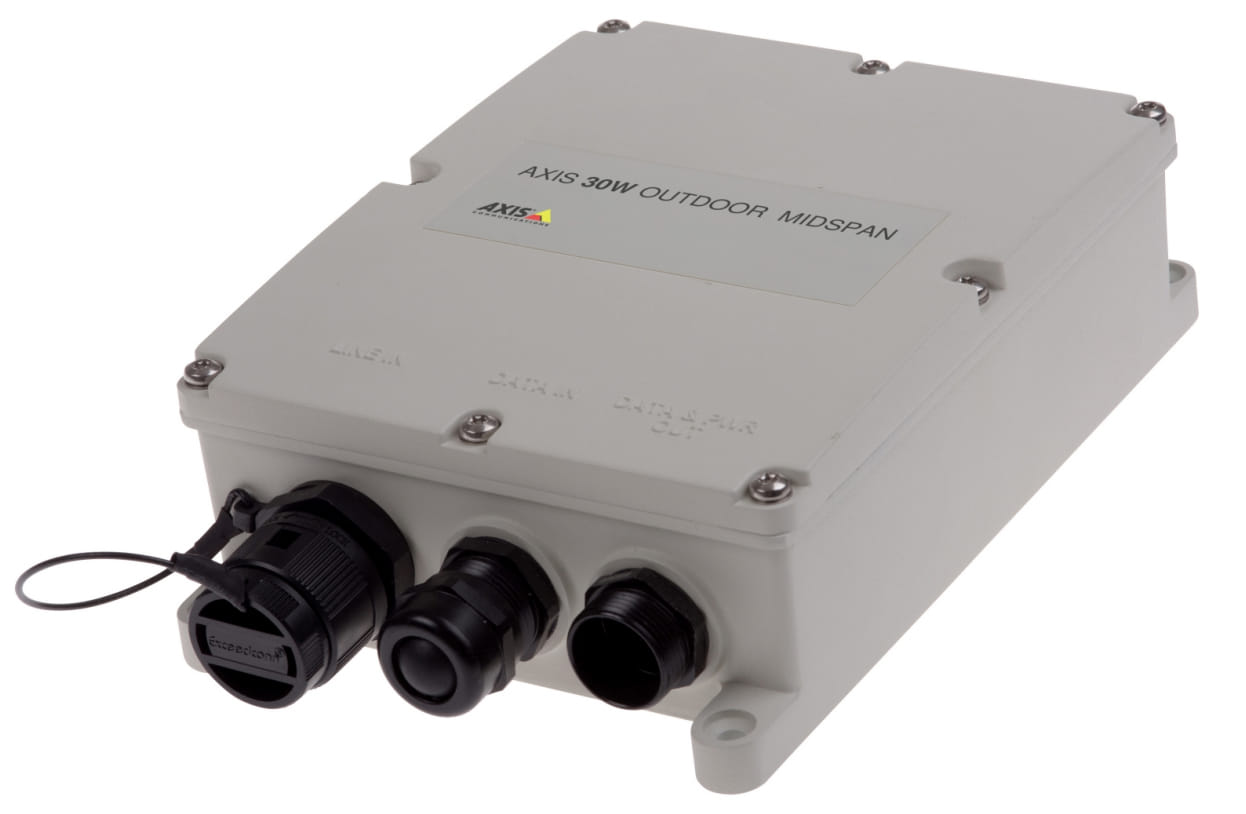

AXIS 30 W Outdoor Midspan
The outdoor ready midspan is IP66/IP67 and NEMA 4X rated, with extended temperature range up to 40 DegC to 65 DegC ( 40 DegF to 149 DegF). The midspan offers surge protection up to 6kV for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66/IP67 rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 30W midspan is compatible with IEEE 802.3af and IEEE 802.3at supported devices
The outdoor ready midspan is IP66/IP67 and NEMA 4X rated, with extended temperature range up to 40 DegC to 65 DegC ( 40 DegF to 149 DegF). The midspan offers surge protection up to 6kV for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66/IP67 rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 30W midspan is compatible with IEEE 802.3af and IEEE 802.3at supported devices
| Features | |
| Type Characteristics of the device. | Midspan |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Outdoor |
| Brand compatibility What other brands this brand can be used with. | Axis |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Housing material What the casing of the product is made of. | Aluminium |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Ergonomics | |
| Number of connectors The quantity of ports (sockets) where external devices can be connected to this product. | 3 |
| Power | |
| Rated power The maximum active power under the rated operation conditions. | 30 W |
| Input voltage The voltage (V) which is required to power the product. | 100-240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output voltage | 54 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 170 mm |
| Depth The distance from the front to the back of something. | 140 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.4 kg |
| Packaging content | |
| Quick installation guide |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85299020 |
| SKU | 705563 |
| MPN | 01944-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
| Stock Availability | Available for Shipping |
