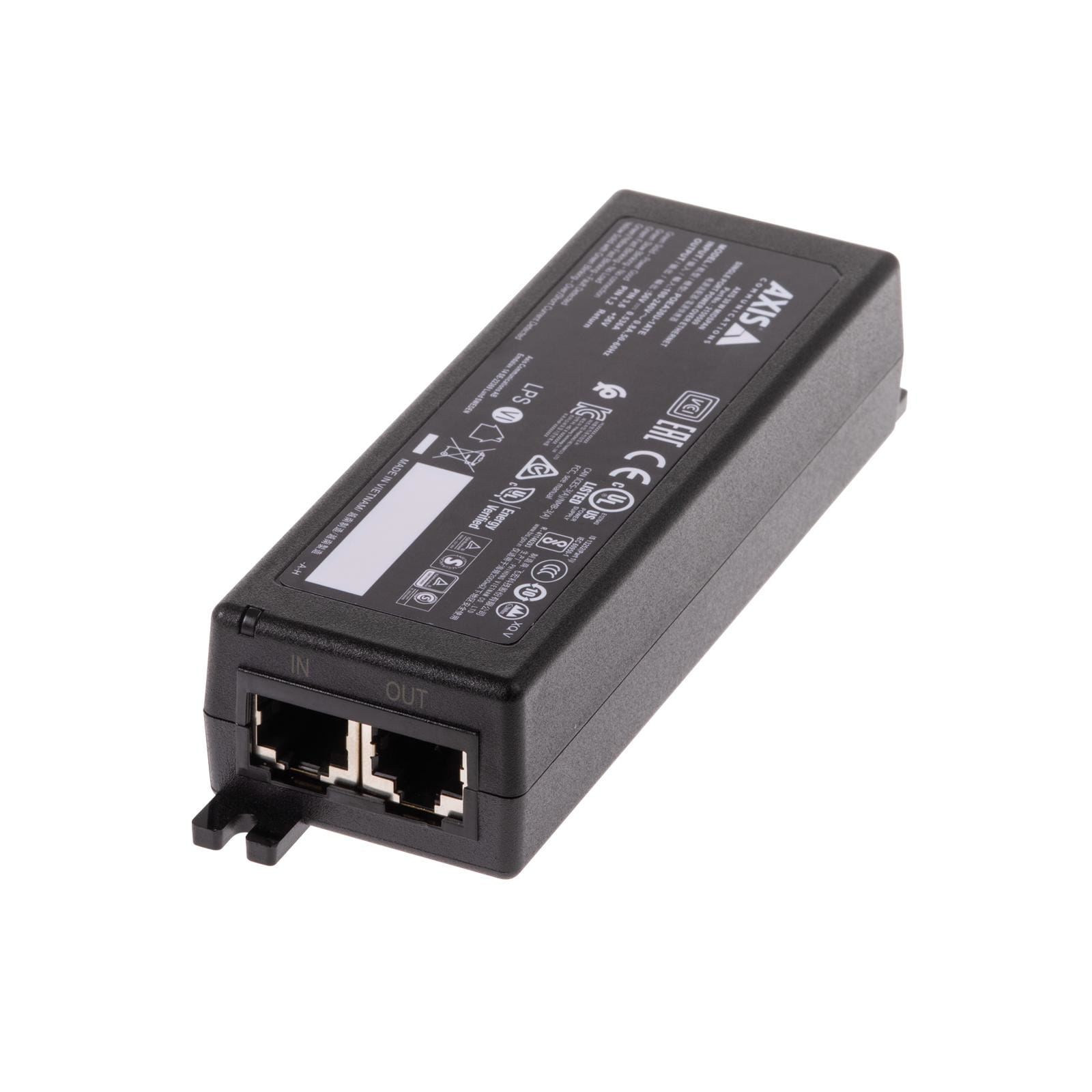

Axis 02172-006, Midspan, Indoor, Black, Axis, Plastic, Wired
AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.
| Features | |
| Type Characteristics of the device. | Midspan |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Brand compatibility What other brands this brand can be used with. | Axis |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| LED indicators |
 |
| Ergonomics | |
| Number of connectors The quantity of ports (sockets) where external devices can be connected to this product. | 2 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Power | |
| Rated power The maximum active power under the rated operation conditions. | 30 W |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 47 - 63 Hz |
| Output voltage | 56 V |
| Power source type What the power source is. | PoE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 46 mm |
| Depth The distance from the front to the back of something. | 140.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 145 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick installation guide |
|
| Packaging content | Installation guide, Cable Mains IEC-C13 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 75 °C |
| Technical details | |
| Doesn't contain | Halogen, PVC |
| Warranty period | 3 year(s) |
| SKU | 752324 |
| MPN | 02172-006 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
| Stock Availability | Available for Shipping |
