Axis 02208-001, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, Black, IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC..., 56 V

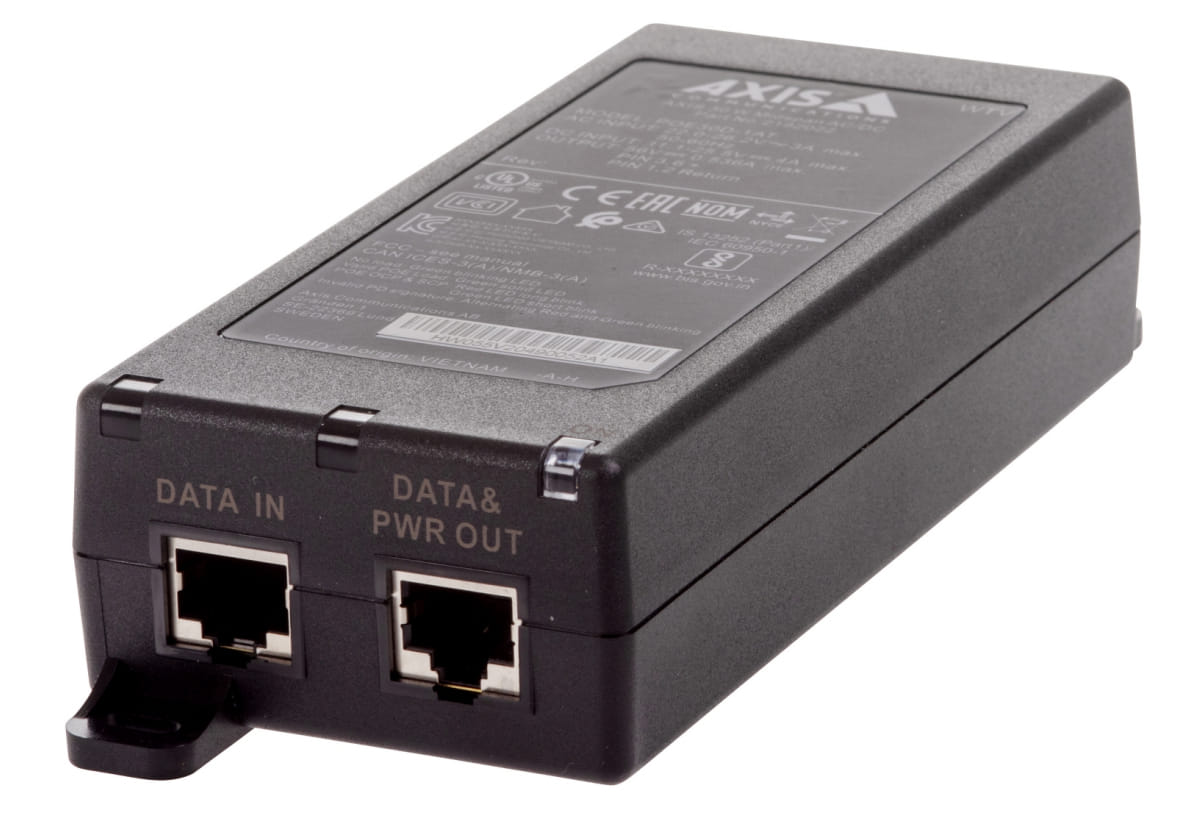

AXIS 30 W Midspan AC/DC
AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power. 24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras. 10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Wall mountable The product can be mounted on (attached to ) a wall. |
 |
| LED indicators |
|
| Certification | IS 13252, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC 60068-2-27, 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, EAC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) voltage One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. | 56 V |
| Output power The power that the device can produce. | 30 W |
| Input voltage The voltage (V) which is required to power the product. | 10-18 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 75 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 65 mm |
| Depth The distance from the front to the back of something. | 164 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 233 g |
| Technical details | |
| Doesn't contain | PVC |
| Harmonized System (HS) code | 85044090 |
| SKU | 695138 |
| MPN | 02208-001 |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.axis.com/ |
