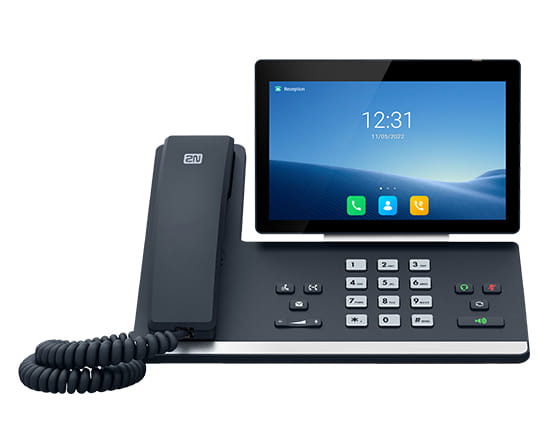

AXIS 2N IP Phone D7A

Design
Product type The sub-category of the product.	IP Phone
Handset type	Wired handset
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info

Phone features
Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy).
Call waiting
Call hold
Call forwarding
Redialing
Phonebook capacity The number of names/numbers that can be stored in the phonebook of a phone.	1000 entries
Phonebook sharing
Call return
Call transfer
Call history
SIP registrar server
Emergency call

Management features
Volume control	Buttons
Keypad number of keys	27
Number of function keys	7

Display
Display The description of display that can includes display type, resolution, size etc.	LCD
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	17.8 cm (7")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1024 x 600 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.	Capacitive

Camera
Front camera resolution (numeric)	5 MP
Field of view (FOV) angle	75°
Camera privacy shutter

Audio
Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone.
Microphone mute
Voice codecs	G.711a, G.711u, G.722, G.723.1, G.726, G.729, iLBC

Video
Video call Simultaneous video and audio signals to enable people to talk to and see each other in real time.
Bit rate	512 Kbit/s
Video resolutions The amount of detail that can be seen in the video image.	1280 x 720 pixels
Video codecs	H.264 High Profile, H.264, VP8
Video capturing speed	30 fps

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	4.2
Quality of Service (QoS) support
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
RJ-9 ports quantity	2

Certificates
Skype

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	2.5 W
Power consumption (Power over Ethernet (PoE))	7.6 W

Weight & dimensions
Width The measurement or extent of something from side to side.	259.4 mm
Depth The distance from the front to the back of something.	220 mm
Height The measurement of the product from head to foot or from base to top.	215 mm
