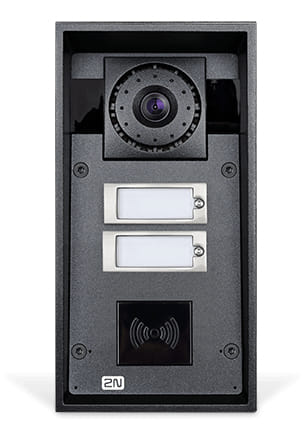

2N Telecommunications IP Force, Grey, IP69K, IK10, Buttons, Vertical, Outdoor
2N Telecommunications IP Force. Product colour: Grey, International Protection (IP) code: IP69K, IK code: IK10. Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base T(X), Supported network protocols: SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF. Maximum image resolution: 1280 x 960 pixels, Viewing angle, horizontal: 135 Deg , Viewing angle, vertical: 109 Deg . Outdoor unit power type: DC, Power consumption: 700 mA. Width: 109 mm, Depth: 83 mm, Height: 109 mm
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
 |
| Maximum number of cameras supported The total number of cameras that can be used with the product. | 1 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 1 |
| Speaker power | 10 W |
| Voice codecs | G.711, G.722, G.729 |
| Built-in microphone Microphone that is found inside the product. |
|
| Video codecs | H.263+, H.263, H.264, MJPEG |
| Number of buttons The quantity of buttons, which are small device on a piece of electrical or electronic equipment which are pressed to operate it. | 2 buttons |
| Backlight buttons |
|
| RFID reader |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP69K |
| Smartphone support |
|
| IK code | IK10 |
| Vandal-proof Product is designed to be installed in a location (or device) and application where they may be subject to vandalism or tampering. |
|
| Control type The way in which the device is controlled. | Buttons |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Vertical |
| Proper use The intended application of the product. | Outdoor |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP2.0, DHCP opt. 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, ONVIF |
| Camera | |
| Maximum image resolution Resolution is the amount of detail held by an image. The higher the resolution, the better (sharper) the image. The maximum image resolution produces the best image. | 1280 x 960 pixels |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 135° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 109° |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| Power | |
| Outdoor unit power type | DC |
| Power consumption | 700 mA |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -40 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 109 mm |
| Depth The distance from the front to the back of something. | 83 mm |
| Height The measurement of the product from head to foot or from base to top. | 109 mm |
| Packaging data | |
| Outdoor unit included |
|
| SKU | 713057 |
| MPN | 9151102CHRW |
| Brand | Axis |
| Product Condition | Brand New/Unused |
| Product Use | General |
