Axis IP Force, H.263, H.263+, H.264, Black, IP69K, Fast Ethernet, 10,100 Mbit/s, RTP/RTSP/HTTP

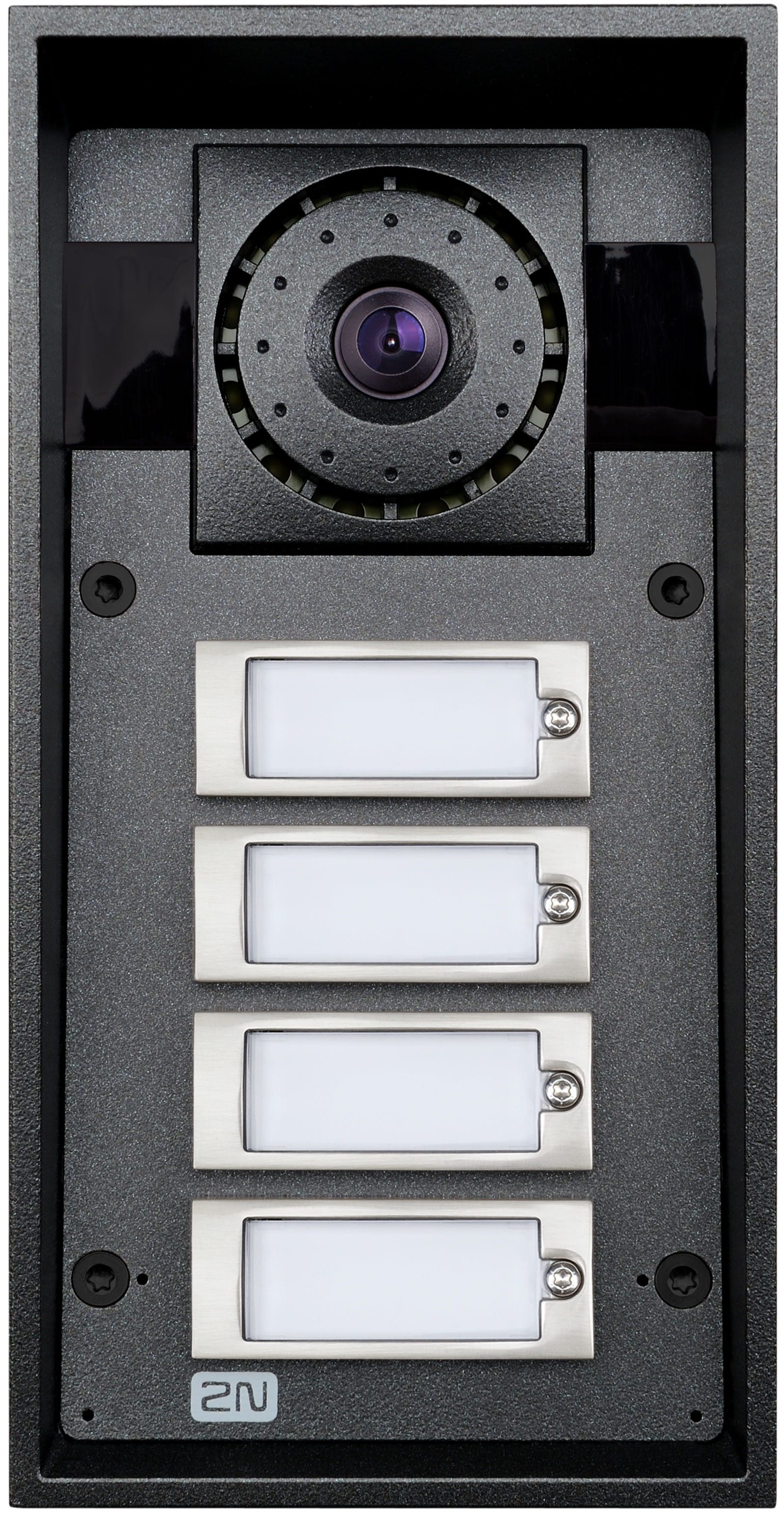

2N IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It provides for visitor communication monitoring and access control. Take advantage of its superior features for maximum site security.
| Technical details | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone. |
 |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| Maximum number of cameras supported The total number of cameras that can be used with the product. | 1 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Speaker power | 10 W |
| Voice codecs | G.711, G.722, G.729 |
| Built-in microphone Microphone that is found inside the product. |
|
| Number of buttons The quantity of buttons, which are small device on a piece of electrical or electronic equipment which are pressed to operate it. | 4 buttons |
| Display | |
| Video formats supported The type of video formats that can be used by this device. | H.263, H.263+, H.264 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP69K |
| LED indicators |
|
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | RTP/RTSP/HTTP |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af |
| Camera | |
| Maximum image resolution Resolution is the amount of detail held by an image. The higher the resolution, the better (sharper) the image. The maximum image resolution produces the best image. | 1280 x 960 pixels |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 640 x 480 pixels |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 3 mm (1 / 3") |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 135° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 109° |
| Night vision | |
| Night vision Night vision is technology which allows you to see in low light conditions. |
|
| LED type | IR |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 5 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 217 mm |
| Depth The distance from the front to the back of something. | 109 mm |
| Height The measurement of the product from head to foot or from base to top. | 83 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| Packaging data | |
| Outdoor unit included |
|
| SKU | 718988 |
| MPN | 9151104CHW |
| Brand | Axis |
