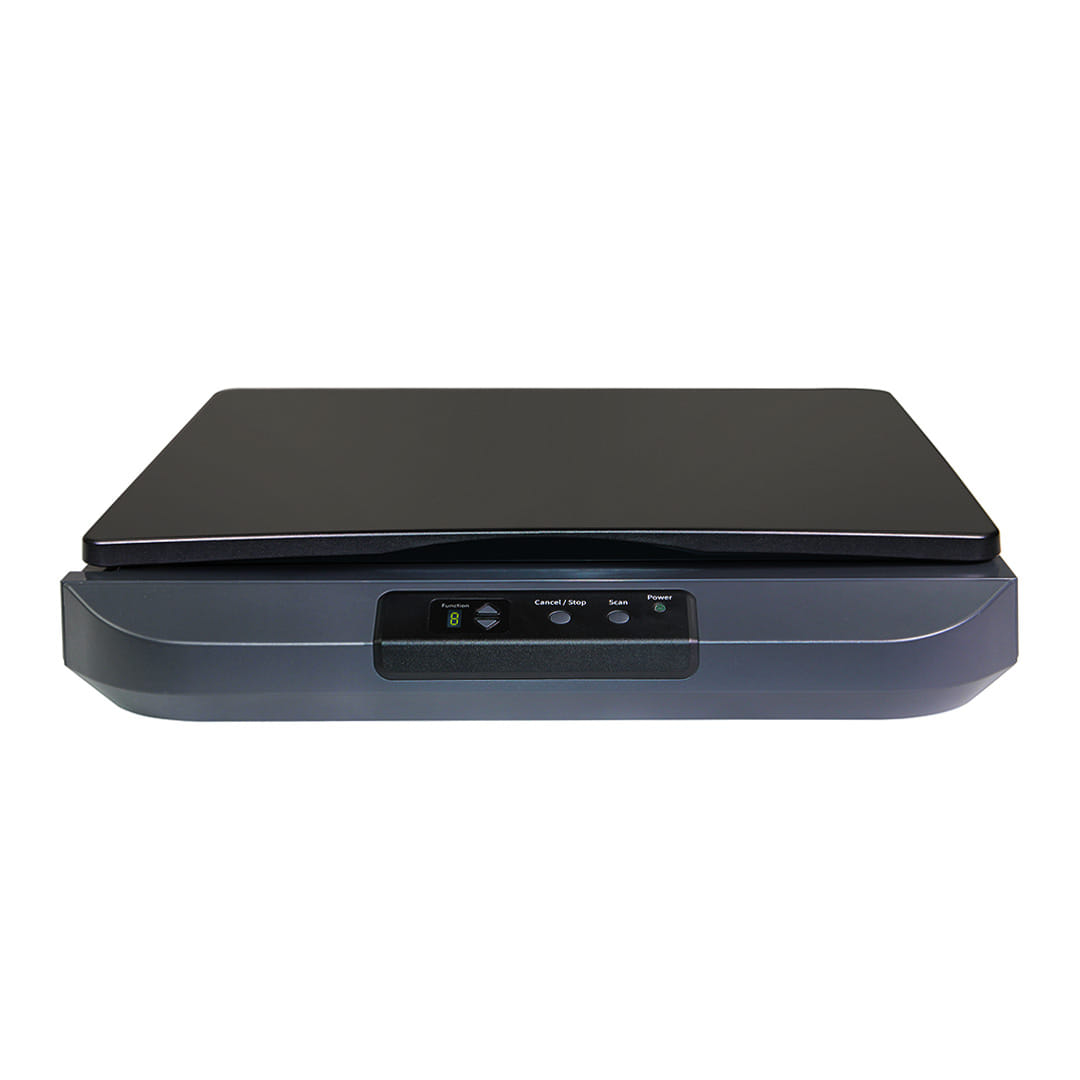

Avision FB5100, 297 x 420 mm, 600 x 600 DPI, 1200 x 1200 DPI, 48 bit, 24 bit, 16 bit
Avision FB5100 is a high-speed flatbed scanner that is able to scan an A3?Size document in color mode in 2 seconds. It is ideal for prepress, graphic designers, scrapbooking, maps, libraries, schools, small office/home office (SOHO) users and anyone that needs to scan A3 sized graphics and documents.
| Scanning | |
| Maximum scan size | 297 x 420 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Enhanced scan resolution | 1200 x 1200 DPI |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
 |
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| Scan speed (b/w, low res, A4) | 2 sec/page |
| Scan speed (colour, low res, A4) | 2 sec/page |
| Scan speed (b/w, high res, A4) | 2 sec/page |
| Scan speed (colour, high res, A4) | 2 sec/page |
| Design | |
| Scanner type Indicates the type of scanner this product is. | Flatbed scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Control type The way in which the device is controlled. | Buttons |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CIS |
| Light source | LED |
| Scan file formats | BMP, DOC, DOCX, GIF, HTML, JPEG, OCR, PDF, PNG, PPT, PPTX, RTF, TIFF, TXT, XLS, XLSX, XPS |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 2500 pages |
| Scan drivers | ISIS, TWAIN |
| Paper handling | |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A3 |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 30 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 10 W |
| Power consumption (PowerSave) | 2.9 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 585 mm |
| Depth The distance from the front to the back of something. | 500 mm |
| Height The measurement of the product from head to foot or from base to top. | 115 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.5 kg |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11, Windows 7, Windows 8 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| SKU | 807249 |
| MPN | FB5100 |
| Brand | Avision |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Flatbed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avision.com/ |
