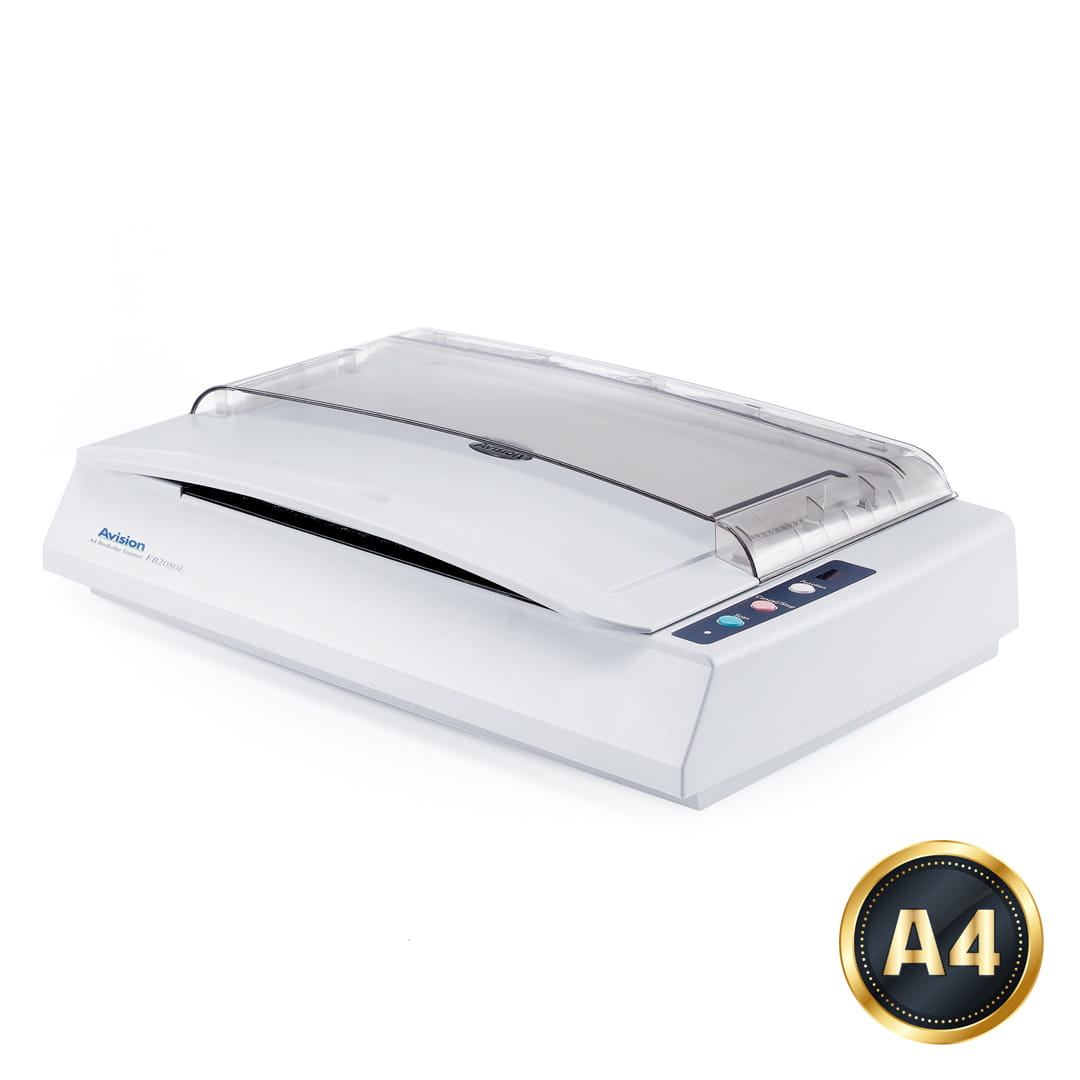

Avision FB2280E BookEdge Scanner A4 Flatbed
Leading Edge in Book Scanning
Avision&8217;s book edge Scanners feature a unique innovative Flatbed platform with a slanted front edge engineered to accommodate books in a way that prevents the dark shadowy area near the spine from appearing. Curved text often seen near the center is also eliminated since this special design allows pages to spread flat on the Scanner. Never again would you need to press the book against the Scanner which distorts the scanned Image and potentially damages the book. Avision makes book scanning a breeze
The Avision FB2280E is designed from the ground up to excel at scanning books. Packed with CCD Sensors and a 600 dpi optical resolution it can Produce high quality A4 scans in 4 seconds at 200 dpi in Black and White.
Another unique feature Of the FB2280E is the Document cover. with this cover you can temporarily place your Documents safely on the Scanner reducing the risk Of misplacing them during scanning.
An optional ADF add-on is available for the FB2280E with a 50 Sheet capacity and a maximum Document Size Of 21.6 x 36.5cm.
| Scanning | |
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
 |
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| Flatbed scan speed (b/w, A4) | 5.5 sec/page |
| Scan speed (colour, high res, A4) | 5.5 sec/page |
| Design | |
| Scanner type Indicates the type of scanner this product is. | Flatbed scanner |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Control type The way in which the device is controlled. | Buttons |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CCD |
| Light source | LED |
| Scan file formats | BMP, DOC, DOCS, GIF, HTML, JPEG, OCR, PDF, PNG, PPT, PPTX, RTF, TIFF, TXT, XLS, XLSX, XPS |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 2500 pages |
| Scan to | E-mail, Print, Software |
| Scan drivers | ISIS,TWAIN |
| Scanner error detection |
|
| Scanning noise level | 56 dB |
| Input capacity | |
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 50 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Photo paper, Plastic Card |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Legal |
|
| Auto Document Feeder (ADF) media weight | 49 - 120 g/m² |
| Maximum scan area (ADF) | 216 x 356 mm |
| Minimum scan area (ADF) | 114 x 139 mm |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 30 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 10 W |
| Power consumption (PowerSave) | 5 W |
| AC input frequency | 50/60 Hz |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Output voltage | 24 V |
| Output current | 2 A |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP |
| Operational conditions | |
| Operating temperature (T-T) | 50 - 95 °F |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 253 mm |
| Depth The distance from the front to the back of something. | 160 mm |
| Height The measurement of the product from head to foot or from base to top. | 55 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.5 kg |
| Packaging content | |
| Software CD |
|
| Cables included | AC, USB |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | TWAIN Driver, ISIS Driver, Button Manager, PaperPort, AVScan |
| Other features | |
| Output resolutions | 75, 100, 150, 200, 300, 400, 600, 1200 |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 613900 |
| MPN | FB2280E |
| Brand | Avision |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Flatbed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avision.com/ |
