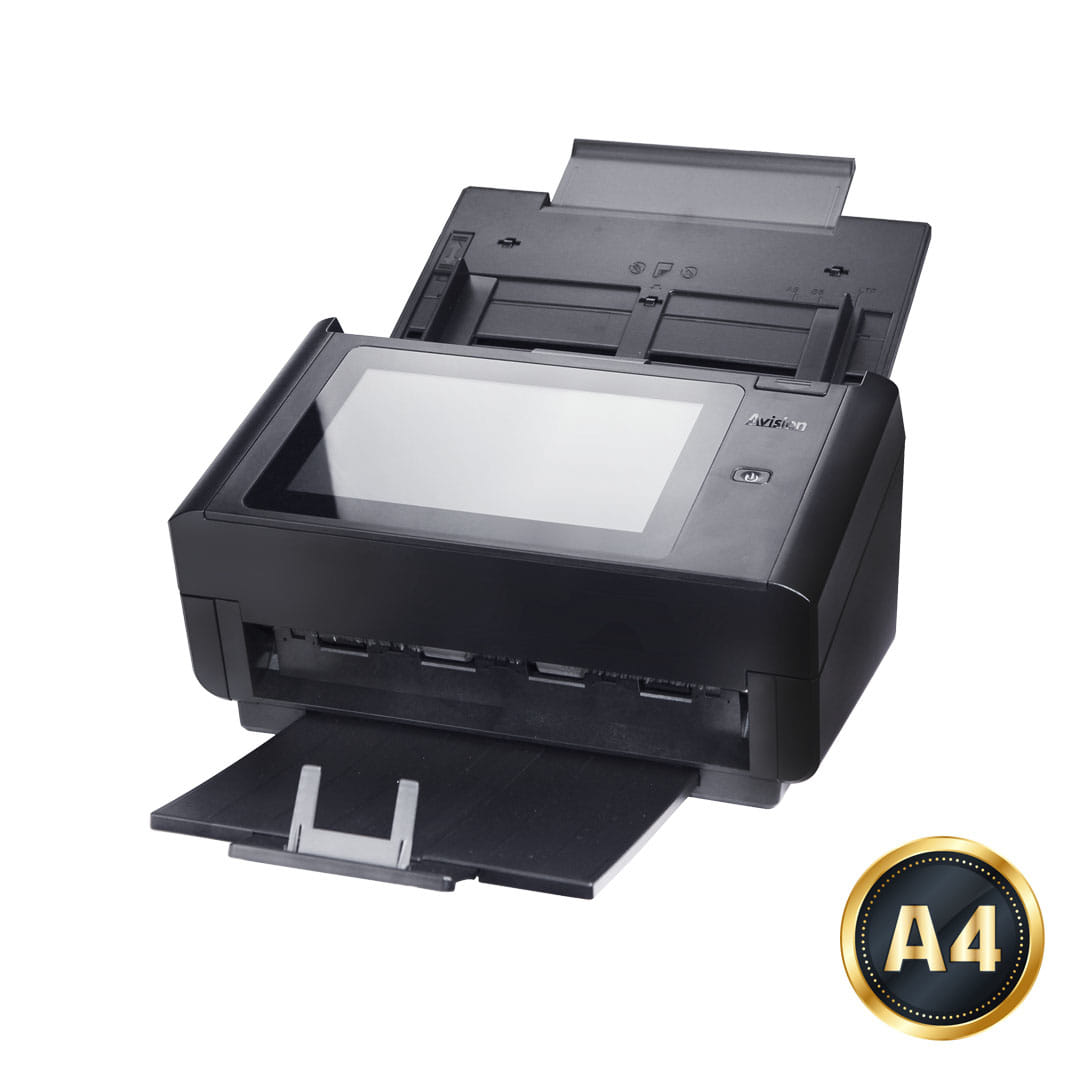

AN360W Series A Fast Affordable Network Scanner
Product Details
Easy-to-operate 8&8221; LCD Touch Screen
The Large 8&8221; LCD Touch screen makes it Easy for everyone to scan and share. By assigning your frequently used settings and scan to destinations as Shortcuts the AN360W Series allows you to streamline your workflow and complete your scanning task in one step. Configuration and management Of the Scanner can also be performed via the LCD Touch screen.
Convenient mobile scanning
Built-in with a Wi-Fi Dongle the AN360W Series can work as a Wireless device to scan and receive Images directly from your mobile devices through Avision&8217;s App.
Support form Document up to 242 x 356 mm 9.5 x 14 in.
The AN360W Series boasts a unique and innovative design in comparison with its predecessors - the ability to accommodate form Document up to 242 x 356 mm9.5 x 14 in.. the Extended Document width from Standard 216 mm 8.5 in. to242 mm 9.5 in. makes the AN360W Series more competitive to fit for a wider Range Of Documents.
Convenient walk-up scanning
A USB direct interface is available for scanning files to your USB flash memory drive.
A Duplex Scanner Suited for Document and Cards
Thanks to the advanced Straight Paper path and Image Processing Technology mixed batches Of Documents with varies sizes and weights can be scanned appropriately cropped deskewed and ready to use. Scan Size accepts Paper from receipts 50 x 50 mm/2&8221; x 2&8221; to Business Document 242 x 356 mm/9.5 x14 in.. the auto Document Feeder is also robust enough to Feed Paper up to 413 g/m2 110 lbs and embossed hard Cards such as ID Cards Credit Cards driver&8217;s license and health insurance Card up to 1.25mm in thickness.
Reverse Roller Enhances Feeding Reliability
Designed with the innovative reverse Roller for advanced Paper separation capability the AN360W Series delivers outstanding Feeding reliability and operating Productivity by effectively reducing the risk Of a Multi-feed or Paper jam.
Ultrasonic Multi-Feed Detection
With the Ultrasonic Multi-feed detection capability the Scanner allows you to Set overlapped Paper by detecting Paper thickness between Documents. The Ultrasonic function can be turned off when scanning Document with labels Sticky notes or taped receipts. This innovative design prevents double Feeding and effectively scans Documents Of different weights or thickness.
A Compact Design to Save Your Space
With a stylish design and a compact footprint Of 12.4 x 8.1 x 7 in. 316 x 207 x178 mm W x D x H the AN360W Series can be fit perfectly on a desk in any working environment.
Powerful Bundled Software Applications
The AN360W Series come with TWAIN driver and are bundled with a suite Of powerful software applications that include Avision Button Manager AVScan and Paper Port. with Button Manager you can create searchable PDFs scan and send Images to e-mail Printer or clouds Servers such as Google DriveTM Facebook or Evernote with just a simple press Of a Button. the AVScan and Paper Port are highly effective Image Processing and Document management software that helps you streamline your task more efficiently.
Features
lFast 60ppm / 120ipm scanning in color grayscale and monochrome AN360W 300 dpi color
lScanning and sending Images to e-mail a shared folder CIFS a FTP foldercloud Servers Google Drive Dropbox Evernote a USB flash drive and the Product&8217;s memory
lSupport form Paper up to 242 x 356 mm 9.5 x 14 in.
lOffer preview feature to view your Image result before distri
| Scanning | |
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| ADF scan speed (b/w, A4) | 60 ppm |
| ADF scan speed (colour, A4) | 60 ppm |
| Duplex ADF scan speed (b/w, A4) | 120 ipm |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Design | |
| Scanner type Indicates the type of scanner this product is. | ADF scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 20.3 cm (8") |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Control type The way in which the device is controlled. | Buttons, Touch |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CIS |
| Light source | LED |
| Scan file formats | BMP, DOC, DOCS, GIF, HTML, JPEG, OCR, PDF, PNG, PPT, PPTX, RTF, TIFF, TXT, XLS, XLSX |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 6000 pages |
| Scan to | CIFS, Cloud, E-mail, FTP, Print, USB |
| Button functions | Off, On |
| Scan drivers | TWAIN |
| Scanner error detection |
|
| Ultrasonic double sheet detection |
|
| Ultrasonic sensor |
|
| Scanning noise level | 55 dB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Input capacity | |
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 100 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Card stock, Plastic Card |
| Multi feed detection Detector stopping the scan process as soon as 2 pages are scanned together. |
|
| Long-paper mode |
|
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| Legal |
|
| Media thickness (min) | 1.25 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Maximum scan width | 24.2 cm |
| Maximum scan length | 6 m |
| Maximum scan area (ADF) | 216 x 356 mm |
| Minimum scan area (ADF) | 50 x 50 mm |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 36 W |
| Power consumption (off) | 0.12 W |
| AC input frequency | 50/60 Hz |
| Sleep mode |
|
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Power consumption (sleep) | 2.1 W |
| Output voltage | 24 V |
| Output current | 2 A |
| Auto power off The device switches itself off automatically after a certain activity, or after a certain time of inactivity. |
|
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 316 mm |
| Depth The distance from the front to the back of something. | 675 mm |
| Height The measurement of the product from head to foot or from base to top. | 254 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.2 kg |
| Folded width | 31.6 cm |
| Folded depth | 20.7 cm |
| Folded height | 17.8 cm |
| Packaging content | |
| Cables included | AC, USB |
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Button Manager, PaperPort, AVScan |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 613641 |
| MPN | AN360W |
| Brand | Avision |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Flatbed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avision.com/ |
