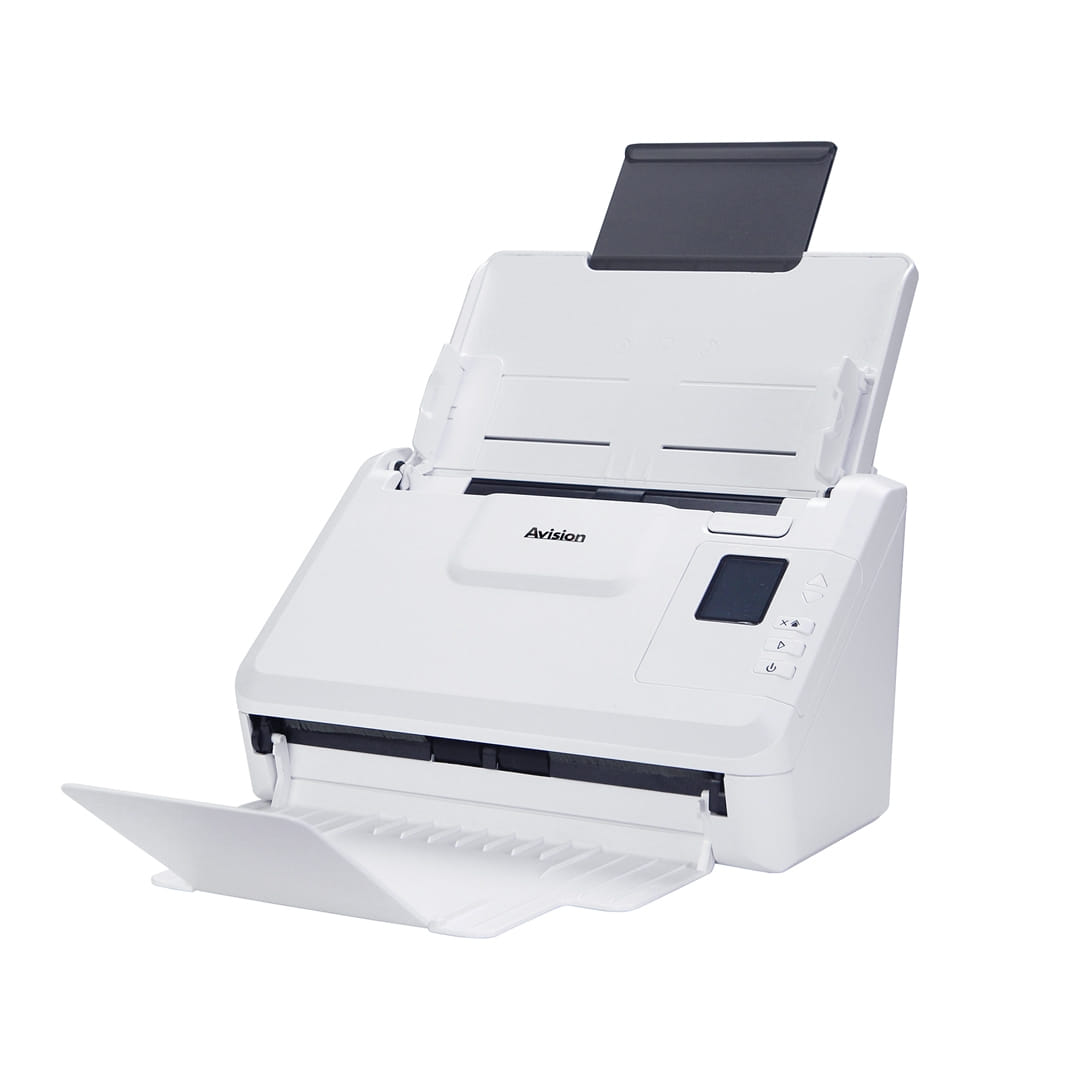

Avision AD340G, 216 x 356 mm, 600 x 600 DPI, 48 bit, 24 bit, 16 bit, 8 bit
The AD340GN is a 40ppm/80ipm, duplex sheetfed scanner that is fast, reliable, and affordable for business where scanning plastic ID cards, business cards, documents or other heavy card stock is necessary. Embedded with Avision-developed image processor , the scanned images can be automatically cropped, straightened, and ready to be used.
A network document scanner
With the network port at the back side, this product allows you to use it as a network scanner. This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer. What is best, the network scanner allows you to switch to other computers in the LAN, users in the LAN can really enjoy the scan and collect the image from their own computers
Convenient walk-up scanning
A flash USB drive and direct interface are available for scanning files to your USB flash memory drive.
High Optical Resolution of 600 dpi
With a high optical resolution of 600 dpi and advanced image processing technology, you can be assured documents can be converted in the highest image quality. In addition, with the build-in CIS (Contact Image Sensor) module, the AD340GN series do not require any warm-up time.
Color, and Graphical LCD Display
The AD340GN is easy to use through the clear and color 1.77" LCD display and buttons on the panel. By selecting your destination and pressing the Scan" button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.
Friction Roller Enhances Feeding Reliability
Designed with the innovative friction roller for advanced paper separation capability, the AD340GN delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.
Ultrasonic Multi-Feed Detection
With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
High-Volume Daily Duty Cycle
The scanner can be used to scan up to 8,000 pages per day through the 50-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.
Innovative Design to Save Your Space
The AD340GN boast a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD340GN can be easily carried and fit on a desk without taking up a lot of space.
Powerful Bundled Software Applications
The AD340GN comes with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google Drive™, Dropbox, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
A network document scanner
With the network port at the back side, this product allows you to use it as a network scanner. This means users in the intranet environment can share the scanner and obtain the scanned image from their individual computer. What is best, the network scanner allows you to switch to other computers in the LAN, users in the LAN can really enjoy the scan and collect the image from their own computers
Convenient walk-up scanning
A flash USB drive and direct interface are available for scanning files to your USB flash memory drive.
High Optical Resolution of 600 dpi
With a high optical resolution of 600 dpi and advanced image processing technology, you can be assured documents can be converted in the highest image quality. In addition, with the build-in CIS (Contact Image Sensor) module, the AD340GN series do not require any warm-up time.
Color, and Graphical LCD Display
The AD340GN is easy to use through the clear and color 1.77" LCD display and buttons on the panel. By selecting your destination and pressing the Scan" button, the scan can be done and the scanned image can be sent to your specified destination application such as e-mail, printer, or your favorable image-editing software application. Up to nine frequently used scan settings and destinations can be preset for different scanning needs.
Friction Roller Enhances Feeding Reliability
Designed with the innovative friction roller for advanced paper separation capability, the AD340GN delivers outstanding feeding reliability and operating productivity by effectively reducing the risk of a multi-feed or paper jam.
Ultrasonic Multi-Feed Detection
With the ultrasonic multi-feed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
High-Volume Daily Duty Cycle
The scanner can be used to scan up to 8,000 pages per day through the 50-page automatic document feeder. The data indicates that this scanner is designed to scan document in any application requiring frequent document and hard card scanning.
Innovative Design to Save Your Space
The AD340GN boast a unique and stylish design as both the input and output paper tray can be folded when not in use. The paper tray also helps to protect the unit from dust. Unlike bulky conventional scanners, the slim AD340GN can be easily carried and fit on a desk without taking up a lot of space.
Powerful Bundled Software Applications
The AD340GN comes with TWAIN and ISIS drivers, and are bundled with a suite of powerful software applications that include Avision Button Manager, AVScan , and PaperPort. With Button Manager, you can create searchable PDFs, scan and send images to e-mail, printer, or clouds servers such as Google Drive™, Dropbox, or Evernote® with just a simple press of a button. The AVScan and PaperPort are highly effective image processing and document management software that helps you streamline your task more efficiently.
| Scanning | |
| Maximum scan size | 216 x 356 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 48 bit |
| Output colour depth | 24 bit |
| Input greyscale depth | 16 bit |
| Output greyscale depth | 8 bit |
| Design | |
| Scanner type Indicates the type of scanner this product is. | ADF scanner |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 4.5 cm (1.77") |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CIS |
| Light source | LED |
| Scan file formats | BMP, DOC, DOCS, GIF, HTML, JPEG, OCR, PDF, PNG, PPT, PPTX, RTF, TIFF, TXT, XLS, XLSX, XPS |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 8000 pages |
| Scan drivers | ISIS, TWAIN, WIA |
| Ultrasonic double sheet detection |
|
| Scanning noise level | 52 dB |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 512 MB |
| Paper handling | |
| Scanning media types supported | Business Card, Plastic Card |
| Long-paper mode |
|
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents. | A4 |
| Card thickness (max) | 1.25 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 17 W |
| Power consumption (off) | 0.2 W |
| Power consumption (PowerSave) | 6 W |
| Sleep mode |
|
| Power consumption (sleep) | 1.9 W |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 282 mm |
| Depth The distance from the front to the back of something. | 457 mm |
| Height The measurement of the product from head to foot or from base to top. | 334 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.5 kg |
| Other features | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| SKU | 808301 |
| MPN | AD340G |
| Brand | Avision |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Slide/Sheetfed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avision.com/ |
