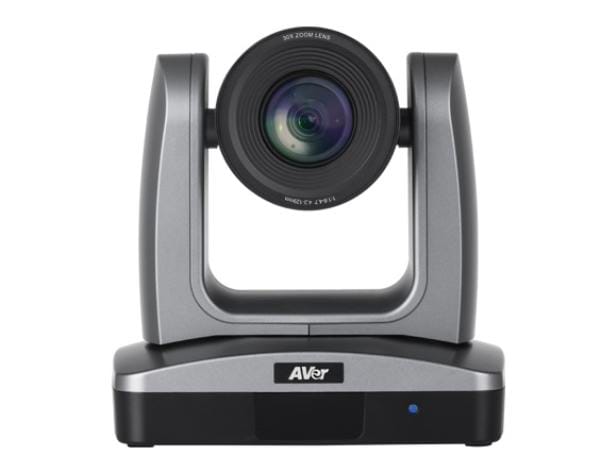

AVer PTZ330 Professional PTZ Camera Grey (FHD 1080p60, 30X Optical Zoom, 3GSDI, HDMI, USB, RJ45 IP)
AVer PTZ330 is equipped versatile functions to suite every classroom, hospital, or business. Creating the superior video quality, the PTZ330 makes you feel the action in a scene! Resounding image quality and a 30X optical zoom enable you to capture crystal-clear footage in any classroom, hall, or activity center. The PTZ330 provides outstanding image quality in full HD 1080p at 60fps. It also offers the best auto focus, auto exposure, and auto white balance performance. Always be prepared to capture every angle and change the recording view at a moment's notice with up to 255 preset locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control.
FHD 1080p60, 30X Optical Zoom, 3GSDI, HDMI, USB, RJ45 IP
Camera Image sensor: 1/2.8 inches 1080p 60fps Exmor CMOS
Optical Zoom 30X, Digital Zoom 12X
Pan/Tilt Angle: Pan: +/- 170 degrees; Tilt: +90 degrees / -30 degrees
Preset Position: 10 (IR), 255 (RS-232)
Camera Control - Interface: RS-232 (DIN9) / RS-422 (RJ45)
POE+ (IEEE 802.3at), Class 4
Horizontal Viewing Angle: 67 degrees (Wide) - 2.3 degrees (Tele)
Up to 255 Preset Locations through VISCA via RS232 and RS422 functionality, and 10 preset locations through IR remote control
Stable Motion Control: Fully optimize your recording with customizable speed settings from 0.1 degrees to 200 degrees p/s that maximize the agility and precision of pan/tilt rotation motion control
Fit Your FOV in Seconds: SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle
Warranty 3 Years
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 2.1 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Exmor |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 30x |
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 12x |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 4.3 - 129 mm |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.3 lx |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 50 dB |
| Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops. | 1.6 - 4.7 |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | Auto, Indoor, Manual, One push, Outdoor |
| Auto exposure |
 |
| Number of camera presets | 10 |
| Gain control type | Auto/Manual |
| PTZ control |
|
| Minimum working distance (wide) | 1 cm |
| Maximum working distance (tele) | 120 cm |
| Slowest camera shutter speed The maximum time which the camera shutter is open when taking a photo. | 1 s |
| Fastest camera shutter speed The minimum time which the camera shutter is open when taking a photo. | 1/3200 s |
| 3D NR (Noise Reduction) |
|
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 1920 x 1080 pixels |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Resolution at capture speed | 1280x720@50fps, [email protected], 1280x720@60fps, 1920x1080@25fps, [email protected], 1920x1080@50fps, [email protected], 1920x1080@60fps |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p |
| Video formats supported The type of video formats that can be used by this device. | H.264, M-JPEG, YUV |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Tilt angle range | -30 - 90° |
| Pan range | 170 - 170° |
| Web-based management Using a website/web application to manage something. |
|
| Tilt speed (min) | 0.1 °/sec |
| Tilt speed (max) | 100 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | Taiwan |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| RS-422 ports | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| 3G-SDI output |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| Power | |
| Power source type What the power source is. | AC, PoE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Performance | |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3at |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Network streaming The device supports network streaming. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA IP |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet. | 72 pc(s) |
| Harmonized System (HS) code | 8525890000 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 253 mm |
| Depth The distance from the front to the back of something. | 2530 mm |
| Height The measurement of the product from head to foot or from base to top. | 271 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.26 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 275 mm |
| Package depth The distance from the front to the back of the packaging. | 293 mm |
| Package height The distance from the top to the bottom of the packaging. | 525 mm |
| Package weight Weight of the packaged product. | 8 kg |
| SKU | 696959 |
| MPN | PTZ330 |
| Brand | Avermedia |
| Product Condition | Brand New/Unused |
| Product Use | General |
