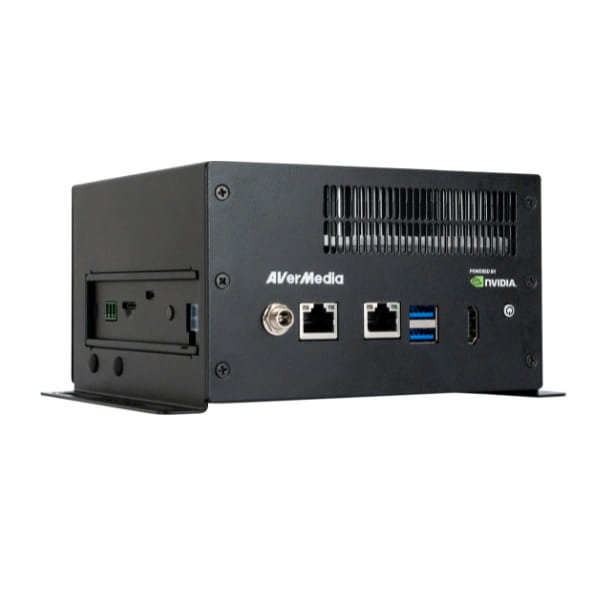

AVerAI AI Box PC D315AOB Equips NVIDIA Jetson AGX Orin 32GB Module
AVerMedia AI Box PC D315AOB built with NVIDIA Jetson AGX Orin module, which brings next level AI performance and power efficient capability for all autonomous machines. This efficient SoM makes advanced analytics possible while providing the ability to handle a host of other embedded IoT applications.
120 pin highspeed connector for MIPI SerDes cameras, such as GMSL 2 /FPD link III/V by One HS, to deploy in AMR application
1 x GbE 1 x 10 G RJ 45 3 x 10 G RJ 45 optional via PCIe slot) ethernet for dozens of IP cameras streaming simultaneously in smart security application
10 GigE Vision camera connector for smart inspection and 1 x PCIe slot for multi function expansion
1 x M 2 E key for Wi Fi 6 E, 1 x mPCIe for 4 G 5 G with adapter card, and 1 x M 2 M key for SSD and capture
Operating temperature 25 C 70 C ( 25 C~ 60 C fanless)
Dimension 145 mm(W) x 136 4 mm(L) x 88 mm(H) H)( TBD fanless)
| Storage | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
 |
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000 Mbit/s |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| USB ports quantity | 5 |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| DC input voltage | 12 - 54 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -25 - 65 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 40 - 95% |
| Certificates | |
| Certification | CE, FCC, KC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 181.5 mm |
| Depth The distance from the front to the back of something. | 137 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| SKU | 705287 |
| MPN | D315AOB |
| Brand | Avermedia |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avermedia.com/ |
