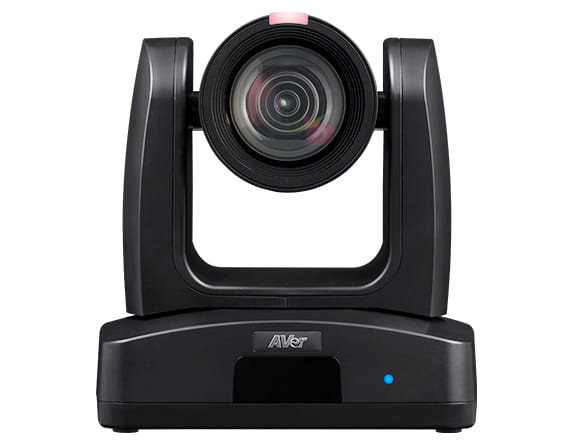

AVerMedia PTC310UV2, 8 MP, CMOS, 4K Ultra HD, 3840 x 2160 pixels, 30 fps, 12x
AI Auto Tracking PTZ Camera
The PTC310UV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Upgrade Your Cameras to NDI !
Upgrade your AVer cameras with NDI HX. A separate NDI HX license key is required for each camera, and internet connection is required for initial activation.
4K Output Resolution
Equipped with 4K resolution, the PTC310UV2 provides ultra-precise auto tracking. The PTC310UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
12X Optical Zoom & 12X Digital Zoom
The zoom power of PTC310UV2 camera reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310UV2.
Human Detection AI
Welcome AVer s most advanced AI tool yet "Human Detection. This highly accurate processing function enables PTC310UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
Redirect focus in an instant with the PTC310UV2. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter s movements.
Hybrid Mode
Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.
The PTC310UV2 AI Auto Tracking PTZ Camera makes powerful and reliable Pro AV capability available to everyone. Drawing inspiration from the AVer Professional PTZ Camera family, the PTC310UV2 features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording. Your exciting journey of audio and video capturing starts here!
Upgrade Your Cameras to NDI !
Upgrade your AVer cameras with NDI HX. A separate NDI HX license key is required for each camera, and internet connection is required for initial activation.
4K Output Resolution
Equipped with 4K resolution, the PTC310UV2 provides ultra-precise auto tracking. The PTC310UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
12X Optical Zoom & 12X Digital Zoom
The zoom power of PTC310UV2 camera reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310UV2.
Human Detection AI
Welcome AVer s most advanced AI tool yet "Human Detection. This highly accurate processing function enables PTC310UV2 to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
Redirect focus in an instant with the PTC310UV2. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.
Presenter Mode
Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter s movements.
Hybrid Mode
Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 8 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.8 mm (1 / 2.8") |
| Effective sensor resolution | 8 MP |
| Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera. | 12x |
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 12x |
| Optical zoom (super-wide mode) | 144x |
| Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′). | 3.9 - 46.8 mm |
| Horizontal field of view (wide) | 70° |
| Horizontal field of view (tele) | 6° |
| Vertical field of view (wide) | 42° |
| Vertical field of view (tele) | 3° |
| Minimum illumination Also known as light sensitivity, this is the smallest amount of light needed for the camera to produce an image of useable quality. | 0.5 lx |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 50 dB |
| Flip & mirror |
 |
| Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops. | 1.6 - 2.8 |
| White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly. | ATW, Auto, Manual, One push |
| Auto exposure |
|
| Light exposure modes The different lengths of time for the exposure for a camera e.g. longer exposure for low light. | Auto, Manual, Shutter priority AE |
| Wide Dynamic Range (WDR) |
|
| Back Light Compensation (BLC) |
|
| Number of camera presets | 10 |
| Gain control type | Auto/Manual |
| PTZ control |
|
| PTZ protocols | Pelco-P/D, VISCA |
| Slowest camera shutter speed The maximum time which the camera shutter is open when taking a photo. | 1 s |
| Fastest camera shutter speed The minimum time which the camera shutter is open when taking a photo. | 1/32000 s |
| 3D NR (Noise Reduction) |
|
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Supported video modes The video modes that can be displayed by the device. | 720p, 1080i, 1080p, 2160p |
| Video formats supported The type of video formats that can be used by this device. | H.264, H.265, M-JPEG, YUY2 |
| Number of TV lines | 1400 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| Tally light |
|
| Tilt speed (min) | 0.1 °/sec |
| Tilt speed (max) | 100 °/sec |
| Tilt preset speed | 200 °/sec |
| Pan speed (min) | 0.1 °/sec |
| Pan speed (max) | 100 °/sec |
| Pan preset speed | 200 °/sec |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| 3G-SDI output |
|
| Microphone in The socket where a microphone is connected to the device. |
|
| Line-in |
|
| Power | |
| Power source type What the power source is. | AC |
| AC input frequency | 50 - 60 Hz |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| DC input voltage | 12 V |
| Input current | 5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 19 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 95% |
| Operating altitude | 0.3 - 1.5 m |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | AC, RS-232 |
| Screws included |
|
| Number of screws | 8 |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Mounting kit |
|
| AC adapter included |
|
| Cable ties included |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 11, Windows 7, Windows 8 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15 |
| Performance | |
| Live video preview |
|
| Auto-tracking |
|
| Tracking modes | Presenter mode, Zone mode |
| Remote control type | IR |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Audio | |
| Audio channels | 2 |
| Audio codecs | AAC-LC, PCM |
| Network | |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Bit rate range | 512 - 32000 Kbit/s |
| Network configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 192 mm |
| Height The measurement of the product from head to foot or from base to top. | 145 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2 kg |
| SKU | 696956 |
| MPN | PTC310UV2 |
| Brand | Avermedia |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avermedia.com/ |
