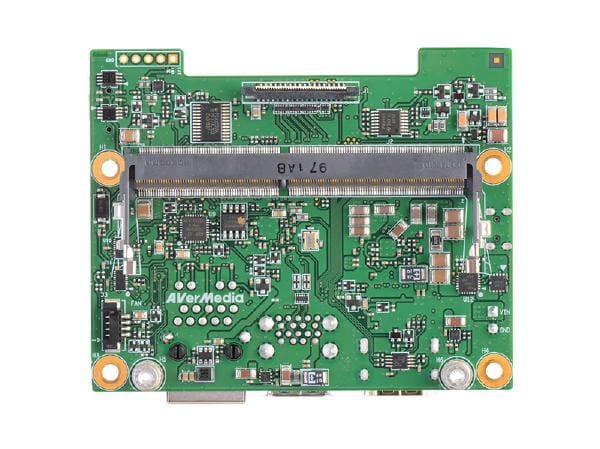

Standard Carrier Board for NVIDIA Jetson Nano (Version B01)/Xavier NX Module
Fully support NVIDIA Jetson Nano (Version B01)/Xavier NX module
1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
2x 2 Lane MIPI CSI-2
1x 4 Lane MIPI CSI-2
20-pin Expansion header
1x micro-SD card slot
Dimension: W:87mm x L:70.6mm x H: 27.3mm
| Ports & interfaces | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | Gigabit Ethernet |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 3 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| GPIO interface |
|
| Features | |
| Certification | CE, FCC, KC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Board dimensions | 87 x 70.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 27.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 70 g |
| SKU | 576597 |
| MPN | EN715-BBC3 |
| Brand | Avermedia |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.avermedia.com/ |
