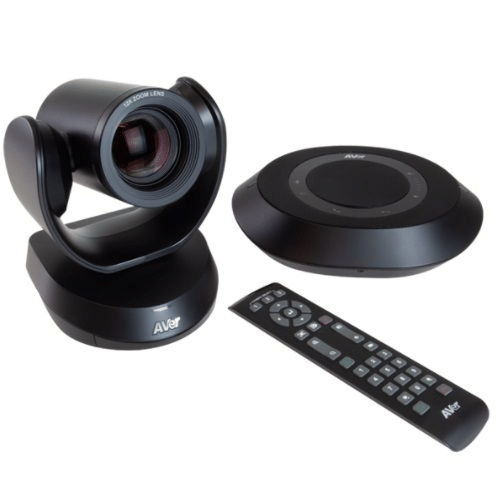

AVer VC520 Pro2 Enterprise conference system for mid-to-large rooms

Camera
Camera type There are a number of common types of digital cameras: compact cameras, bridge cameras, mirrorless interchangeable-lens cameras (MILC) and single lens reflex (SLR) cameras. Bridge cameras 'bridge the gap' between the low-end compact and high-end professional (SLR) cameras. Also MILCs populate this mid-segment by combining the larger sensors and interchangeable lenses of DSLRs with the live-preview viewing system of compact cameras.	Single camera
Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card.	2 MP
Optical zoom Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.	12x
Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology.	12x
Combined zoom	24x
Focal length range Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).	3.9 - 47.3 mm
Field of view (FOV) angle	84.5°
Horizontal field of view	76°
Vertical field of view	48°
Flip & mirror
Aperture range (F-F) Aperture range of the device's optics, expressed in f-stops.	1.8 - 2.8
White balance Technique in photography and image processing, which involves a global adjustment of the intensities of the colors (typically red, green, and blue primary colors). An important goal of this adjustment is to render specific colors – particularly neutral colors including white – correctly.	Auto, Manual
Light exposure modes The different lengths of time for the exposure for a camera e.g. longer exposure for low light.	Auto
Closest focusing distance	1.5 m
Wide Dynamic Range (WDR)
Number of camera presets	10
PTZ protocols	UAC, Pelco-P/D, UVC, VISCA

Video
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	Full HD
Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible.	1920 x 1080 pixels
Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz).	60 fps
Video formats supported The type of video formats that can be used by this device.	H.264, M-JPEG, NV12, YUV, YUY2
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	320 x 240, 424 x 240, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 448, 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080)

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Mounting type Type of mounting e.g. wall mounting.	Stand/Wall mounting
Tilt angle range	-30 - 90°
Pan range	-170 - 170°
Web-based management Using a website/web application to manage something.

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.
VISCA input ports	1
DIN connector
DIN connector type	9-pin

Power
Power source type What the power source is.	DC
AC input frequency	50 - 60 Hz
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
DC input voltage	12 V
Input current	5 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Cables included	Camera to speakerphone, AUX, AC, USB
USB cable length	5 m
Power cable length	1.8 m
Screws included
AC adapter included
Mounting brackets included
Packaging content	Speakerphone, QR code card, 1/4" tripod screw

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 11, Windows 7
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Minimum processor family	Core i5
Minimum processor speed	3.2 GHz
Minimum processor The lowest speed that the computer processor can run at, or the minimum amount of processing capacity that can be used, for the computer and particular program(s) to function.	Intel Core i5-4460
Minimum RAM The lowest RAM (memory) required to run a computer program or operating system.	4096 MB

Performance
Auto framing
Remote control function
Remote control type	IR
Tripod mounting supported
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Certification	Zoom, Skype for Business, Microsoft Teams, ClickShare, RingCentral

Audio
Number of microphone arrays	2
Noise reduction
Audio codecs	AAC-LC

Technical details
Warranty period	3 year(s)

Network
Streaming capability
Network streaming The device supports network streaming.

Logistics data
Harmonized System (HS) code	85258900

Weight & dimensions
Speaker dimensions (WxDxH)	220 x 181.5 x 49.5 mm
Remote control dimensions (W x H x D)	200 x 50 x 21 mm
Width The measurement or extent of something from side to side.	153 mm
Depth The distance from the front to the back of something.	142.7 mm
Height The measurement of the product from head to foot or from base to top.	182 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.45 kg

Packaging data
Package width The distance from one side of the packaging to the other.	259 mm
Package depth The distance from the front to the back of the packaging.	259 mm
Package height The distance from the top to the bottom of the packaging.	349 mm
Package weight Weight of the packaged product.	5.4 kg
