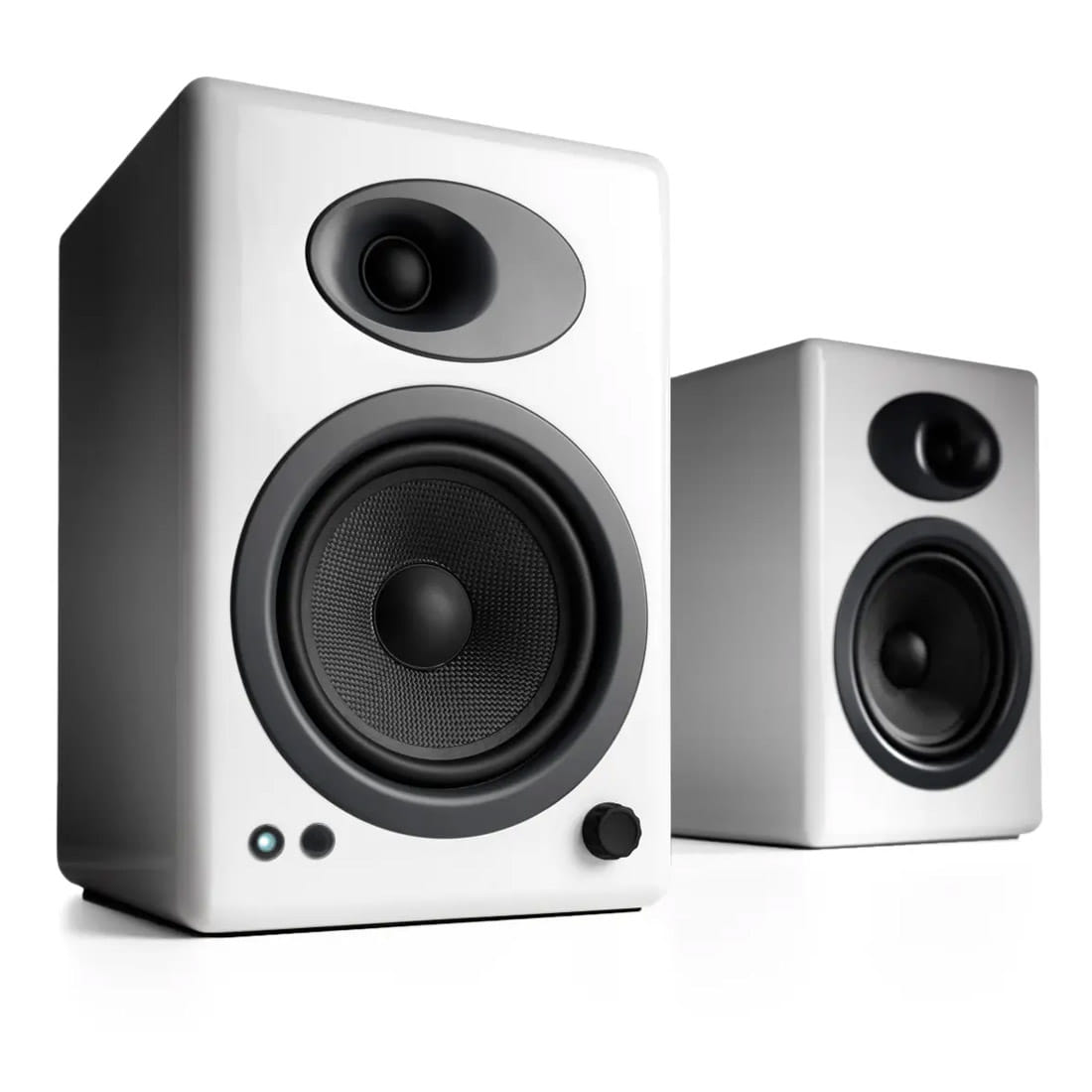

Audioengine A5 Classic Powered Bookshelf Speakers Hi Gloss White
They output up to 100W of total RMS power and are equipped with a 12 cm aramid fiber glass composite woofer and a 2 cm silk dome tweeter to provide full range audio.
- Built in power amplifiers
- Remote control
- Improved thermal management
- Front panel volume control
- Full size 5 way speaker binding posts
Audioengine A5 Classic Powered Bookshelf Speakers Hi Gloss White
- Cabinets
To minimize unwanted resonances and distortion, Audioengine cabinets have 1 cm thick high resin MDF walls with extensive internal bracing. Heavy internal sound damping material is used to reduce unwanted sound reflections inside the cabinet. All cabinet edges are rounded which look great and reduce high frequency diffraction effects on the front baffles. - Furniture Grade Finish
The A5 cabinets are available in several handsome finishes, offering a wide choice for complementing room furnishings. - Custom Components
Audioengine designs and manufactures their own tweeters, woofers, and other critical components. In other words, these are not "box built" speakers with off the shelf parts, but custom designed to their specifications. What they do not fabricate directly in their factory is made to their designs (parts such as transformers, magnets, and wiring harnesses, for example). The cabinets, drivers, bass port designs, amplifiers, and crossovers are all painstakingly tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires much less power than passive speakers and a separate integrated amplifier or similar A/V components. - Based on Studio Monitor Designs
Studio monitor speakers are used by producers and engineers in recording and production studios. They are designed with a theoretical flat frequency response, which allows the engineer to create a final mix in such a way that the recorded music will sound good on most other speakers. Although Audioengine speakers are not designed to be up close, or "nearfield" studio monitors, they carry over much of the same higher end technology, components, and design philosophy for all Audioengine speaker systems. - Efficient Integrated Design
The speaker cabinets, drivers, innovative bass port designs, amplifiers, and passive crossovers are all critically tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components. They build all this goodness into the left speaker cabinet to make it super easy to connect your smartphone, tablet, computer, TV, network player, or any other audio product. - USB Power
The Audioengine A5 includes a 5V, 500mA USB power supply for charging portable devices while listening to your music. The USB connector allows you to charge and power your smartphone, tablet, Audioengine wireless adapters, or any other USB powered product. USB is for power only, not USB audio or data transfer. - Amplifier Design
The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively rated class A/B analog monoblock design. This is a more traditional speaker/amplifier marriage which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection. - Driver Designs
Audioengine uses audiophile quality, ferrofluid cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power, and the edge driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means that the woofer retains its shape when being driven at high levels. The speaker materials and construction are robust enough to stand up to some serious thrashing, so speaker grilles are not needed and they will sound and look great after many years of use. - Shielding
Both drivers are directly video shielded and allow you to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard drive digital music players. - Power Transformers
Power transformers are a large contributor to the overall audio performance, especially in the low end. Again, no off the shelf parts. Audioengine uses gapless core toroidal transformers which have a tighter radiated magnetic field, directly translating to lower noise. They are lighter than standard, lower cost transformers and also generate less heat.
- Audioengine A5 Classic Powered Bookshelf Speakers Hi Gloss White
- Remote Control
- 3 m 16 AWG Speaker Wire
- 0.16 m 3.5mm Audio Cable
- 0.16 m Stereo RCA Audio Cable
- 2 x Cloth Speaker Bags
- Cloth Cable Bag
- Detachable AC Power Cord
- Quick Start Guide
| Loudspeakers | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Speaker placement The position of the speaker. | Tabletop/bookshelf |
| Tweeter Loudspeaker designed to reproduce high frequencies. |
|
| Tweeter diameter | 2 cm |
| Woofer Loudspeaker designed to reproduce low frequencies. |
|
| Woofer diameter (imperial) | 12.7 cm (5") |
| Magnet type Type of magnet e.g. neodymium. | Neodymium |
| Audio | |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 50 W |
| Peak Music Power Output (PMPO) | 150 W |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 50 - 22000 Hz |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 95 dB |
| Total Harmonic Distortion (THD) Total harmonic distortion is a measure of non-linear harmonic distortion and is given in %. Non-linear harmonic distortions are signals which were not present in the original before the signal was converted by the headphones. These unwanted signals are caused by the diaphragm, whose movements do not precisely move in time with the electric signals that cause it to move. Unfortunately, this is a feature of all electroacoustic transducers. Although it cannot be completely eliminated, suitable steps can be taken to minimise it. However, the user is not interested in why this distortion takes place but in how great the level of distortion must be for it to become perceptible. According to the findings of several research projects, a total harmonic distortion of 1% in the frequency range of 100 to 2000 Hz is imperceptible. Below 100 Hz, the perceptibility threshold lies at 10%. | 0.05% |
| Performance | |
| Recommended usage What the product should be used for, and how it should be used (e.g. ambient temperature). | Universal |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Remotely operated The device can be controlled by remote control, which is a device that controls an apparatus by means of radio or infrared signals. |
|
| Suitable for outdoor use Product can be used outdoors. |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Amplifier | |
| Amplifier Electronic device for increasing the amplitude of electrical signals, used chiefly in sound reproduction. | Built-in |
| Amplifier class An electronic amplifier, amplifier, or (informally) amp is an electronic device that increases the power of a signal. It does this by taking energy from a power supply and controlling the output to match the input signal shape but with a larger amplitude. Power amplifier circuits (output stages) are classified as A, B, A/B and C for analog designs, and class D and E for switching designs based on the proportion of each input cycle (conduction angle), during which an amplifying device is passing current. | A/B |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| 3.5 mm connector |
|
| AC (power) in |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 115 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 4 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 270 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11.4 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm) |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Other features | |
| Equalizer Device that attempts to reverse the distortion incurred by a signal transmitted through a channel. |
|
| Travel pouch |
|
| SKU | 709196 |
| MPN | AUD-5PC-WHT |
| Brand | Audioengine |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://audioengine.com/ |
