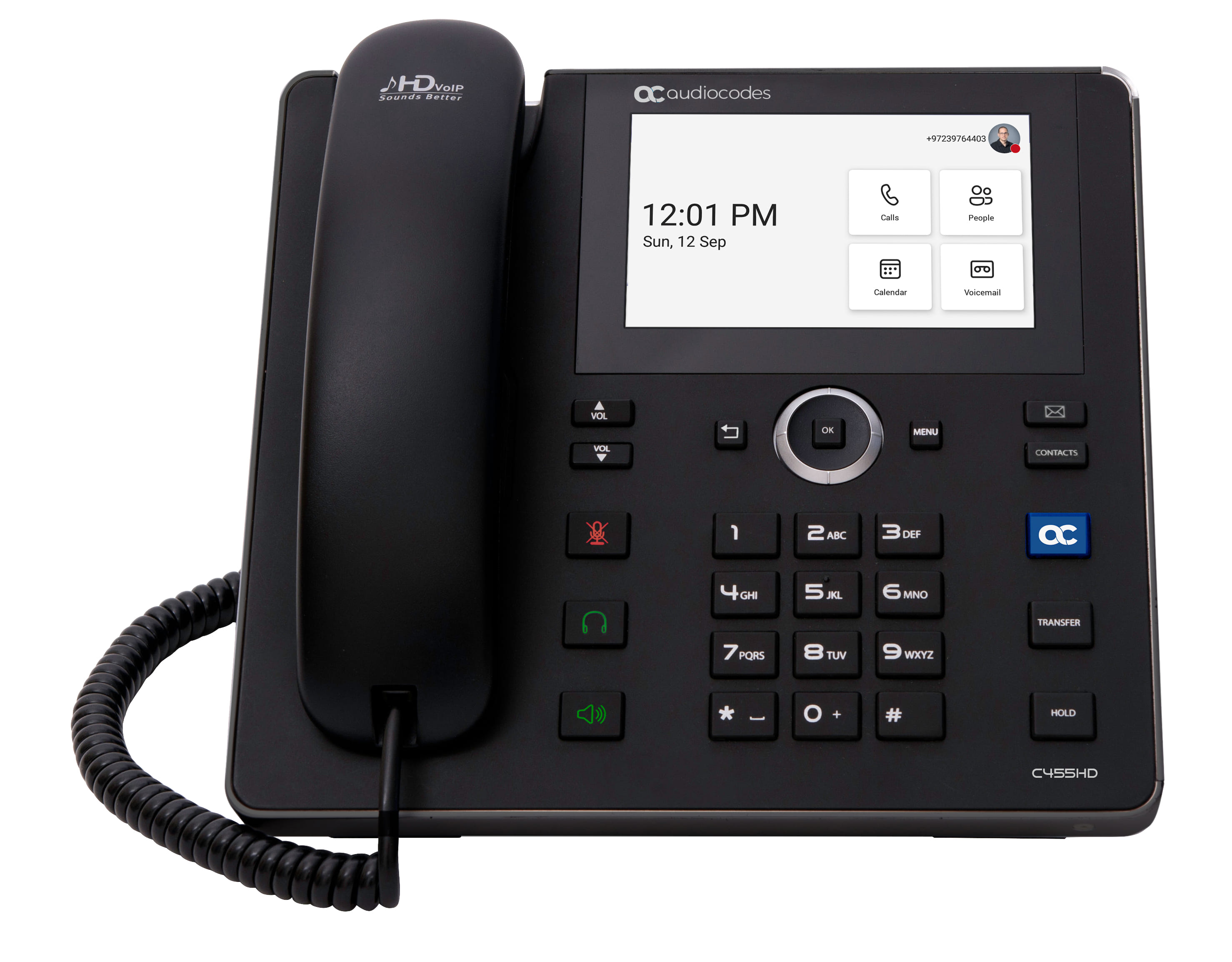

AudioCodes POE GBE Bluetooth Dual Band Wi-Fi IP Phone

Design
Product type The sub-category of the product.	IP Phone
Handset type	Wired handset
Product colour The colour e.g. red, blue, green, black, white.	Black
Wall mountable The product can be mounted on (attached to ) a wall.

Performance
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	9
Dual-Tone Multi-Frequency (DTMF) modes	SIP info

Phone features
Lines quantity The number of lines in the phone.	8 lines
Answering machine The product contains an answering machine where you can leave messages if the phone is unanswered/engaged (busy).
Call waiting
Speed dialling
Call hold
Call forwarding
Conference call
Redialing
Do not disturb function
Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it.
Call park
Call pick up
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Call transfer
Message-waiting indicator (MWI)

Management features
Integrated voicemail
Volume control	Buttons
Number of programmable keys	8
Firmware upgradeable

Display
Display The description of display that can includes display type, resolution, size etc.	TFT
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	12.7 cm (5")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1280 x 720 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.

Audio
Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone.
Microphone mute
Voice codecs	G.711Mu, G.711a, G.722, G.729A, G.729B, OPUS
Echo cancellation
Voice activity detection
Adaptive jitter buffers
Packet loss concealment (PLC)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	4.2
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, RTCP-XR, 802.1x, IP/DHCP IP, IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN, LDAP
Quality of Service (QoS) support
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS, SRTP, SSL/TLS
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
RJ-9 ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.
WAN connection type	RJ-45
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Certificates
Sustainability compliance
Sustainability certificates	Federal Communications Commission (FCC)

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
AC adapter input voltage	100 - 240 V
AC adapter output voltage	12 V
AC adapter output current	2 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 70 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	236 mm
Depth The distance from the front to the back of something.	200 mm
Height The measurement of the product from head to foot or from base to top.	165.9 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	988 g
Height (min) The minimum distance from the top to the bottom of the product.	17 cm
Height (max) The maximum distance from the top to the bottom of the product.	19.5 cm
Package width The distance from one side of the packaging to the other.	280 mm
Package depth The distance from the front to the back of the packaging.	245 mm
Package height The distance from the top to the bottom of the packaging.	110 mm
Package weight Weight of the packaged product.	1.55 kg

Packaging content
Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled.	1 pc(s)
Manual
Cables included	LAN (RJ-45)
AC adapter included

Logistics data
Master (outer) case gross weight	14.5 kg
Master (outer) case length	467 mm
Master (outer) case width	579 mm
Master (outer) case height	291 mm
